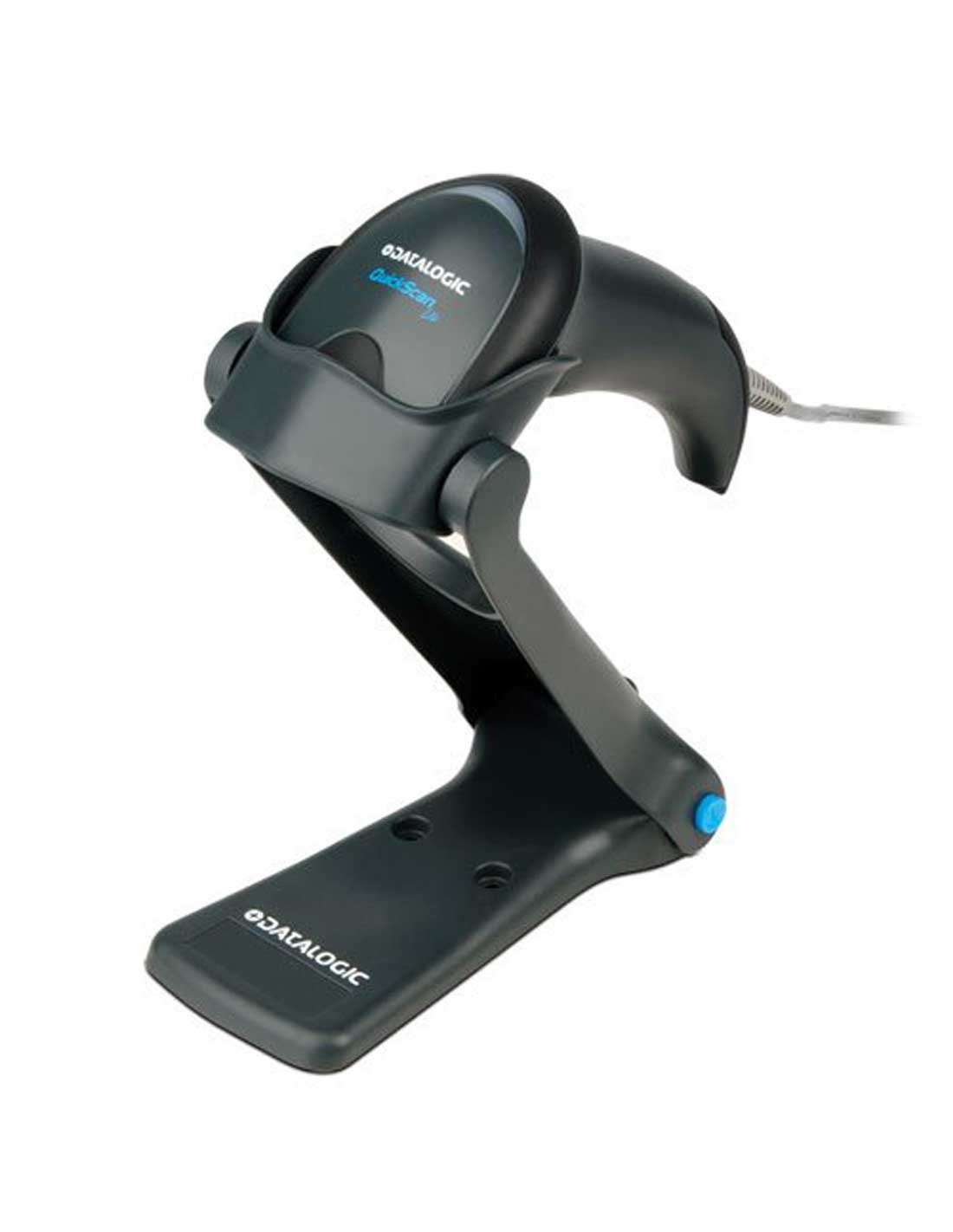

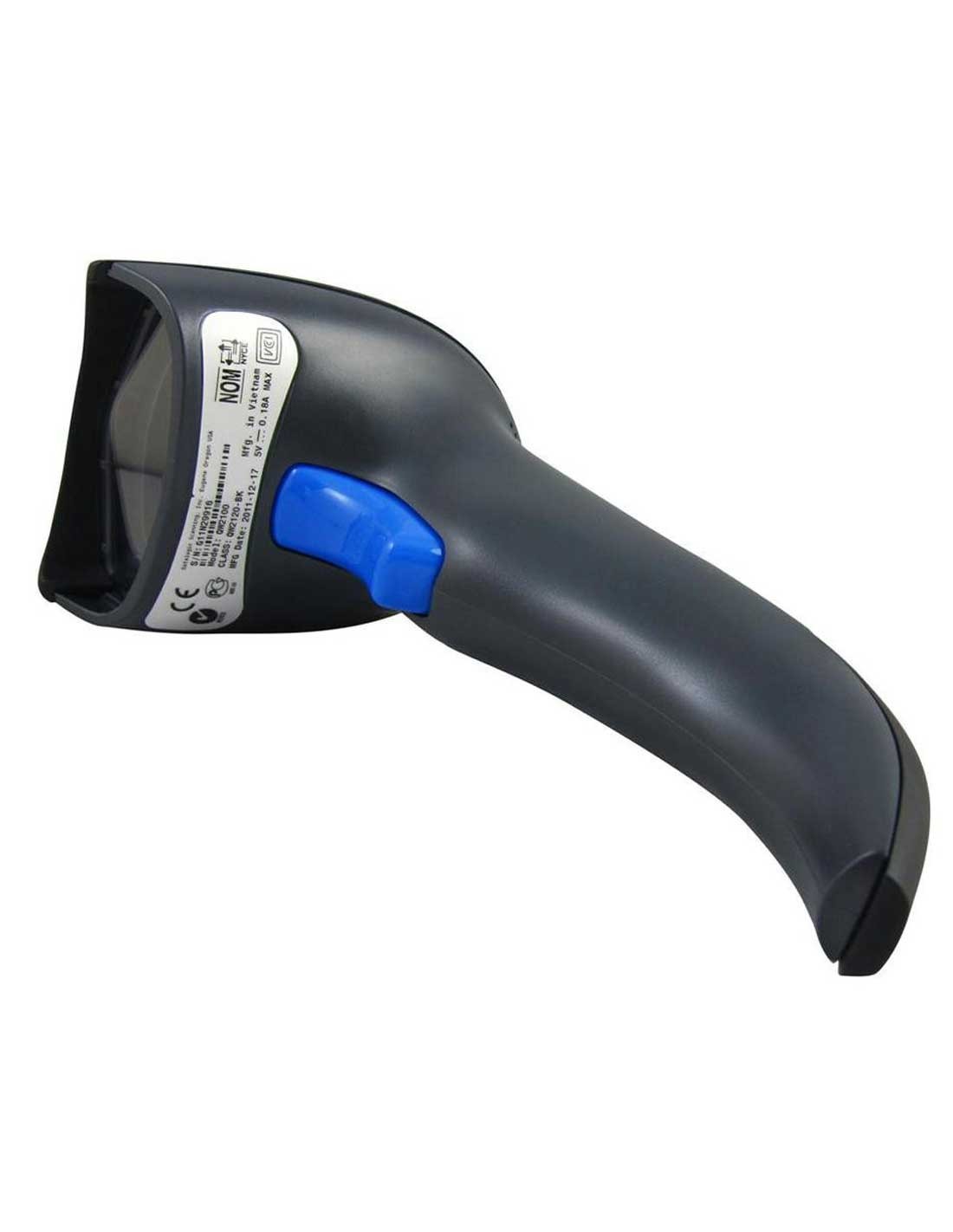

Datalogic QW2100 Barcode Scanner Technical Specification
| Brand | Datalogic |
| Model | QW2100 |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | 1D Linear Imager |
| Interface | QW2170-BK: RS-232 / Keyboard Wedge |
| QW2120-BK: USB | |
| Light Source | Red LED 610-650 nm |
| Resolution | 4 mils |
| Depth of Scan Field | Minimum distance determined by symbol length and scan angle. |
| Printing resolution, contrast, and ambient light dependent. | |
| 5 mils : 2.5 to 15.0 cm / 1.0 to 6.0 in | |
| 7.5 mils : 0 to 24.0 cm / 0 to 9.4 in | |
| 10 mils: 0 to 35.0 cm / 0 to 13.8 in | |
| 13 mils: 0 to 40.0 cm / 0 to 15.7 in | |
| 20 mils: 0 to 60.0 cm / 0 to 23.6 in | |
| Pitch | ±65 degree |
| Roll | ±45 degree |
| Yaw | ±70 degree |
| Scan Speed | 400 reads/sec |
| Print Contrast Ratio (Minimum) | 25% |
| Color | Black |
| Dimensions | 17.018 x 6.35 x 6.858 cm (6.70″ x 2.50″ x 2.70″) |
| Weight | 0.12 kg (0.26 lb) |
