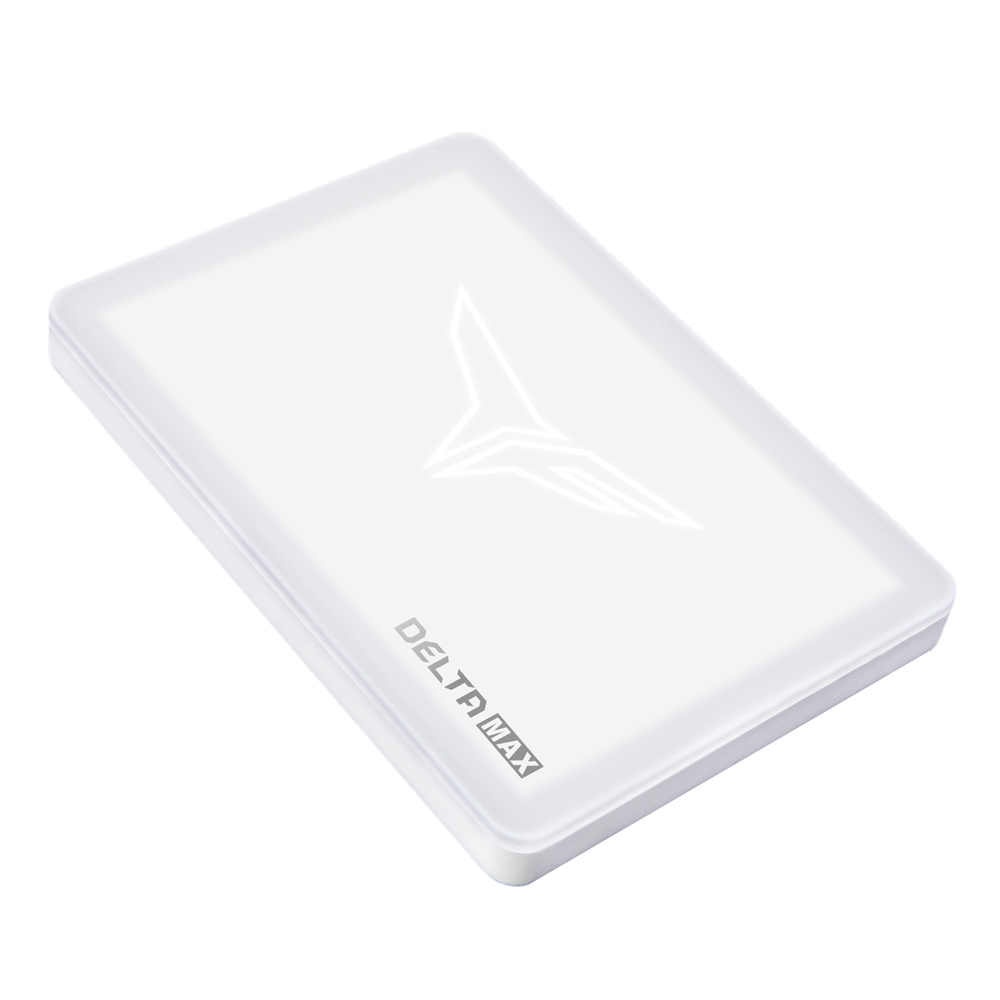

Beautiful magic mirror
With largest full mirror sputtering process, it presents unreal lighting effects. It’s the top choice for DIY enthusiasts and gamers when it comes to SSD.
Smart lighting effect switch
When gamer is installing a non-RGB motherboard, it can be presented through the included USB 2.0 9pin connector. It has built-in water flowing lighting with RAINBOW mixed color effect. When installing an RGB motherboard, the customized RGB gaming style can be presented by connecting the included 5V 3pin connector and the motherboard software.
Stylish mirror with outstanding performance
Having 2.5″ with 9.5mm in thickness, it can be installed in all types of gaming cases. Uses SATA III 6Gbps interface and read/write speeds up to 550MB/s. Also offers a large 1TB capacity option for avid gamers.
3D tough protection
The 3D NAND flash memory chip is durable, shockproof and able to offer comprehensive solid protection for the data, so gamers can enjoy the game without any worries.
Smart optimization
Built-in smart algorithm management mechanism
The garbage collection function can ensure operation efficiency. The powerful Wear-Leveling technology and ECC (Error Correction Code) function improve the reliability of data transfer. It supports Windows TRIM optimization command which is able to release free blocks, allowing the operating system to use them immediately when writing data. The optimized access control technology of NCQ can speed up the read and write performance of the SSD, and effectively prolong the service life of the SSD.
The garbage collection function can ensure operation efficiency. The powerful Wear-Leveling technology and ECC (Error Correction Code) function improve the reliability of data transfer. It supports Windows TRIM optimization command which is able to release free blocks, allowing the operating system to use them immediately when writing data. The optimized access control technology of NCQ can speed up the read and write performance of the SSD, and effectively prolong the service life of the SSD.
T-FORCE DELTA MAX RGB SSD connection method
There are two ways to control DELTA MAX RGB SSD light effect. According to the corresponding light control source, only one kind of cable can be used for each mode
• Sync mode uses 5V ARGB 3 pin to Micro B Cable
Use 5V ARGB 3 pin to Micro B Cable connect DELTA MAX
• Initial Rainbow light effect uses USB 10 Pin to Micro B cable
Use USB 10 pin to Micro B Cable connect DELTA MAX(MB 9 pin header)
T-FORCE DELTA MAX RGB SSD supports various kinds of controlled software
T-FORCEDELTA MAX RGB SSD supports ASUS Aura Sync / GIGABYTE RGB Fusion 2.0 / MSI Mystic Light Sync / ASROCK-Polychrome Sync / BIOSTAR Advanced VIVID LED DJ software. These lightning controlled software allows gamers to control lighting effects and lighting synchronization with T-FORCE DELTA MAX SSD. It creates a unique, dazzling color aesthetics and offers a brilliant RGB system!
More Product Specifications
Interface
SATA III 6Gb/s – With Backwards Compatibility to SATA Rev. 2.0
Voltage
DC +5V
Operation Temperature
0˚C ~ 70˚C
IOPS
512GB 4K Random Read/Write: 70K/60K IOPS Max
1TB 4K Random Read/Write: 70K/60K IOPS Max
1TB 4K Random Read/Write: 70K/60K IOPS Max
Weight
78g
Dimensions
100(L) x 69.9(W) x 9.5 (H)mm
MTBF
1,000,000 Hours
Operating System
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- MAC OS 10.4 or later
- Linux 2.6.33 or later
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP’s laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
- Note that it is not possible to connect to the 12V RGB Header, which will cause damage to the product and will lose the warranty.
- When using the synchronous light effect use 5V ARGB 3 pin to Micro B Cable connection, if there is already 5V power supply before the synchronization software control is started, that showed initial built-in lighting effect . (Rainbow style)
- If you use USB 10 Pin to Micro B cable connect DELTA MAX, only have the initial Rainbow light effect, cannot sync and control by motherboard signal.
