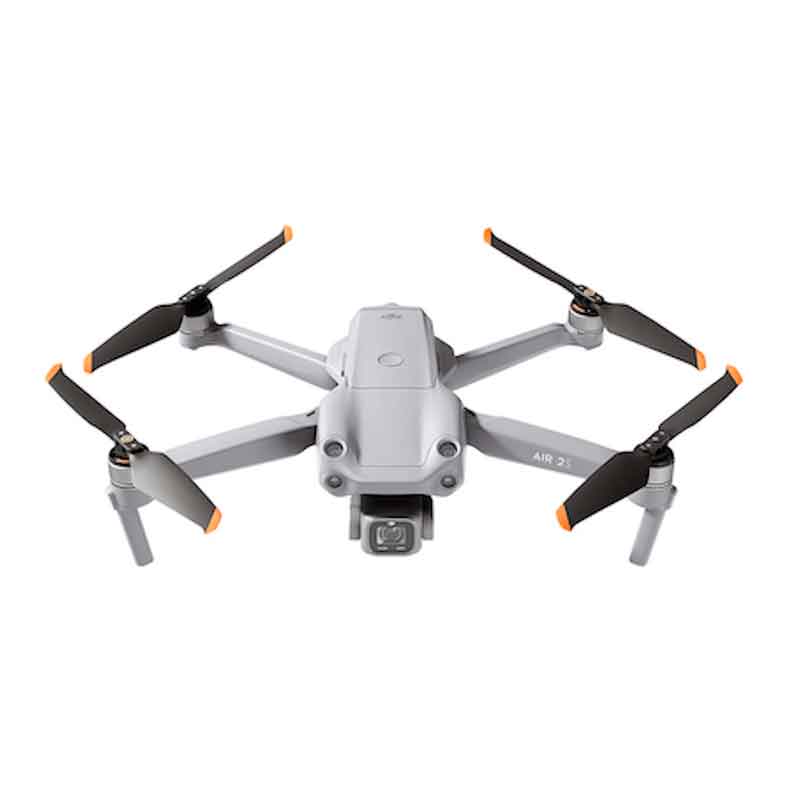

DJI Mavic Air 2S Fly More Combo Drone
Performance
Maximum Horizontal Speed | 42.5 mph / 19 m/s (S Mode) |
33.6 mph / 15 m/s (N Mode) | |
11.2 mph / 5 m/s (T Mode) | |
Maximum Ascent Speed | 13.4 mph / 6 m/s |
Maximum Descent Speed | 13.4 mph / 6 m/s |
Maximum Wind Resistance | 23.5 mph / 10.5 m/s |
Flight Ceiling | 3.1 Miles / 5000 m |
Maximum Flight Time | 31 Minutes |
Maximum Hover Time | 30 Minutes |
Maximum Tilt Angle | 35° |
Hovering Accuracy | Vision Positioning |
Vertical: ±0.3′ / 0.1 m | |
GNSS | |
Vertical: ±1.6′ / 0.5 m | |
Vision Positioning | |
Horizontal: ±0.3′ / 0.1 m | |
GNSS | |
Horizontal: ±4.9′ / 1.5 m |
Camera
Image Sensor | 1″-Type CMOS |
Sensor Resolution | Effective: 20 Megapixel |
Focal Length | 22mm (35mm Equivalent) |
Field of View | 88° |
Maximum Aperture | f/2.8 |
Minimum Aperture | f/2.8 |
Minimum Focus Distance | 2′ / 0.6 m |
ISO Sensitivity | Photo/Video |
100 to 6400 in Auto Mode | |
Photo/Video | |
100 to 12,800 in Manual Mode | |
Video Format | 5472 x 3078p at 24/25/30 fps (150 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC) |
3840 x 2160p at 24/25/30/48/50/60 fps (150 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC) | |
2688 x 1512p at 24/25/30/48/50/60 fps (150 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC) | |
1920 x 1080p at 24/25/30/48/50/60/120 fps (150 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC) | |
Broadcast Resolution | None |
Still Image Support | DNG / JPEG / Raw |
20 MP (5472 x 3648) | |
20 MP (5472 x 3078) | |
Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [256 GB Maximum] |
Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Single Shot |
Gimbal
Number of Axes | 3-Axis (Pitch (Tilt), Roll, Yaw (Pan)) |
Rotation Range | Controllable Range |
Pitch (Tilt): 114° (-90 to 24°) | |
Yaw (Pan): 160° (-80 to 80°) | |
Follow Speed | Tilt: 100°/s |
Flight Control system
GNSS Support | GPS, GLONASS |
Vision/Sensing System
Vision System | Downward / Forward / Backward |
Remote Controller / Transmitter
Operating Frequency | 2.4 GHz |
5.8 GHz | |
Maximum Operating Distance | 7.5 Miles / 12 km |
Transmitter Power | 26 dBm (2.4 G) |
26 dBm (5.8 G) | |
Transmitter I/O | 1 x USB-C Input/Output |
Mobile Device Compatibility | Devices up to 7.1″ / 180 mm Wide |
Operating Temperature | 14 to 104°F / -10 to 40°C |
Flight Battery
Battery Chemistry | Lithium-Ion Polymer (LiPo) |
Battery Capacity | 3500 mAh / 40.42 Wh |
Battery Configuration | 3 S / 11.55 V |
Maximum Charging Power | 38 W |
Charging Temperature | 41 to 104°F / 5 to 40°C |
Weight | 7.0 oz / 198 g |
Charger
AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.3 A |
DC Input Power | 5 VDC at 2 A |
Output Voltage | 13.2 V, 2.82 A |
Power Rating | 38 W |
General
Rotor Configuration | 4 |
Operating Temperature | 32 to 72°F / 0 to 40°C |
Diagonal Size | 11.9″ / 302 mm |
Overall Dimensions | 7.1 x 3.0 x 3.8″ / 180.0 x 77.0 x 97.0 mm (Folded) |
7.2 x 3.0 x 10.0″ / 183.0 x 77.0 x 253.0 mm (Unfolded) | |
Weight | 21.0 oz / 595 g |
