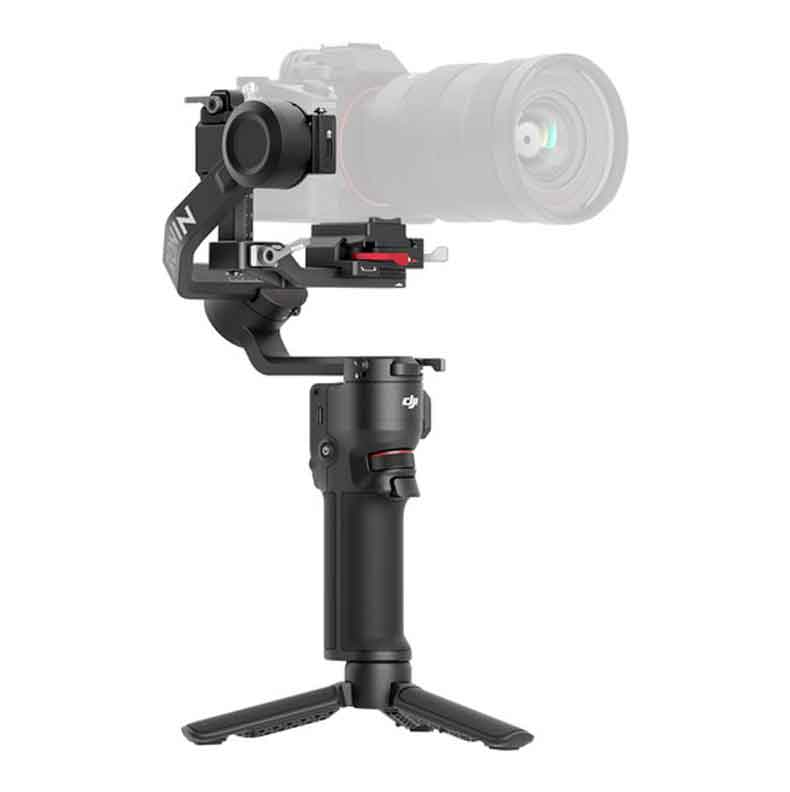

DJI RS3 Pro Gimbal Stabilizer Combo
Gimbal
Load Capacity | 9.9 lb / 4.5 kg |
Number of Axes | 3-Axis (Pitch (Tilt), Roll, Yaw (Pan)) |
Rotation Range | Controllable Range |
Yaw (Pan): 360° Unlimited | |
Pitch (Tilt): 326° (-112 to 214°) | |
Roll: 335° (-95 to 240°) | |
Follow Speed | Pan: 360°/s |
Tilt: 360°/s | |
Roll: 360°/s |
Compatibility
Camera Control | On Compatible Models |
Camera Mounting Screw | 1 x 1/4″-20 Male |
Connectivity
Inputs/Outputs | 3 x USB-C (Control) Output |
1 x USB-C (Power) | |
Wireless Frequency | 2.4 GHz (2.4 – 2.484) |
Wireless Protocol | Bluetooth 5.0 |
Battery
Battery Type | 1 x Built-In |
Battery Capacity | 1950 mAh / 30 Wh |
Battery Runtime | 12 Hours |
Battery Charging Time | 1.5 Hours |
Battery Chemistry | Lithium-Ion Polymer (LiPo) |
Voltage | 15.4 VDC |
General
Display Type | Fixed Touchscreen OLED |
Materials | Carbon Fiber |
Mounting | 1 x 1/4″-20 Female |
1 x Cold Shoe Mount | |
Dimensions | 16.3 x 8.6 x 7.7″ / 415 x 218 x 195 mm |
10.9 x 10.6 x 2.7″ / 276 x 268 x 68 mm (Folded) | |
Weight | 3.3 lb / 1497 g |
