| Specifications |
| Product Code |
EH-TW6700 |
| Technology |
| Projection System |
3LCD Technology, RGB liquid crystal shutter |
| LCD Panel |
0.61 inch with MLA (D10) |
| Image |
| Color Light Output |
3, 000 Lumen |
| White Light Output |
3, 000 Lumen |
| Resolution |
Full HD 1080p, 1920 x 1080, 16:9 |
| High Definition |
Full HD 3D |
| Aspect Ratio |
16:9 |
| Contrast Ratio |
70, 000 : 1 |
| Light source |
Lamp |
| Lamp |
UHE, 250 W, 3, 500 h durability, 5, 000 h durability (economy mode) |
| Keystone Correction |
Manual vertical: ± 30 °, Manual horizontal ± 30 ° |
| Color Processing |
10 Bits |
| 2D/3D Frequency Image |
240 Hz / 480 Hz |
| 2D Vertical Refresh Rate |
192 Hz – 240 Hz |
| 3D Vertical Refresh Rate |
400 Hz – 480 Hz |
| Color Reproduction |
Up to 1.07 billion colors |
| Optical |
| Projection Ratio |
1.32 – 2.15:1 |
| Zoom |
Manual, Factor: 1.6 |
| Lens |
Optical |
| Lens Shift |
Manual – Vertical ± 60 %, horizontal ± 24 % |
| Image Size |
30 inches – 300 inches |
| Projection Distance Wide/Tele |
2.95 m – 4.8 m ( 100 inch screen) |
| Projection Lens F Number |
1.51 – 1.99 |
| Focal Distance |
18.2 mm – 29.2 mm |
| Focus |
Manual |
| Connectivity |

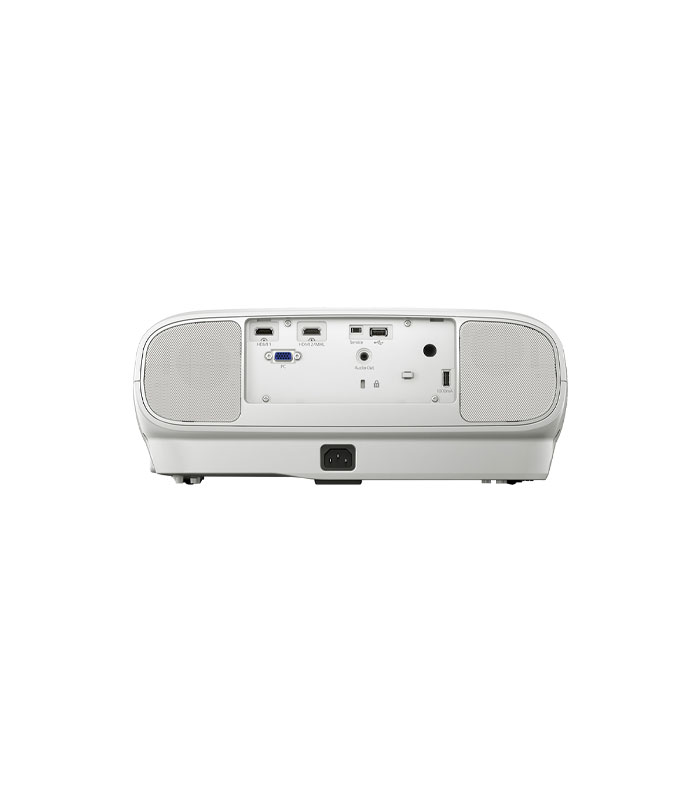

| Interfaces |
USB 2.0 Type A, USB 2.0 Type B (Service Only), Wireless Network (optional), VGA in, HDMI in (2x), MHL, Stereo mini jack audio out |
| Epson iProjection App |
Ad-Hoc / Infrastructure |
| Advanced Features |
| Security |
Kensington lock, Wireless LAN security |
| 3D |
Active |
| 2D Color Modes |
Auto, Dynamic, Natural, Cinema, Bright Cinema |
| 3D Color Modes |
3D Dynamic, 3D Cinema |
| Features |
3D depth adjustment, Built-in speaker, Epson Super White, Frame interpolation, Horizontal and vertical keystone correction, Quick Corner, Super resolution, Wireless LAN capable |
| Video Color Modes |
Automatic, Cinema, Dynamic, Natural, Bright Cinema |
| General |
| Energy Use |
364 Watt, 279 Watt (economy), 0.4 Watt (standby), On mode power consumption as defined in JBMS-84 311 Watt |
| Supply Voltage |
AC 100 V – 240 V, 50 Hz – 60 Hz |
| Product dimensions |
410 x 304 x 157 mm (Width x Depth x Height) |
| Product weight |
6.9 kg |
| Noise Level |
Normal: 32 dB (A) – Economy: 24 dB (A) |
| Temperature |
Operation 5° C – 35° C, Storage -10° C – 60° C |
| Humidity |
Operation 20% – 80%, Storage 10% – 90% |
| Included Software |
Easy MP Multi PC Projection |
| Options |
3D active shutter glasses, MB22 ceiling mount, Wireless LAN unit |
| Loudspeaker |
20 Watt, Stereo: Stereo |
| What’s in the box |
Main unit, Power cable, Remote control incl. batteries, User’s Manual Set |
| Color |
White |
