Specifications |
Product Code |

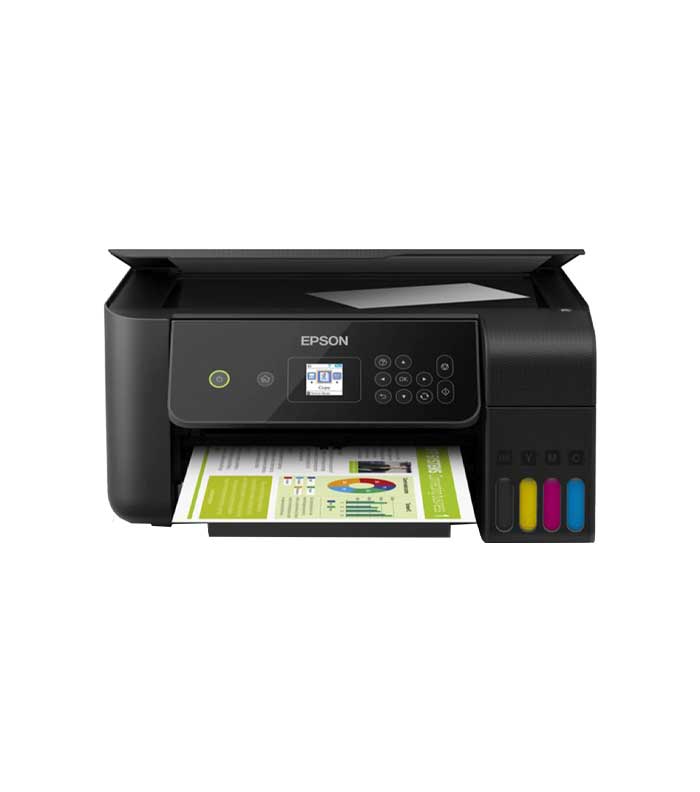

L3160 Printer |
Technology |
Printing Method |
Epson Micro Piezo print head |
Nozzle Configuration |
180 Nozzles Black, 59 Nozzles per Color |
Minimum Droplet Size |
3 pl, With Variable-Sized Droplet Technology |
Ink Technology |
Dye Ink |
Printing Resolution |
5,760 x 1,440 DPI |
Category |
Home, Office Desktop |
All-in-One Functions |
Print, Scan, Copy |
Print |
Printing Speed ISO/IEC 24734 |
10 pages/min Monochrome, 5 pages/min Colour |
Printing Speed |
33 pages/min Monochrome (plain paper 75 g/m²), 15 pages/min Colour (plain paper 75 g/m²), 69 Seconds per 10 x 15 cm photo (Epson Premium Glossy Photo Paper) |
Colours |
Black, Cyan, Yellow, Magenta |
Scan |
Single-sided scan speed (A4 black) |
200 DPI, 11 sec. with flatbed scan |
Single-sided scan speed (A4 colour) |
200 DPI, 28 sec. with flatbed scan |
Optical Resolution |
1,200 DPI x 2,400 DPI (Horizontal x Vertical) |
Output formats |
BMP, JPEG, PICT, TIFF, multi-TIFF, PDF, PNG |
Scanner type |
Contact image sensor (CIS) |
Paper / Media Handling |
Number of paper trays |
1 |
Paper Formats |
A4 (21.0×29.7 cm), A6 (10.5×14.8 cm), A5 (14.8×21.0 cm), B5 (17.6×25.7 cm), 10 x 15 cm, 13 x 18 cm, 16:9, DL (Envelope), No. 10 (Envelope), C6 (Envelope), Letter, User defined, Legal |
Duplex |
Manual |
Output Tray Capacity |
30 Sheets |
multifunction |
100 Sheets Standard, 20 Photo Sheets |
Media Handling |
Borderless print (up to 10 x 15cm) |
General |
Energy Use |
12 Watt (standalone copying, ISO/IEC 24712 pattern), 0.7 Watt (sleep mode), 4.3 Watt (Ready), 0.2 Watt (Power off) |
Supply Voltage |
AC 220 V – 240 V |
Product dimensions |
375 x 347 x 179 mm (Width x Depth x Height) |
Product weight |
4 kg |
Noise Level |
6.3 B (A) with Epson Premium Glossy Photo Paper / Photo RPM mode – 51 dB (A) with Epson Premium Glossy Photo Paper / Photo RPM mode |
Compatible Operating Systems |
Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP, XP Professional x64 Edition |
Included Software |
Epson Scan |
Interfaces |
USB, WiFi, Wi-Fi Direct |
WLAN Security |
WEP 64 Bit, WEP 128 Bit, WPA PSK (TKIP), WPA2 PSK (AES) |
Mobile and Cloud printing services |
Epson Connect (iPrint, Email Print, Remote Print Driver), Apple AirPrint, Google Cloud Print |
Power supply |
100V, 110V, 220V, 240V |
What’s in the box |
4 x 70ml individual ink bottles (Bk, C, Y, M) + 1 extra black ink bottle, Main unit, Power cable, Setup guide, Software (CD), Warranty document |
Colour |
Black |
Other Features |
Panel |
Type: Color, Diagonal: 3.7 cm |
Included Bottle Yield |
Black yield |
8,100 pages |
Colour yield |
6,500 pages |
