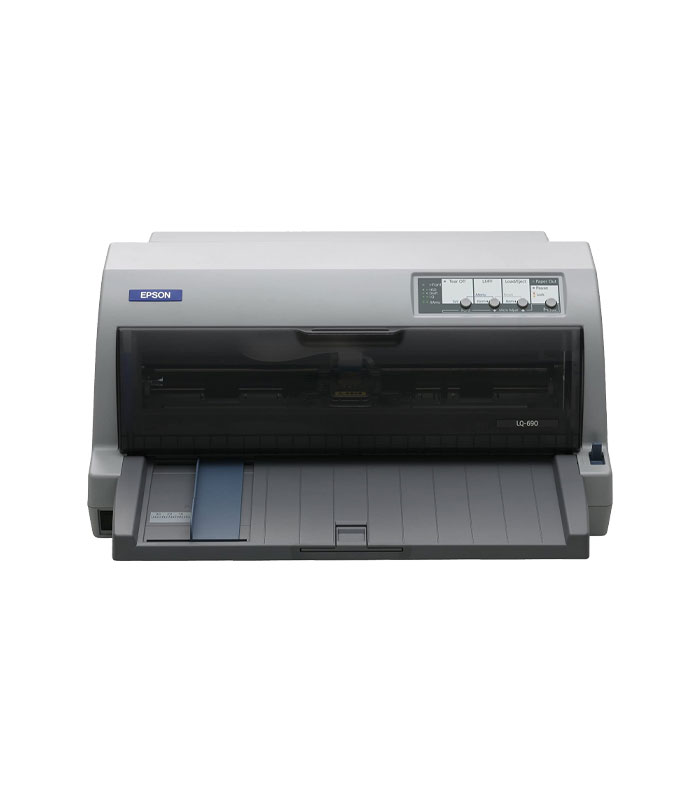

Epson LQ690 Dot Matrix Printer
- Quality: The 106 column capacity with 24 pins means greater quality
- Speedy: Impressive print speed of 529 cps
- Productive: Big memory buffer of 128 KB and built-in Print Speed Enhancer
- Reliable: Combined power of print head life and MTBF of 20,000 hours
- Energy efficient: Low power consumption so better for environment
Epson LQ690 Dot Matrix Printer Specification
|
|
||
|
|||
| Printing Method | Impact dot matrix | ||
| Product Name | Epson LQ-690 | ||
| Number Of Pins | 24 pins | ||
| Print Direction | Bi-directional with logic seeking | ||
| Number Of Columns | 106 characters/line (10 cpi) | ||
| Print Speed High Speed Draft 10CPI | 440 cps | ||
| Print Speed High Speed Draft 12CPI | 529 cps | ||
| Print Speed Draft 10CPI | 330 cps | ||
| Print Speed Draft 12CPI | 396 cps | ||
| Print Speed LQ 10CPI | 110 cps | ||
| Print Speed LQ 12CPI | 132 cps | ||
| Connectivity | |||
| Interfaces Standard | Bi-directional parallel interface, (IEEE-1284 nibble mode supported), USB 2.0 (full speed) | ||
| Print Characteristics | |||
| Print Characteristics Bitmap Fonts | Epson Draft, Epson Roman, Epson Sans Serif, Epson Courier, Epson Prestige, Epson Script, Epson OCR-B, Epson Orato, Epson Orator-S, Epson Script C | ||
| Print Characteristics Scalable Fonts | Epson Roman, Epson Roman T, Epson Sans Serif, Epson Sans Serif H | ||
| Print Characteristics Barcode Fonts | Code 128, Code 39, EAN-13, EAN-8, Interleave 2 of 5, PostNet, UPC-A, UPC-E | ||
| Paper Handling | |||
| Copies | 1 original + 6 copies | ||
| General | |||
| Voltage | 220-240V | ||
| Dimensions W x D x H | 480mm x 370mm x 210mm | ||
| Weight | 6.8 kg | ||
| Noise Level | 57 dB(A), 54 dB(A) at low-noise mode | ||
| Mean Time Between Failure | 20, 000 power on hours | ||
Epson LQ690 Dot Matrix Printer
Designed with the dot matrix user in mind, our latest model has an impressive print speed of up to 529 cps. This flexible and compact printer can easily handle cut sheets, continuous paper, labels, envelopes and cards. It has a built-in Print Speed Enhancer to increase the speed of bit image printing, making it an ideal printer for those in the most demanding of work environments.
Very fast:
Print faster and more productively, thanks to the Print Speed Enhancer – a unique feature in the Epson driver. Perfect for those printing directly from any Windows ® applications. – Also, LQ-690 is capable of printing an impressive 529 cps (12 cpi) when using printer resident fonts.
High ribbon yield:
High ribbon yield: In a demanding and fast-moving work environment, a high ribbon yield is essential, and with 10 million characters per ribbon, this marks out the LQ-690 as a leading force in the flatbed market. It is also cost-effective with long ribbon replacement cycles, low running costs and total cost of ownership.
Dependable:
Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours, plus a print head life of 400 million strokes/wire. This results in greater productivity and less maintenance – essential when producing large amounts of documents and data.
Smart design:
Smart design: This compact hard-working printer is designed to fit on your desk. The platen gap adjustment lever is thoughtfully hidden under the front cover, to avoid accidental setting changes and paper setting is made easy thanks to the ruler in the front paper guide.
