| Product naming |
|
| Model name |

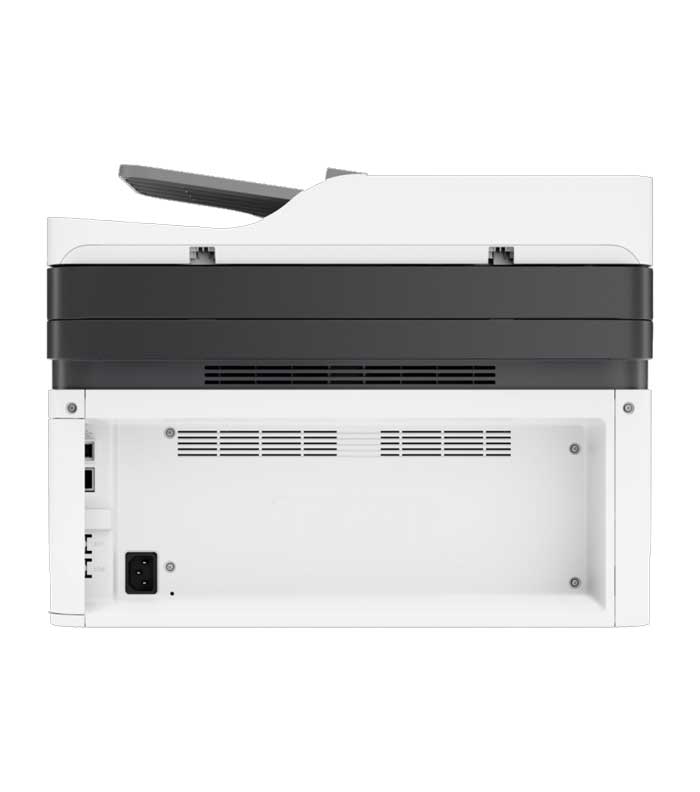

HP Laser MFP 137fnw |
| Product number |
4ZB84A |
| What’s included and accessories |
|
| What’s in the box |
HP Laser MFP 137fnw Printer; Preinstalled introductory HP Laser Black print cartridges (500 pages); Setup guide; Reference guide; Regulatory statements flyer; Power cord; USB cable; Telecom cable |
| Connectivity |
|
| Ports |
Hi-Speed USB 2.0; Fast Ethernet 10/100Base-Tx network port; Wireless 802.11 b/g/n |
| Wireless capability |
Yes, built-in Wi-Fi 802.11b/g/n |
| Copy |
|
| Copier settings |
Copies; Original Size; Reduce/Enlarge; Darkness; Original Type; Collation; 2-Up; 4-Up; ID Copy; Adjust Background; Auto Fit Copy |
| Maximum number of copies |
Up to 99 copies |
| Copy reduce / enlarge settings |
25 to 400% |
| Copy speed (black, normal) |
Up to 20 CPM |
| Copy resolution |
Up to 600 x 600 dpi |
| Environmental |
|
| Acoustic power emissions (active, printing) |
6.5 B(A) (printing at 20 ppm) |
| Recommended operating humidity range |
20 to 70% RH (non-condensing) |
| Recommended operating temperature range (Celsius) |
15 to 27°C |
| Storage temperature range (Celsius) |
-20 to 40°C |
| Environmental specifications |
Mercury-free |
| Fax |
|
| Fax available |
Yes, black & white and color (send only) |
| Fax features |
Permanent fax memory backup, color faxing, auto fax reduction, auto redialing, delayed sending, fax forwarding, PC fax, secure receive |
| Fax Resolution Black (best) |
Up to 300 x 300 dpi |
| Fax memory |
Up to 400 pages |
| Telephone handset supported |
No |
| Fax telephone mode supported |
Yes |
| Modem |
33.6 kbps |
| Fax Speed Dials, Maximum Number |
Up to 200 numbers |
| Memory |
|
| Memory |
128 MB |
| Maximum Memory |
128 MB |
| Mobile printing capability |
|
| Mobile printing services |
Apple AirPrint™; Google Cloud Print™; Mobile Apps; Mopria™ Certified; Wi-Fi® Direct Printing |
| Networking |
|
| Network protocols, supported |
Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing; Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual), IPv6 (Stateless Link-Local and via Router, Stateful via DHCPv6); Management: SNMPv1/v2/v3, HTTP |
| Paper handling |
|
| Input capacity |
Up to 150 sheets |
| Output capacity |
Up to 100 sheets |
| Media sizes supported (metric) |
A4; A5; A5 (LEF); B5 (JIS); Oficio; Envelope (DL, C5) |
| Media sizes, custom (metric) |
76 x 127 to 216 x 356 mm |
| Media types |
Plain, Thick, Thin, Cotton, Colour, Preprinted, Recycled, Labels, CardStock, Bond, Archive, Envelope |
| Media weight supported (metric) |
60 to 163 g/m² |
| Paper handling – ADF |
|
| Automatic document feeder capacity |
Standard, 40 sheets |
| Media size (ADF) |
B5 |
| Media weight supported, ADF (metric) |
60 to 105 g/m² |
| Physical dimensions |
|
| Maximum dimensions (W x D x H, metric) |
421.9 x 424 x 308.7 mm |
| Weight (metric) |
8.58 kg |
| Power |
|
| Energy savings feature technology |
Power save |
| Power supply type |
Internal (Built-in) power supply |
| Power supply |
220 to 240 VAC, 50/60Hz |
| Power consumption |
300 watts (Active Printing), 38 watts (Ready), 1.9 watts (Sleep), 0.2 watts (Manual Off) |
| Print cartridges |
|
| Number of print cartridges |
1 (black) |
| Replacement cartridges |
HP 105A Black Original Laser Toner Cartridge (1,000 pages yield) W1105A; HP 106A Black Original Laser Toner Cartridge (1,000 pages yield) W1106A; HP 107A Black Original Laser Toner Cartridge (1,000 pages yield) W1107A |
| Printing specifications |
|
| Print technology |
Laser |
| Duplex printing |
Manual (driver support provided) |
| Print resolution (best) |
Up to 1,200 x 1,200 dpi |
| Maximum print area (metric) |
216 x 356 mm |
| Monthly duty cycle |
Up to 10,000 pages |
| Print languages |
SPL |
| Printer smart software features |
Manual duplex and booklet print, N-up printing, skip blank pages, poster print, watermarks |
| Regulatory specifications |
|
| Safety |
IEC 60950-1:2005+A1: 2009+A2 2013 (International); EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 (EU); IEC/EN 60825-1:2014 (Class 1 Laser Product); EN 62479:2010 /IEC 62749:2010; Low Voltage Directive 2006/95/EC with CE Mark (Europe); GS Certificate (Germany, Europe); Compliance with Laser safety standards 21 CFR 1002.10 and 1002.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007; Other safety approvals as required by individual countries |
| Electromagnetic compatibility |
EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010, EN 55032:2012/AC:2013, 47 CFR Part 15, Subpart B I ANSI C63.4-2009, ICES-003 Issue 5, KN32, KN35, GB/T 9254-2008, GB17625.1-2012, CISPR22:2008, CISPR32:2012, CNS 13438, other EMC approvals as required by individual countries |
| Telecom compliance (fax capability) |
EBR21, FCC Prat 68 |
| Scan |
|
| Scanner advanced features |
Scan to WSD (network support only); Book Scanning; Poster stitching for multiple scan; Text converting; Scan to E-Book; Existing file to E-Book |
| Scan technology |
Contact Image Sensor (CIS) |
| Scan resolution, hardware |
Up to 4800 × 4800 dpi |
| Levels of grayscale |
256 |
| Bit depth |
8-bit (mono); 16-bit (color) |
| Maximum flatbed scan size (metric) |
216 x 297 mm |
| Minimum ADF scan size (metric) |
145 x 145 mm |
| Maximum ADF scan size (metric) |
216 x 356 mm |
| Twain version |
Version 1.9 |
| Security |
|
| Security management |
Password-protected network embedded Web server; Enable/disable Network ports; SNMPv1 community password change; SNMPV2/V3; IPSec; Filtering: MAC, IPv4, IPv6 |
| System requirements |
|
| Minimum system requirements for Windows |
Windows 7 or newer, Intel® Pentium® IV 1 GHz 32/64-bit processor or higher, 1 GB RAM, 16 GB HDD |
| Compatible Network Operating Systems |
Windows®: 7 (32/64-bit), 2008 Server R2, 8 (32/64-bit),10 (32/64-bit), 2012 Server, 2016 Server |
| Operating system (supported note) |
Windows 7 or higher |
| Warranty |
|
| Warranty |
One-year limited hardware warranty |
