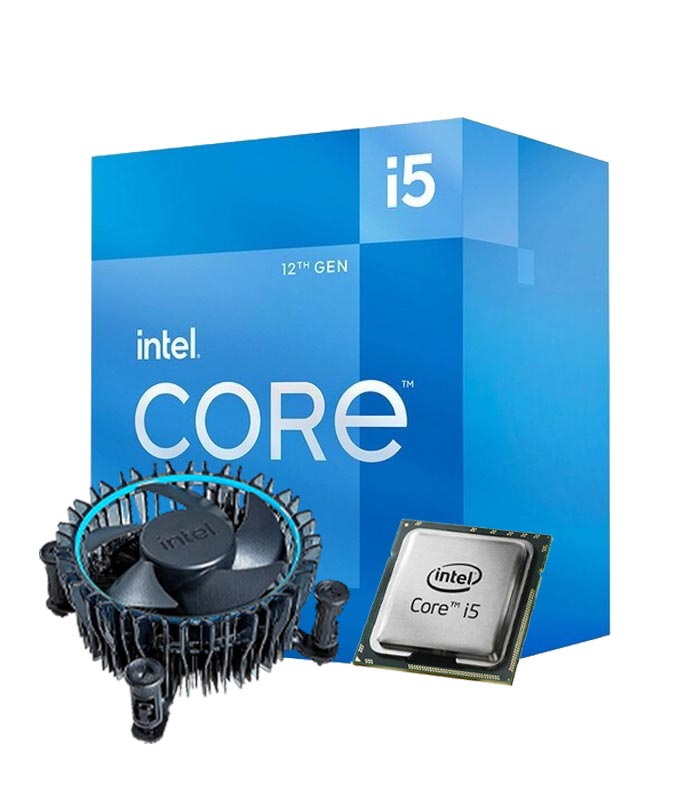

Intel Core i5-12400 2.5 GHz 6-Core LGA 1700 Box
| CPU Model | Intel Core i5-12400 (12th Gen) |
| CPU Socket | LGA 1700 |
| Manufacturing Process | 10 nm |
| Maximum CPU Configuration | 1S |
| Maximum Number of PCIe Lanes | 16 (Revision 5.0) 4 (Revision 4.0) |
| Unlocked | No |
Performance
| Number of Cores | 6 (6 x P-Cores) |
| Number of Threads | 12 |
| Base Clock Speed | P-Core: 2.5 GHz |
| Maximum Boost Speed | P-Core Turbo: 4.4 GHz |
| L3 Cache | 18 MB |
Memory Support
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 3200 MHz DDR5 4800 MHz |
| ECC Memory | No |
| Channel Architecture | Dual Channel |
| Maximum Memory Bandwidth | 76.8 GB/s |
| Optane Memory Support | Yes |
Power
| Thermal Design Power (TDP) | 65 W |
| Included Thermal Solution | Laminar RM1 (117 W) |
| Maximum Temperature | 212°F / 100°C |
| Thermal Monitoring Technologies | Yes |
Technology
| AES Support | Yes |
| Extension | AVX 2.0, AVX-512, SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
| DMI | DMI4 (16 GT/s) |
| vPro Support | Yes |
| Performance Technologies | Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, SpeedShift, Stable Image Platform Program, Turbo Boost 2.0 |
| Security Technologies | Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key |
| Video Technologies | Clear Video, Clear Video HD, InTru 3D, Quick Sync Video |
Integrated Graphics
| Integrated Graphics | Intel UHD Graphics 730 |
| Maximum Resolution Support | 7680 x 4320 at 60 Hz |
| Supported APIs | DirectX: 12 OpenGL: 4.5 |
| Number of Displays | 4 |
| Output Support | eDP, DisplayPort, HDMI |
| Base Clock Speed | 300 MHz |
| Maximum Boost Speed | 1.45 GHz |
Packaging Info
| Package Weight | 1.01 lb |
| Box Dimensions (LxWxH) | 4.9 x 4.2 x 3.2″ |
