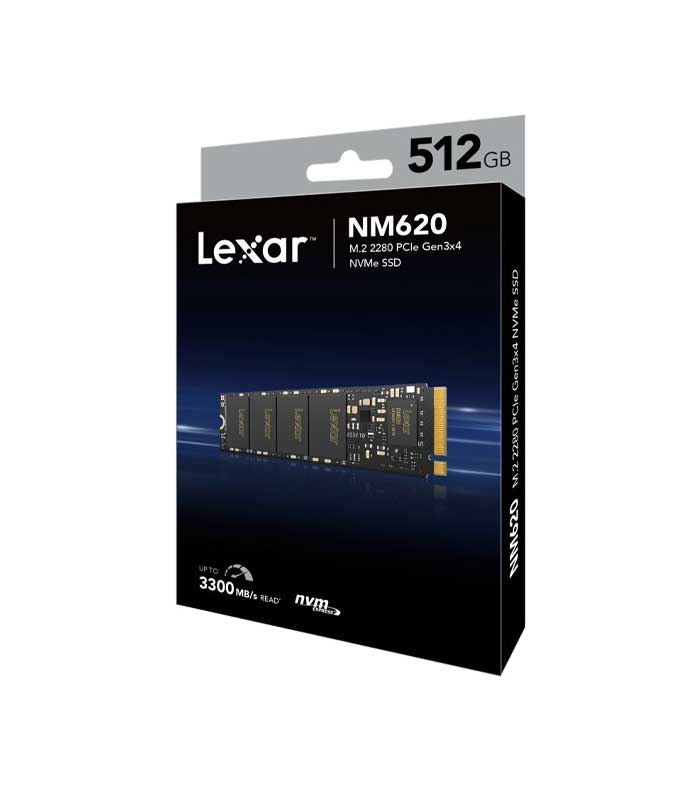

Lexar 512GB NVMe 2280 – LNM620X512G-RNNNG
Designed for intensive workloads, the Lexar NM620 M.2 2280 PCIe Gen3x4 NVMe SSD offers next-level performance that puts you in the computing fast lane with speeds up 3300MB/s read and 2400MB/s write1. It’s supported by the PCIe Gen3x4 NVMe 1.4 technology standard and built with the latest 3D NAND flash.
With speeds of up to 3300MB/s read, enjoy 6x the speed of SATA SSDs3. The NM620 puts you in the computing fast lane and offers impressive performance for demanding creative workstations and gaming experiences.
Low-Density Parity Check (LDPC) technology makes data transfers more reliable than ever by fixing data errors before they have a chance to slow you down.
Unlike traditional hard disk drives, the NM620 SSD has no moving parts, so it’s built to last. On top of that, it’s also shock and vibration resistant2, making it one robust and reliable SSD.
Reduced power consumption and cooler operation makes the battery life last longer than a traditional hard drive.
Lexar 512GB NVMe 2280 – LNM620X512G-RNNNG Specification
| Form Factor | M.2 2280 |
| Interface | PCIe Gen3x4 |
| Performance | 512GB —sequential read up to 3300MB/s, write up to 2400MB/s |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimension (L x W x H) | 80 mm x 22 mm x 2.25 mm / 3.15” x 0.87” x 0.09” |
| Weight | 9 grams |
| Warranty | 5 year limited warranty |
| Shock Resistant | 1500 G, duration 0.5ms, Half Sine Wave |
| Vibration Resistant | 10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z) |
| TBW | 1 TB: 500 TB, 500 GB: 250 TB, 250 GB: 125 TB |
| DWPD | 1 TB: 0.44, 512 GB: 0.44, 256 GB: 0.44 |
| NAND flash | 3D TLC |
| MTBF | 1,500,000 Hours |
