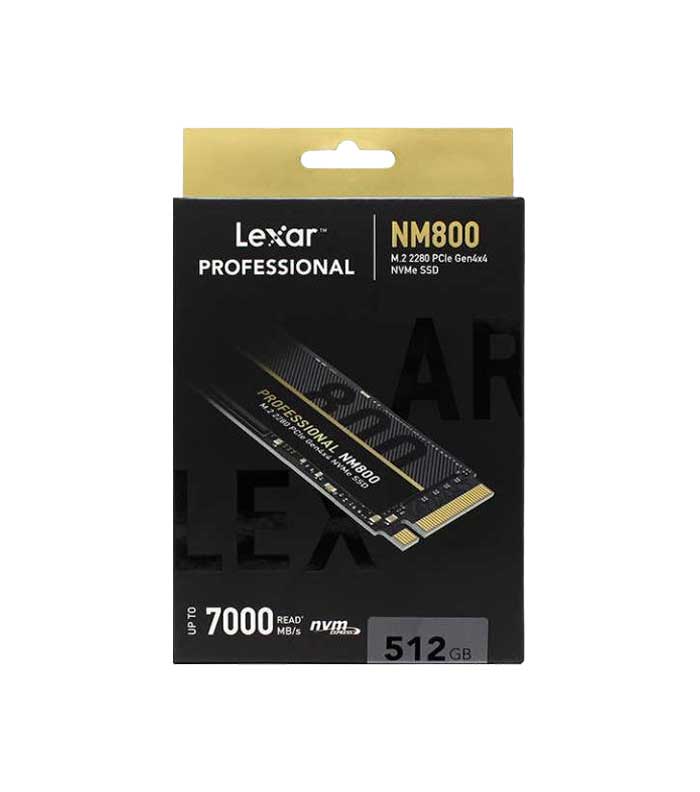

Lexar 512GB NVMe 2280 – LNM800
Designed for hardcore gamers and creative professionals, the Lexar Professional NM800 M.2 2280 NVMe SSD provides maximum SSD performance with speeds up to 7400MB/s read and 5800MB/s write1. It’s supported by the PCIe Gen4x4 NVMe 1.4 technology standard and backwards compatible with PCIe 3.0.
The NM800 puts you in the computing fast lane and offers maximum SSD performance for demanding creative workstations and gaming experiences with speeds of up to 7400MB/s read, which is 12.7x the speed of SATA SSDs3.
Low-Density Parity Check (LDPC) technology makes data transfers more reliable than ever by fixing data errors before they have a chance to slow you down.
Developed with the 12nm controller, the NM800 SSD produces low power consumption for longer battery life and better user experience.
Unlike traditional hard disk drives, the NM800 SSD has no moving parts, so it’s built to last. On top of that, it’s also shock and vibration resistant2, making it one robust and reliable SSD.
Lexar 512GB NVMe 2280 – LNM800
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4x4 |
| Performance | 512GB —up to 7400MB/s read, 3000MB s write1 |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimension (L x W x H) | 80 x 22 x 2.45 mm / 3.15” x 0.87” x 0.10” |
| Weight | 9 grams |
| Warranty | 5 year limited warranty |
| Shock Resistant | 1500 G, duration 0.5ms, Half Sine Wave |
| Vibration Resistant | 10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z) |
| TBW | 512GB: 1500TB,1TB: 3000TB |
| DWPD | 0.44 |
| NAND flash | 3D TLC |
| MTBF | 1,500,000 Hours |
