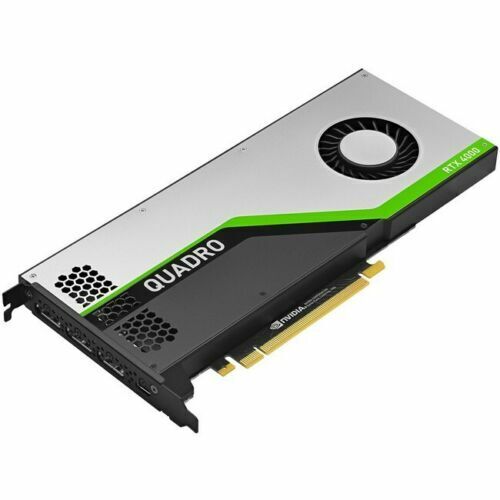

NVIDIA Quadro RTX 4000
The World’s First Ray Tracing GPU
NVIDIA® Quadro® RTX™ 4000 combines the NVIDIA Turing GPU architecture with the latest memory and display technologies, to deliver the best performance and features in a single-slot PCI-e form factor. Enjoy greater fluidity with photorealistic rendering, experience faster performance with AI-enabled applications and create detailed, lifelike VR experiences more cost-effectively and across a broader range of workstation chassis configurations.
NVIDIA Quadro RTX 4000 features 36 RT cores to accelerate ray tracing, 288 Tensor cores to accelerate AI and 8 GB GDDR6 memory to accommodate large datasets. It is equipped with three DisplayPort 1.4 connectors with HDR support and features the latest VirtualLink connector (that can also drive a DisplayPort panel via an included USB Type-C to DP adapter) to simplify connectivity to next-gen VR HMDs. Additionally, in conjunction with NVIDIA Quadro Sync II you can deploy massive digital signage solutions with higher density and at lower cost.
Highlights
| CUDA Cores | 2304 |
| RT Cores | 36 |
| Tensor Cores | 288 |
| GPU Memory | 8GB GDDR6 |
| RTX-OPS | 43 T |
| Rays Cast | 6.0 Giga Rays/Sec |
| Peak Single Precision FP32 Performance | 7.1 TFLOPS |
| Peak Half Precision FP16 Performance | 14.2 TFLOPS |
| Peak INT8 Performance | 28.5 TOPS |
| Deep Learning TFLOPS | 57.0 Tensor TFLOPS |
| Memory Bandwidth | 416 GB/Sec |
| System Interface | PCI Express 3.0 x16 |
| Display Connectors | DisplayPort 1.4 (3) + VirtualLink |
SPECIFICATIONS
Compatible in all systems that accept an NVIDIA Quadro RTX 4000
| CUDA Cores | 2304 |
| RT Cores | 36 |
| Tensor Cores | 288 |
| RTX-OPS | 43T |
| Rays Cast | 6 Giga Rays/Sec |
| Peak Single Precision FP32 Performance | 7.1 TFLOPS |
| Peak Half Precision FP16 Performance | 14.2 TFLOPS |
| Peak INT8 Performance | 28.5 TOPS |
| Deep Learning TFLOPS | 57.0 Tensor TFLOPS |
| GPU Memory | 8 GB GDDR6 |
| Memory Bandwidth | 416 GB/Sec |
| System Interface | PCI Express 3.0 x16 |
| Display Connectors | DisplayPort 1.4 (3) + VirtualLink |
| Max Power Consumption (With VirtualLink) | 125 W (160 W, Includes USC Type-C) NVIDIA Quadro Power Guidelines |
| Max Digital Resolution | 7680 x 4320 x36 bpp at 60hz NVIDIA Quadro and NVS Display Resolution Support |
3D GRAPHICS ARCHITECTURE
- Scalable geometry architecture
- Hardware tessellation engine
- NVIDIA GigaThread™ engine with 7 async copy engines
- Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
- Up to 32K x 32K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 32-bit per-component floating point texture filtering and blending
- 64x full scene antialiasing (FSAA)/128x FSAA in SLI Mode
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- Dedicated H.264 & HEVC Encoder
- Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
- NVIDIA GPU Boost (Automatically improves GPU engine throughput to maximize application performance)
NVIDIA CUDA PARALLEL PROCESSING ARCHITECTURE
- New RT (Ray Tracing) Core per SM
- Turing SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
- Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
- Mixed-precision (1-, 4-, 8-, 16-, 32- and 64-bit) computing
- API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
- Configurable up to 96 KB of RAM (dedicated shared memory size per SM)
ADVANCED DISPLAY FEATURES
- Support for any combination of four connected displays
- Three DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 at 120 Hz, 5120 x 2880 at 60 Hz and 7680 x 4320 at 60Hz)
- Included UBC Type-C to DP adapter provides the full range of resolutions and refresh rates noted above
- DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables (resolution support based on dongle specifications)
- HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60Hz 10b/12b HEVC Decode, 4K at 60Hz 10b HEVC Encode)
- HDCP 2.2 support over DisplayPort and HDMI connectors
- 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
- NVIDIA 3D Vision™ technology, 3D DLP, Interleaved, and other 3D stereo format support
- Full OpenGL quad buffered stereo support
- Underscan/overscan compensation and hardware scaling
- NVIDIA nView® multi-display technology
- Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA Mosaic, NVIDIA Sync and NVIDIA Warp/Blend technologies
AVAILABLE ACCESSORIES
- DP-HDMI-THREE-PCK Connect the NVIDIA Quadro RTX 4000 to HDMI displays at resolutions up to 4K with PNY Part Number DP-HDMI-THREE-PCK. The three included DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.
- DP-HDMI-SINGLE-PCK Connect the NVIDIA Quadro RTX 4000 to an HDMI display at resolutions up to 4K with PNY Part Number DP-HDMI-SINGLE-PCK. The included DisplayPort to HDMI adapter is recommended by NVIDIA, provides outstanding image quality, and is built to professional standards.
SUPPORTED PLATFORMS
- Microsoft Windows 10 (64-bit)
- Microsoft Windows 8.1 and 8 (64-bit)
- Microsoft Windows 7 (64-bit)
- Linux – Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit)
MINIMUM SYSTEM HARDWARE REQUIREMENTS
- Intel Core i5, i7, Xeon or later
- AMD Phenom or Opteron-class or later
- PCIe x16 Gen 3 (preferred) expansion slot
- 8GB of system memory (more preferred)
- Internet connection (for driver installation)
- DisplayPort (preferred) or DVI compatible displays
- DisplayPort (preferred), HDMI, or DVI compatible display
PACKAGE CONTAINS
- NVIDIA Quadro RTX 4000 professional graphics card
- NVIDIA Quadro RTX Quick Start Guide
- NVIDIA Quadro Support Guide
- DisplayPort to DVI-D SL adapter
- Auxiliary power cable
