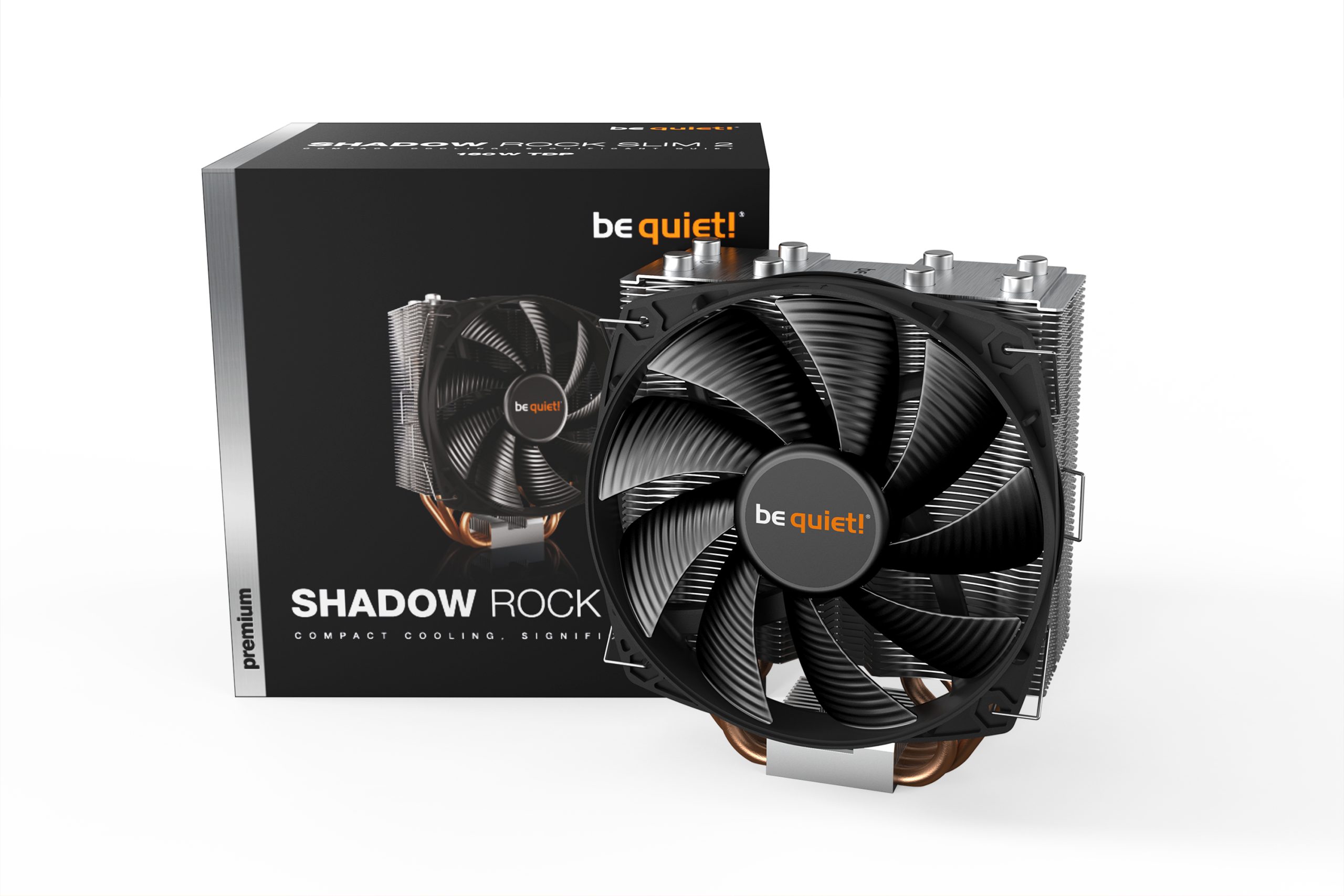

SHADOW ROCK SLIM 2
Compact cooling, significant quiet
be quiet! Shadow Rock Slim 2 is the space saving CPU cooler for gaming, multimedia and graphics-intensive compact PCs. With high performance, the famously silent be quiet! operation and an unmatched price-performance ratio, Shadow Rock Slim 2 is a best choice in this category.
- Very high cooling capacity of 160W TDP
- An optimized mounting kit for an easier installation in alignment with the airflow
- 4 high-performance 6mm heat pipes with HDT technology
- 135mm silence-optimized be quiet! fan with 9 airflow-optimized blades, durable rifle-bearing technology and max 23.7dB(A)
- Brushed aluminum top cover
VERY HIGH COOLING POWER
Reliable cooling for your compact system
Shadow Rock Slim 2 provides an impressive cooling capacity of 160W TDP and is designed for those searching for high-performance air cooling in a compact design. The brushed aluminum top cover surface adds a touch of elegance to this premium cooler.
HIGH-PERFORMANCE HEAT PIPES
Ensuring perfect heat transfer
Shadow Rock Slim 2 is equipped with four 6mm heat pipes that have aluminum caps. This is key to its great cooling performance, because they transport the heat to optimum locations on the cooling fins.
EXTREMELY LOW-NOISE OPERATION
Even at 100% fan speed, the overall noise is a mere 23.7dB(A)
The silence-optimized 135mm be quiet! fan supports the best balance between cooling performance and quietness. The fan operates especially smoothly thanks to its nine airflow-optimized fan blades and durable rifle-bearing technology.
HEAT PIPE DIRECT TOUCH
Maximizes conductance of heat
Thanks to Heat pipe Direct Touch (HDT) technology the heat from the CPU is absorbed directly by the four 6mm high-performance copper heat pipes.
HIGHLY COMPATIBLE, AMAZINGLY FUNCTIONAL
The perfect choice for compact PC enclosures
The compact design saves space and allows easy access to RAM banks even within the tight confines afforded by some compact PC enclosures. Due to an optimized mounting kit, installation is now even easier.
General data
| Model | Shadow Rock Slim 2 |
| TDP (W) | 160 |
| Color option | Silver |
| Overall dimensions without mounting material (L x W x H), (mm) | 52 x 130 x 161 |
| Total weight (kg) | 0.69 |
| Socket compatibility Intel | 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM |
| Socket compatibility AMD | AM5 / AM4 |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 11.5 / 18.7 / 23.7 |
| Number of fans | 1 |
| Lighting connector | – |
Infographics
Heatsink specifications
| Dimensions (L x W x H), (mm) | 74 x 137 x 161 |
| Fin material | Aluminum |
| Surface treatment | Brushed |
| Base material | Aluminum / Copper |
| CPU contact surface | Heat pipe direct touch |
| Heatpipe number / Diameter (mm) | 4 / 6 |
| Decoupled fan mounting | – |
Fan specifications
| Fan model | silence-optimized be quiet! fan |
| Fan dimensions (mm) | 135 x 135 x 22 |
| Speed @ 100% PWM (rpm) | 1400 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 86.3 / 146.6 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.30 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.40 |
| Safety current (A) | 0.11 |
| Input power (W) | 1.3 |
| Connector | 4-pin PWM |
| Lighting connector | – |
| Cable length (mm) | 220 |
| Lifespan (h / 25°C) | 80,000 |
| Y-Cable | – |
Accessories
| Thermal grease (Type) | Included |
| Mounting set | Intel & AMD |
| Screwdriver | – |
| Y-Cable | – |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
Safety certification
| Approvals | CE, UL, TÜV |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BK032 |
| EAN code | 4260052188712 |
| Dimensions, package (L x W x H), (mm) | 185 x 130 x 180 |
| Gross weight, package (kg) | 1.1 |
| Pieces per packaging unit | 16 |
| Dimensions, shipping box (L x W x H), (mm) | 550 x 400 x 390 |
| Gross weight, shipping box (kg) | 19.0 |
