| Nanostation M5 | 5GHz 802.11a/n hi-power (27dBm) 2×2 MIMO airMAX TDMA PoE station. This is the ultimate 5Ghz wireless outdoor CPE with integrated 14dBi dual polarity antenna. |
| Product Includes | One (1) Nanostation M5 5.8GHz |
| One (1) Power Injector: 110-240VAC 24VDC 0.5A US-style plug. | |
| Mount and mounting strap (NanoBracket sold separately) | |
| Processor Specs | Atheros MIPS 24KC, 400MHz |
| Wireless | 5Ghz Atheros, 27dBm Adjustable down to 8dBm, AES Encryption |
| Memory Information | 32MB SDRAM, 8MB Flash |
| Networking Interface | 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface, PoE Passthrough |
| Mount and mounting strap | Nanobracket is optional, sold separately |
| Operating Temperature | -30C to +80C |
| Power Method | Passive PoE |
| Power Consumption | 8 Watts |
| Power Supply (included) | Power Injector 110-240VAC 24VDC .5A North American-style plug |
| Weight | 0.4kg |
| Dimensions | 29.4 cm x 8 cm x 3cm |
| Approvals | FCC Part 15.247, IC RS210, CE |
| RoHS Compliance | YES |
| Additional inormarion | Nanostation M5 Ubiquiti airMAX NSM5. Nanostation NSM5: 5GHz 802.11a/n hi-power (27dBm) 2×2 MIMO airMAX TDMA PoE station. This is the ultimate 5Ghz wireless outdoor CPE with integrated 14dBi dual polarity antenna. |
| NanoStation M5 Features | |
| Great Performance | 150+ Mbps real outdoor throughput and up to 15km+ range. Typical range is 2-4 miles from a LOS tower running airMAX sector antenna’s and Rocket M5’s. |
| Next-Gen Antenna Design | 11dBi dual-polarity gain at 5GHz with optimized cross-polarity isolation in a compact form-factor. |
| Dual Ethernet Connectivity | A secondary Ethernet port with software enabled POE output for seamless IP Video integration. |
| Intelligent POE | Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. |
| 802.3af 48V Compliant | Easily becomes 802.3af 48V compliant through use of Ubiquiti Instant 802.3af adapter. The adapter sold separately (SKU#I8023AF-OD or I8023AF-ID) |
| Easy Installation | Easily mountable to a pole/mast with mounting straps provided. In addition, the NanoStation M5 can be mounted and adjusted in any direction in a 90-degree angle through the use the NanoBracket. The NanoBracket is sold separately (SKU#MT-NANO U) |
Sold out
Fast delivery within 72 Hours

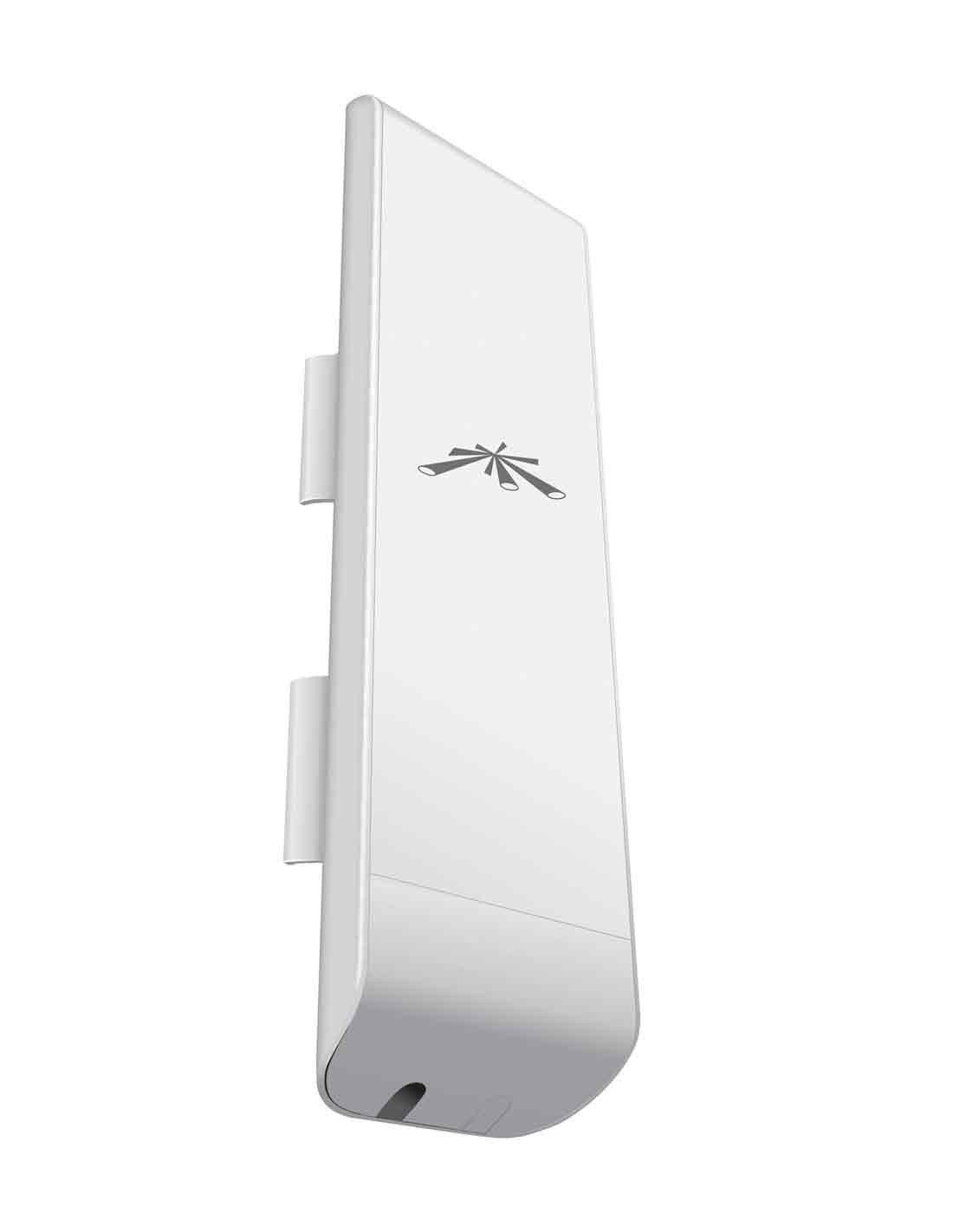

Ubiquiti NanoStation M5 NSM5
85,00 $
Out of stock
Ubiquiti NSM5 has 5 GHz frequency, 150+ Mbps throughput, 15+ km range, etc.
In addition to it, Ubiquiti NanoStation M5 features are the great performance, dual ethernet connectivity, PoE enabled, easy Installation, outdoor multi-point networking and so on, in short, has Powerful airOS® features.
Plus, we offer cheap price and free delivery in Dubai, our company is Ubiquiti Networks partner in UAE
Out of stock
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
