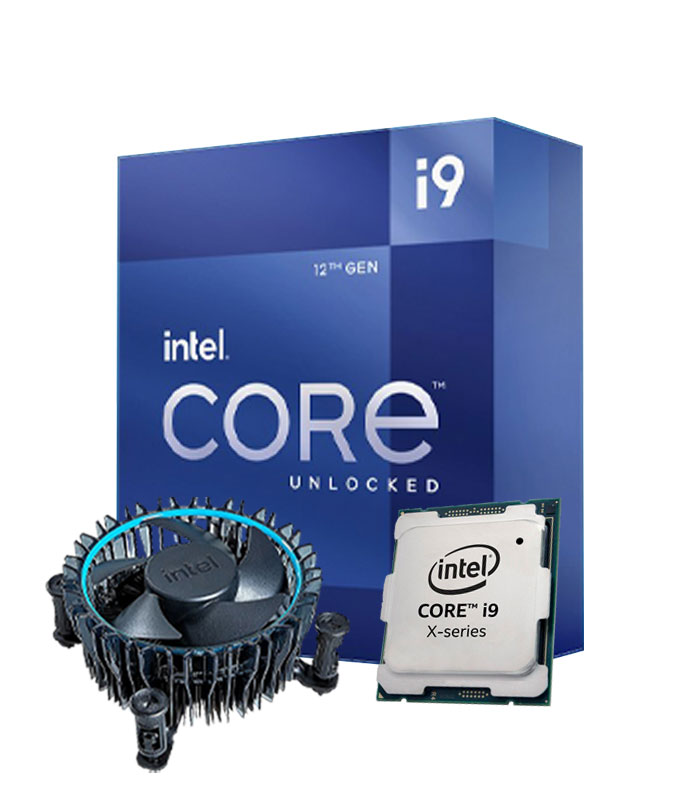

Intel Core i9-12900K 3.2 GHz 16-Core LGA 1700 Box
General | |
CPU Model | Intel Core i9-12900K (12th Gen) |
CPU Socket | LGA 1700 |
Manufacturing Process | 10 nm |
Maximum CPU Configuration | 1S |
Maximum Number of PCIe Lanes | 16 (Revision 5.0) 4 (Revision 4.0) |
Unlocked | Yes |
Performance | |
Number of Cores | 16 (8 x P-Cores + 8 x E-Cores) |
Number of Threads | 24 |
Base Clock Speed | P-Core: 3.2 GHz E-Core: 2.4 GHz |
Maximum Boost Speed | 5.2 GHz P-Core Turbo: 5.1 GHz E-Core Turbo: 3.9 GHz |
L3 Cache | 30 MB |
Memory Support | |
Maximum Capacity | 128 GB |
Memory Support | DDR4 3200 MHz DDR5 4800 MHz |
ECC Memory | No |
Channel Architecture | Dual Channel |
Maximum Memory Bandwidth | 76.8 GB/s |
Optane Memory Support | Yes |
Power | |
Thermal Design Power (TDP) | 125 W |
Included Thermal Solution | None |
Maximum Temperature | 212°F / 100°C |
Thermal Monitoring Technologies | Yes |
Technology | |
AES Support | Yes |
Extension | AVX 2.0, AVX-512, SSE 4.1/4.2 |
Instruction Set | 64-Bit |
Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
DMI | DMI4 (16 GT/s) |
vPro Support | Yes |
Performance Technologies | Deep Learning Boost, Gaussian and Neural Accelerator 2.0, Hyper-Threading, Intel Thread Director, SpeedShift, Stable Image Platform Program, Thermal Velocity Boost, Turbo Boost 2.0, Turbo Boost Max 3.0 |
Security Technologies | Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key, Software Guard Extensions, Threat Detection Technology (TDT), Trusted Execution Technology |
Video Technologies | Clear Video, Clear Video HD, InTru 3D, Quick Sync Video |
Integrated Graphics | |
Integrated Graphics | Intel UHD Graphics 770 |
Maximum Resolution Support | 7680 x 4320 at 60 Hz |
Supported APIs | DirectX: 12 OpenGL: 4.5 |
Number of Displays | 4 |
Output Support | DisplayPort, HDMI |
Base Clock Speed | 300 MHz |
Maximum Boost Speed | 1.55 GHz |
Packaging Info | |
Package Weight | 1.01 lb |
Box Dimensions (LxWxH) | 6.5 x 5.3 x 5.2″ |
