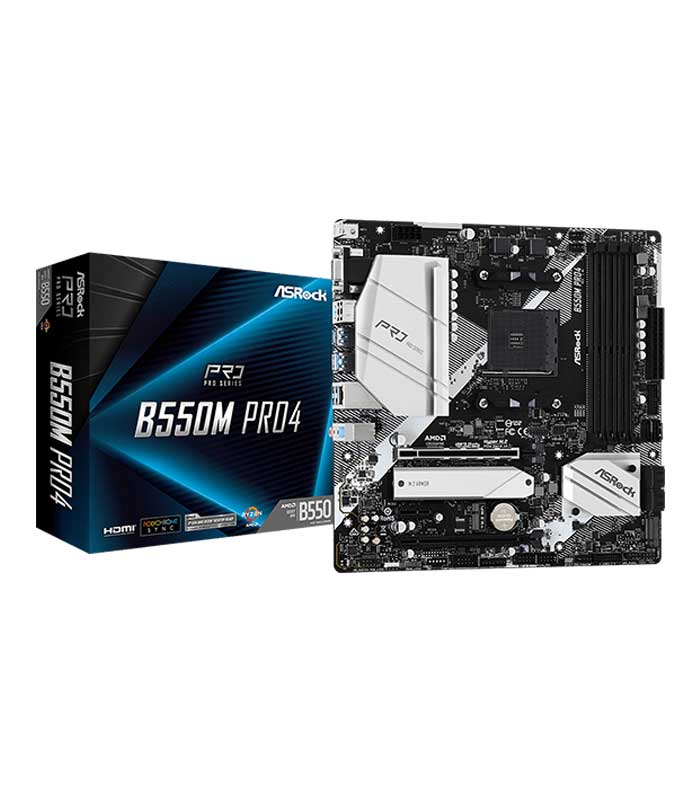

| Unique Feature |
ASRock USB 3.2 Gen2 |
|
– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) |
|
– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) |
|
ASRock Super Alloy |
|
– XXL Aluminum Alloy Heatsink |
|
– Premium 50A Power Choke |
|
– Sapphire Black PCB |
|
– High Density Glass Fabric PCB |
|
– 2oz Copper PCB |
|
ASRock Steel Slot Gen4 |
|
ASRock Full Coverage M.2 Heatsink |
|
ASRock Hyper M.2 (PCIe Gen4x4) |
|
ASRock POST Status Checker (PSC) |
|
ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
|
ASRock Live Update & APP Shop |
| CPU |
– Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* |
|
– Digi Power design |
|
– 8 Power Phase design |
|
*Not compatible with AMD Athlon™ Processors. |
| Chipset |
– AMD B550 |
| Memory |
– Dual Channel DDR4 Memory Technology |
|
– 4 x DDR4 DIMM Slots |
|
– AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* |
|
– AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* |
|
– AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* |
|
– AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* |
|
– AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* |
|
– Max. capacity of system memory: 128GB** |
|
– Supports Extreme Memory Profile (XMP) memory modules |
|
– 15μ Gold Contact in DIMM Slots* |
| BIOS |
– 256Mb AMI UEFI Legal BIOS with GUI support |
|
– Supports “Plug and Play” |
|
– ACPI 5.1 compliance wake up events |
|
– Supports jumperfree |
|
– SMBIOS 2.3 support |
|
– CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment |
| Graphics |
– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* |
|
– DirectX 12, Pixel Shader 5.0 |
|
– Shared memory default 2GB. Max Shared memory supports up to 16GB.** |
|
– Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 |
|
– Supports Triple Monitor |
|
– Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz |
|
– Supports DisplayPort 1.4 with max. resolution up to 5K (5120×2880)@120Hz |
|
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz |
|
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) |
|
– Supports HDR (High Dynamic Range) with HDMI 2.1 |
|
– Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports*** |
|
– Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports |
|
– Supports Microsoft® PlayReady |
|
*Actual support may vary by CPU |
|
**The Max shared memory 16GB requires 32GB system memory installed. |
|
***Picasso supports HDCP 2.2 with HDMI 2.0 Port |
| Audio |
– 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) |
|
– Premium Blu-ray Audio support |
|
– Supports Surge Protection |
|
– PCB Isolate Shielding |
|
– Individual PCB Layers for R/L Audio Channel |
|
– Nahimic Audio |
| LAN |
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
|
– Realtek RTL8111H |
|
– Supports Wake-On-LAN |
|
– Supports Lightning/ESD Protection |
|
– Supports Energy Efficient Ethernet 802.3az |
|
– Supports PXE |
| Slots |
AMD Ryzen series CPUs (Vermeer and Matisse) |
|
– 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* |
|
AMD Ryzen series APUs (Cezanne and Renoir) |
|
– 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* |
|
AMD Ryzen series APUs (Picasso) |
|
– 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)* |
|
– 1 x PCI Express 3.0 x1 Slot |
|
– Supports AMD Quad CrossFireX™ and CrossFireX™ |
|
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
*Supports NVMe SSD as boot disks |
| Storage |
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* |
|
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)** |
|
– 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** |
|
*M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled. |
|
**Supports NVMe SSD as boot disks |
| Connector |
– 1 x COM Port Header |
|
– 1 x SPI TPM Header |
|
– 1 x Power LED and Speaker Header |
|
– 2 x RGB LED Headers* |
|
– 2 x Addressable LED Headers** |
|
– 1 x CPU Fan Connector (4-pin)*** |
|
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
|
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
|
– 1 x 24 pin ATX Power Connector |
|
– 1 x 8 pin 12V Power Connector |
|
– 1 x Front Panel Audio Connector |
|
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
|
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
*Support in total up to 12V/3A, 36W LED Strip |
|
**Support in total up to 5V/3A, 15W LED Strip |
|
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
|
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
|
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
|
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Rear Panel I/O |
– Antenna Bracket |
|
– 1 x PS/2 Mouse/Keyboard Port |
|
– 1 x D-Sub Port |
|
– 1 x HDMI Port |
|
– 1 x DisplayPort 1.4 |
|
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) |
|
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) |
|
– 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) |
|
– 2 x USB 2.0 Ports (Supports ESD Protection) |
|
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
|
– HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI |
Software |
|
– ASRock Motherboard Utility (A-Tuning) |
|
– ASRock XFast LAN |
|
UEFI |
|
– ASRock Full HD UEFI |
|
– ASRock Instant Flash |
|
*These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD |
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories |
– Quick Installation Guide, Support CD, I/O Shield |
|
– 2 x SATA Data Cables |
|
– 2 x Screws for M.2 Sockets |
| Hardware Monitor |
– Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
|
– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
|
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans |
|
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
|
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP |
| Form Factor |
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
|
– Solid Capacitor design |
|
– 2oz Copper PCB |
| OS |
– Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications |
– FCC, CE |
|
– ErP/EuP ready (ErP/EuP ready power supply is required) |
