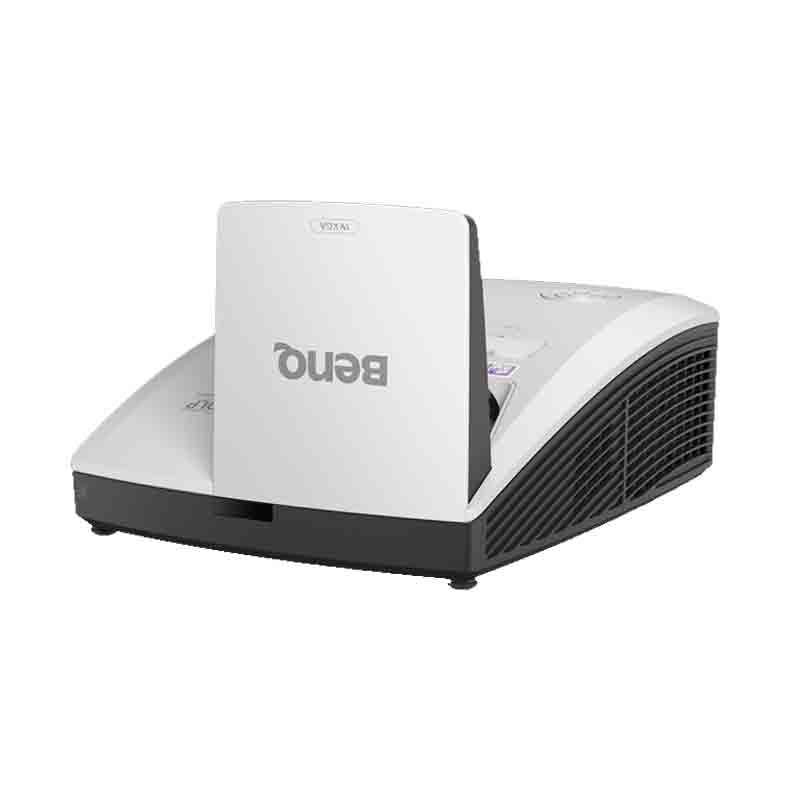

BenQ MW855UST+ 3500 lms, WXGA Meeting Room Projector
Image Display
| Display System | 0.65″ DC3 DMD DLP |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Maximum: WUXGA – 1920 x 1200 |
| Maximum Brightness | 3500 Lumens (ANSI) |
| Offset | 122% ± 5% |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 10,000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15 to 102 kHz |
| Vertical: 23 to 120 Hz |
Lens
| Focus | Manual |
| Lens | f/2.5 (f = 5.1 mm) |
| Lens Shift | Vertical: ± 2% |
| Optical Zoom | None |
| Throw Distance | 11.4 – 17.3″ / 29 – 43.9 cm |
| Throw Ratio | 0.35:1 |
| Projection Size | 80 – 100″ / 203.2 – 254.0 cm |
Features
| Keystone Correction | Horizontal: ± 15° |
| Vertical: ± 15° | |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes |
| Speaker Power | 20W |
Input/Output Connectors
| Inputs/Outputs | 2 x HDMI Audio, Video Input |
| 1 x DE-15/DB-15 (VGA) Video Input | |
| 1 x DE-15/DB-15 (VGA) Video Output | |
| 1 x RCA (Composite) Video Input | |
| 1 x 2RCA Audio Input | |
| 1 x 1/8″ / 3.5 mm Mini Audio Input | |
| 1 x 1/8″ / 3.5 mm Mini Audio Output | |
| 1 x RJ45 (Ethernet) LAN | |
| 1 x USB-A 2.0 Power | |
| 1 x USB-B 2.0 Service Input | |
| 1 x Mini-USB 2.0 Control | |
| 1 x DE-9/DB-9 (RS-232) Control Input |
Hardware
| Wireless LAN / Wi-Fi | No, Optional Adapter Available |
| Bluetooth | None |
General
| Light Source | Lamp |
| Lamp Power | 240 W |
| Expected Lamp Life | Full Brightness: 5000 Hours |
| Medium Brightness: 8000 Hours | |
| Low Brightness: 12,000 Hours | |
| Fan Noise | Full Brightness: 34 dB |
| Low Brightness: 29 dB | |
| Security | Cable Lock Slot |
| Security Bar | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 350 W |
| Medium Brightness: 320 W | |
| Low Brightness: 260 W | |
| Standby Mode (Lamp Off): < 2 W | |
| Operating Altitude | 0.0 to 9842′ / 0 to 3000 m |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 10 to 90% |
| Storage Humidity | 10 to 90% |
| Dimensions (W x H x D) | 11.3 x 8.1 x 14.7″ / 287.5 x 206.9 x 373.3 mm |
| Weight | 11 lb / 5 kg |
