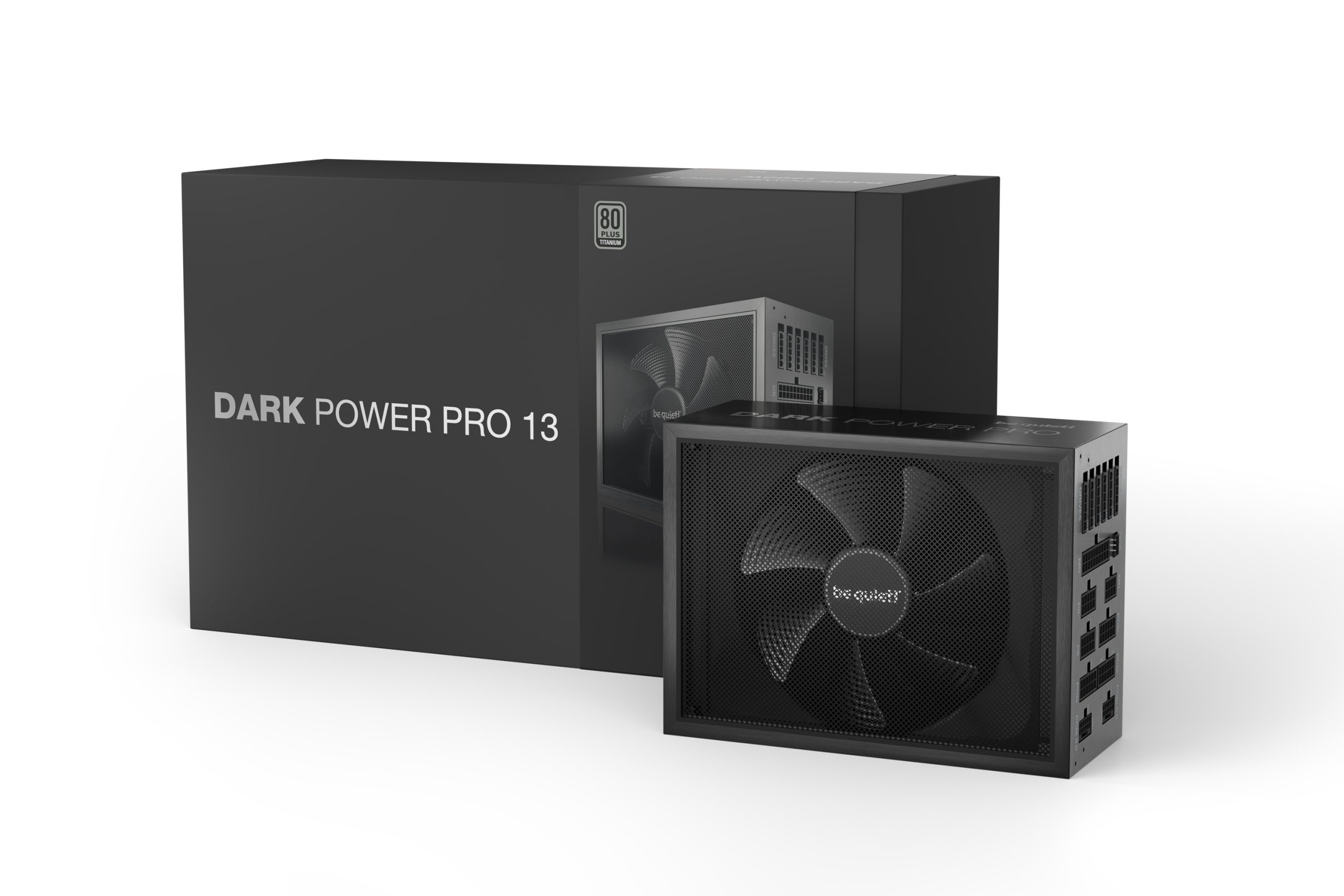

DARK POWER PRO 13

1300W

1.454,00 $

Guaranteed Safe Checkout

Features & Compatibility

DARK POWER PRO 13

1300W

Cutting edge technologie and performance

The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency, world-class performance and ATX 3.0 compliance for next-gen GPU compatibility.

  • 80 PLUS Titanium efficiency (up to 94.4%)
  • ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
  • Handles massive power excursions
  • Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability
  • Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
  • Overclocking key switches between six 12V rails and one massive 12V rail
  • Aluminum case and modular individually sleeved cables for magnificent appearance



80 PLUS® TITANIUM CERTIFIED

The highest efficiency certificate available

Dark Power Pro 13 1300W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 94.4%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.

FUTURE-PROOF YOUR SYSTEM

Fulfills all ATX 3.0 specifications

Dark Power Pro 13 1300W is an ATX 3.0 PSU and comes with both native integration of the two 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 6 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.

THE NEW STANDARD OF POWER

For massive transient loads

Dark Power Pro 13 offers 1300W of continuous power with 6 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power Pro 13 1300W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

STATE-OF-THE-ART DIGITAL TECHNOLOGY

Rock-steady signal stability and efficiency

Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge LLC technology results in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

FRAMELESS SILENT WINGS FAN

Patented fan technology for virtually inaudible operation

The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.

INNOVATIVE COOLING CONCEPT

For a longer lifespan

The split fan inlet of the Dark Power Pro 13 1300W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.

READY FOR EXTREME OVERCLOCKING

Pushing the performance of your PSU to the max

Dark Power Pro 13 1300W is particularly suitable for liquid nitrogen or helium overclocking, thanks to its state-of-the-art digital regulation. The overclocking key empowers you to manually switch between the default six 12V-rail mode and the alternative massive single-rail operation.

JAPANESE 105°C CAPACITORS

A testament to high quality

Only the best components are used in Dark Power Pro 13 1300W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.

HIGHEST CONVENIENCE

Modular cables for maximum utility

Individually sleeved cables of up to 120cm and cable combs simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling – even in the largest PC cases.

MAGNIFICENT APPEARANCE

No compromises

Dark Power Pro 13 1300W not only captivates with its inner values. An extraordinary aluminum case and individually sleeved cables emphasize the highest standards of Dark Power Pro 13 1300W also on the outside.



General data



Model Dark Power Pro 13 1300W
Continuous power (W) 1300
Peak power (W) 1400
Form factor Version 3.0
Form factor EPS 12V Version 2.92
Topology Full bridge + LLC + SR + DC/DC
Digitally controlled
Voltage (Vac) 115 – 240
Frequency (Hz) 50 – 60
Input current (A) 15 / 9
Power factor at 100% load >0.99
Modern standby
Power consumption in standby (W) <0.06
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 50



Infographics



Efficiency



80 PLUS certification Titanium
Efficiency (%) at 230V, 2% load 73.1
Efficiency (%) at 230V, 10% load 91.6
Efficiency (%) at 230V, 20% load 93.6
Efficiency (%) at 230V, 50% load 94.4
Efficiency (%) at 230V, 100% load 92.8



Fan and cooling technology



Fan Silent Wings
Fan size (mm) 135
Bearing technology FDB
Motor technology 6-pole fan motor
Max. fan speed (rpm) 2400
dB(A) at 10% load 10.2
dB(A) at 20% load 10.2
dB(A) at 50% load 10.2
dB(A) at 100% load 23.2



Output



Multi-rail operation (12V rails) 6
12V single rail operation
Overclocking key
+3.3V (A) 25
+5V (A) 25
+12V1 (A) 35
+12V2 (A) 35
+12V3 (A) 40
+12V4 (A) 40
+12V5 (A) 55
+12V6 (A) 55
-12V (A) 0.5
+5Vsb (A) 3.5
Max. combined power 12V (W) 1300
Max. combined power 12VHPWR (W) 800
Max. combined power 3.3V + 5V (W) 150
Hold-up time at 100% load (ms) 18
Hold-up time at 80% load (ms)
Power good signal (ms) 100-150



Cables and connectors



Modular cables
Sleeved cables
Flat cables
Maximum cable length (cm) 105
Cable length to motherboard (cm) 60
No. of cables 16
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU)
12VHPWR cables 2
PCI-e 6+2-pin (GPU) 6
PCI-e 6-pin (GPU)
SATA 16
PATA 5
FDD (Floppy)



Protection



OTP (over temperature protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush protection)



Safety certification



BSMI
CB
CCC
CE
cRUus
cTUVus
CU
FCC
RCM
TÜV
UKCA



Environmental directives



Energy Star 8.0
ErP
WEEE
RoHS
Triman



Scope of delivery



Thumb screws
Screws
Cable ties
Velcro cable ties
User manual languages CN, DE, EN, ES, FR, JP, PL, RU, TW, KR
OCK slot bracket with switch / OCK jumper
SFX-to-ATX adapter bracket



Casing

Dimensions without cable (L x W x H), (mm) 200 x 150 x 86
Weight (kg) 2.41
Color Black



Logistics data and RRP



Article number BN331
EAN code 4260052189368
Dimensions, package (L x W x H), (mm) 417 x 253 x 152
Gross weight, package (kg) 6.8
Pieces per packaging unit 2
Dimensions, shipping box (L x W x H), (mm) 440 x 325 x 283
Gross weight, shipping box (kg) 14.4
