Epson EH-TW5600 Projector
Creating the big screen experience is easier and more affordable than ever before with this Full HD 3D and 2D projector. Set up is effortless with lens shift, keystone correction and 1.6x manual zoom. Get the whole package: images are bright with 2,500 lumens, 3LCD technology delivers vivid colors, and the dynamic contrast ratio of 35,000:1 reveals detailed shadows.
Make every moment count
Whether you’re catching sports, watching a classic movie or playing a game, with Epson’s Full HD home cinema projector you can create the big screen experience with images reaching up to 300 inches (762cm). It can handle the most atmospheric scenes with clearly defined shadow detail and deep blacks, while also remaining clear, sharp and smooth during the fastest, high-action scenes with Detail Enhancement and frame interpolation.
Simple set up
Here’s the solution for a stress-free set up: the slim and lightweight EH-TW5600 is easy to move, plus the vertical lens shift, 1.6x zoom and keystone correction ensure it’s fuss free to position the picture. Accessing your entertainment is easy too with two HDMI inputs (including one MHL) for connecting DVD players, games consoles and more.
11 years of entertainment1
There’s a reason why Epson’s 3LCD technology has become so renowned; it radiates exceptionally bright yet colorful images by producing an equally high White and Color Light Output. Even in bright living rooms, this powerful yet affordable Full HD 1080p projector delivers 2,500 lumens and a 35,000:1 contrast ratio.
Key Features
- Enjoy the big screen experience: Supersize your favorite films, games and sporting events at home
- Easy set up: Lens shift, 1.6x zoom, horizontal and vertical keystone correction
- Smooth, fast-moving action: Frame interpolation and Detail Enhancement
- Watch a movie a day for the next 11 years1: 7,500 hours lamp life
- Bright colors: Equally high White and Color Light Output of 2,500 lumens
Epson EH-TW5600 Projector Specification
| Specifications | |
| Product Code | EH-TW5600 |
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0.61 inch with MLA (D10) |
| Color Light Output | 2,500 Lumen- 1,650 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output | 2,500 Lumen – 1,650 Lumen (economy) In accordance with ISO 21118:2012 |
| Resolution | Full HD 1080p, 1920 x 1080, 16:9 |
| High Definition | Full HD 3D |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 35,000 : 1 |
| Light source | Lamp |
| Lamp | UHE, 200 W, 4, 500 h durability, 7,500 h durability (economy mode) |
| Keystone Correction | Auto vertical: ± 30 °, Manual horizontal ± 30 ° |
| Color Processing | 10 Bits |
| 2D Vertical Refresh Rate | 192 Hz – 240 Hz |
| 3D Vertical Refresh Rate | 400 Hz – 480 Hz |
| Colour Reproduction | Up to 1.07 billion colors |
| Projection Ratio | 1.33 – 2.16:1 |
| Zoom | Manual, Factor: 1.6 |
| Lens | Optical |
| Lens Shift | Manual |
| Image Size | 30 inches – 300 inches |
| Projection Distance Wide/Tele | 2.35 m – 3.82 m ( 80 inch screen) |
| Projection Lens F Number | 1.51 – 1.99 |
| Focal Distance | 18.2 mm – 29.2 mm |
| Focus | Manual |
| Offset | 10 : 1 |

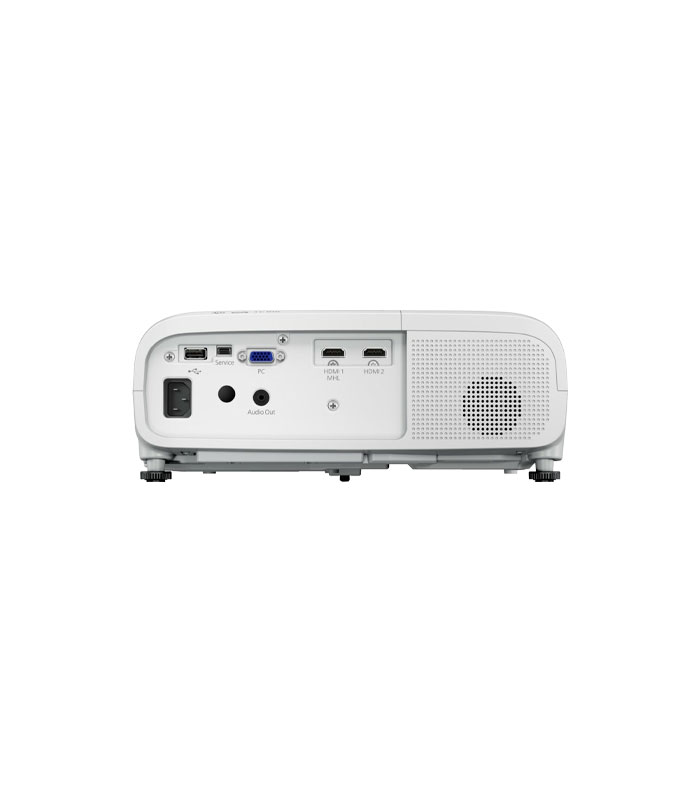

| Interfaces | VGA in, HDMI in (2x), MHL, USB 2.0 Type A, USB 2.0 Type B (Service Only), Stereo mini jack audio out |
| Epson iProjection App | n/a |
| Security | Kensington lock, Security cable hole |
| 3D | Active |
| 2D Color Modes | Dynamic, Natural, Cinema, Bright Cinema |
| 3D Color Modes | 3D Dynamic, 3D Cinema |
| 3D Supported formats | Side by side, Top and bottom |
| Features | 3D depth adjustment, Built-in speaker, Epson Super White, Frame interpolation, Horizontal and vertical keystone correction, MHL audio/video interface, Quick Corner |
| Video Color Modes | Cinema, Dynamic, Natural, Bright Cinema |
| Energy Use | 296 Watt, 227 Watt (economy), 0.2 Watt (standby), On mode power consumption as defined in JBMS-84 256 Watt |
| Supply Voltage | AC 100 V – 240 V, 50 Hz – 60 Hz |
| Product dimensions | 309 x 285 x 122 mm (Width x Depth x Height) |
| Product weight | 3.4 kg |
| Noise Level | Normal: 37 dB (A) – Economy: 27 dB (A) |
| Temperature | Operation 5° C – 35° C, Storage -10° C – 60° C |
| Humidity | Operation 20% – 80%, Storage 10% – 90% |
| Options | 3D active shutter glasses, Air filter |
| Loudspeaker | 10 Watt |
| What’s in the box | Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD), Warranty card |
| Color | White |
