| Specifications |
| Product Code |
EH-TW610 |
| Projection System |
3LCD Technology, RGB liquid crystal shutter |
| LCD Panel |
0.61 inch with MLA (D10) |
| Color Light Output |
3,000 Lumen- 1,925 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output |
3,000 Lumen – 1,925 Lumen (economy) In accordance with ISO 21118:2012 |
| Resolution |
Full HD 1080p, 1920 x 1080, 16:9 |
| High Definition |
Full HD |
| Aspect Ratio |
16:9 |
| Contrast Ratio |
10,000 : 1 |
| Light source |
Lamp |
| Lamp |
UHE, 210 W, 4, 500 h durability, 7,500 h durability (economy mode) |
| Keystone Correction |
Auto vertical: ± 30 °, Manual horizontal ± 30 ° |
| Color Processing |
10 Bits |
| 2D Vertical Refresh Rate |
192 Hz – 240 Hz |
| Color Reproduction |
Up to 1.07 billion colors |
| Projection Ratio |
1.02 – 1.23:1 |
| Zoom |
Manual, Factor: 1.2 |
| Lens |
Optical |
| Image Size |
30 inches – 300 inches |
| Projection Distance Wide/Tele |
1.35 m – 1.64 m ( 60 inch screen) |
| Projection Lens F Number |
1.58 – 1.7 |
| Focal Distance |
18.2 mm – 29.2 mm |
| Focus |
Manual |
| Offset |
13.9 : 1 |
| USB Display Function |
2 in 1: Image / Mouse |

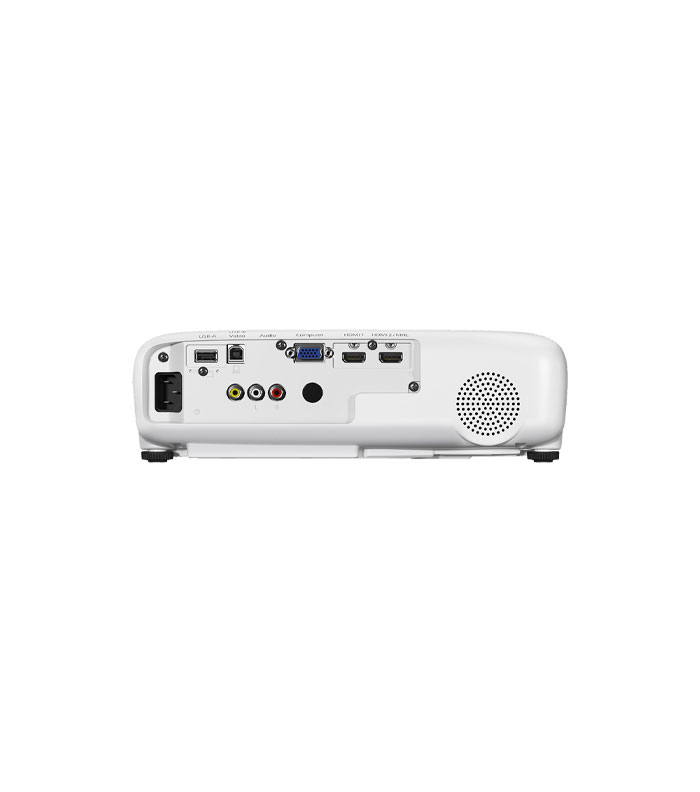

| Interfaces |
USB 2.0 Type A, USB 2.0 Type B, Wireless LAN IEEE 802.11b/g/n, VGA in, HDMI in (2x), Composite in, MHL, Cinch audio in |
| Epson iProjection App |
Ad-Hoc / Infrastructure |
| Security |
Kensington lock, Security cable hole, Password protection |
| 3D |
No |
| 2D Color Modes |
Dynamic, Cinema, Bright Cinema |
| Features |
Automatic keystone correction, Built-in speaker, Horizontal and vertical keystone correction, MHL audio/video interface, Quick Corner, Split-Screen-Function |
| Video Color Modes |
Cinema, Dynamic, Game, Bright Cinema |
| Energy Use |
298 Watt, 219 Watt (economy), 0.2 Watt (standby), On mode power consumption as defined in JBMS-84 264 Watt |
| Supply Voltage |
AC 100 V – 240 V, 50 Hz – 60 Hz |
| Product dimensions |
302 x 252 x 92 mm (Width x Depth x Height) |
| Product weight |
2.7 kg |
| Noise Level |
Normal: 37 dB (A) – Economy: 28 dB (A) |
| Temperature |
Operation 5° C – 35° C, Storage -10° C – 60° C |
| Humidity |
Operation 20% – 80%, Storage 10% – 90% |
| Options |
Air filter, Soft carry case |
| Loudspeaker |
2 Watt |
| What’s in the box |
Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD), Warranty card |
| Color |
White |
