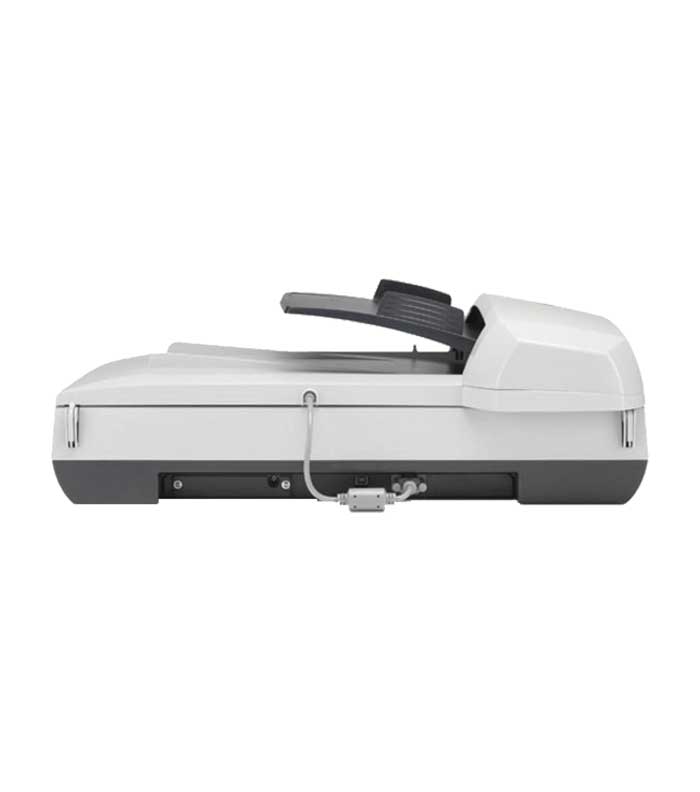

HP 8270 Color Scanner

Guaranteed Safe Checkout

Features & Compatibility

Product Name Model Number
HP Scanjet 8270 scanner L1975A
Scanner type Flatbed with transparent materials adapter (TMA)
Weight, without the lid 2.79 kilograms (6.2 pounds)
Maximum original size 296 x 494 x 73 mm (11.7 x 19.8 x 2.9 inches)
Scanning element Charged-coupled device
Interface USB 2.0 high-speed
Optical resolution 4800 dpi
Selectable resolution 12 to 999,999 dpi at 100 percent scaling
AC line voltage 100 to 240 V, 50/60 Hz
Power consumption and regulatory information For power consumption data, see the regulatory_supplement.htm file on the HP Photosmart Software CD.
Media types and capacity Slides: Up to three 35 mm slides mounted on a frame that is 1.05 to 1.9 mm (0.04 to 0.07 inch) thick and 49.8 to 50.8 mm (1.96 to 2.0 inch) on any side

Negatives: Up to four frames on a 35 mm negative strip

Size 565 x 320 x 64 mm (22.2 x 12.6 x 2.5 inches)
Weight 1.6 kilograms (3.5 pounds)
Power requirements 16 Vdc, 425 mA, 6.8 watts (supplied by scanner)
Size 584 x 318 x 89 mm (23.0 x 12.5 x 3.5 inches)
Weight (with TMA) 2.7 kilograms (6.0 pounds)
Optical resolution 600 dpi
Paper tray capacity 50 pieces of 75 g/m2 (20 pound bond)
Maximum paper size 216 x 356 mm (8.5 x 14 inches)
Minimum paper size 89 x 127 mm (3.5 x 5 inches)
Maximum paper weight 90 g/m2 (24 pound)
Power requirements 32 Vdc, 1200 mA

16 Vdc, 425 mA

3300 mVdc, 3.3 Vdc, 300 mA (supplied by scanner)

Temperature 10 to 35 degrees C (50 to 95 degrees F)
Relative humidity 15 to 80 percent non-condensing
Temperature -40 to 70 degrees C (-40 to 158 degrees F)
Relative humidity Up to 90 percent non-condensing
