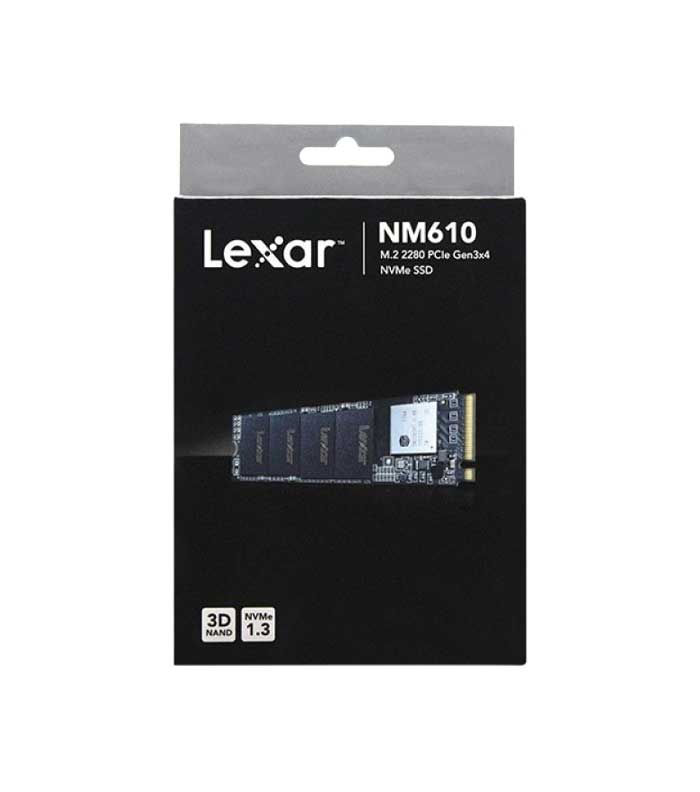

Lexar 500GB NVMe 2280 – LNM610-500RB
Designed to elevate your PC experience with faster load times and transfer speeds from boot-up to shut down, the Lexar NM610 M.2 2280 PCIe Gen3x4 NVMe Solid-State Drive (SSD) will put you in the computing fast lane with speeds up 2100MB/s read 1. It’s supported by the PCIe Gen3x4 NVMe 1.3 technology standard and built with the latest 3D NAND flash.
Move beyond the pace of a SATA SSD’s with an upgrade to the Lexar NM610 and get 3.5x the speed of SATA-based SSD3. With PCIe Gen3x4 NVMe 1.3 standard, and speeds up to 2100MB/s read, you will feel the improved performance from boot-ups, software load times, and transfers giving you maximum efficiency without the constant slowdowns. The NM610 is built with 3D NAND flash inside.
With sequential read speeds of up to 2100MB/s1, you’ll enjoy better all-around performance for your PC. That’s faster boot-ups, data transfers and application load times compared to a SATA SSD3.
Unlike traditional hard disk drives, the NM610 has no moving parts, so it’s less likely to fail. On top of that, it’s also shock and vibration resistant2, making it one robust and reliable SSD.
Reduced power consumption and cooler operation makes the battery life last longer than an HDD.
All Lexar product designs undergo extensive testing in the Lexar Quality Labs, facilities with more than 1,100 digital devices, to ensure performance, quality, compatibility, and reliability.
Lexar 500GB NVMe 2280 – LNM610-500RB Specification
Form Factor | M.2 2280 |
Interface | PCIe Gen3x4 |
Performance | Sequential read up to 2100MB/s read |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Dimension (L x W x H) | 80 mm x 22 mm x 2.25 mm / 3.15” x 0.87” x 0.09” |
Weight | 9 grams |
Warranty | 3 year limited warranty |
Shock Resistant | 1500 G, duration 0.5ms, Half Sine Wave |
Vibration Resistant | 10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z) |
TBW | 1 TB: 500 TB, 500 GB: 250 TB, 250 GB: 125 TB |
DWPD | 1 TB: 0.46, 512 GB: 0.46, 256 GB: 0.46 |
NAND flash | 3D NAND |
MTBF | 1,500,000 Hours |
