SPECIFICATIONS
Compatible in all systems that accept an NVIDIA RTX A4000
Architecture | NVIDIA Ampere Architecture |
Process Size | 8nm |
Transistors | 17.4 Billion |
Die Size | 392.5 mm2 |
CUDA Cores | 6144 |
Tensor Cores | 192 |
RT Cores | 48 |
Single Precision Performance | 19.2 TFLOPS |
RT Core Performance | 37.4 TFLOPS |
Tensor Performance | 153.4 TFLOPS |
GPU Memory | 16 GB GDDR6 with ECC |
Memory Interface | 256-bit |
Memory Bandwidth | 448 GB/sec |
Display Connectors | 4x DisplayPort 1.4a |
NVENC | NVDEC | 1x | 1x (+ AV1 decode) |
System Interface | PCI Express 4.0 x16 |
Form Factor | 4.4” H x 9.5” L Single Slot |
Thermal Solution | Active Fansink |
Maximum Power Consumption | 140 W NVIDIA Quadro and RTX Power Guidelines |
Power Connector | 1x 6-pin PCIe |
Max Digital Resolution | 7680 x 4320 x36 bpp at 60 Hz NVIDIA Quadro and RTX Display Resolution Support |
NVIDIA 3D Vision and 3D Vision Pro | Support via 3-pin mini DIN |
Frame Lock | Optional NVIDIA Quadro Sync II |
AVAILABLE ACCESSORIES
- DP-HDMI-THREE-PCK connects the NVIDIA RTX A4000 to HDMI displays at resolutions up to 4K with PNY Part Number DP-HDMI-THREE-PCK. The three included DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.
- DP-HDMI-SINGLE-PCK connect the NVIDIA RTX A4000 to an HDMI display at resolutions up to 4K with PNY Part Number DP-HDMI-SINGLE-PCK. The included DisplayPort to HDMI adapter is recommended by NVIDIA, provides outstanding image quality, and is built to professional standards.
SUPPORTED PLATFORMS
- Microsoft Windows 11 (64-bit)
- Microsoft Windows 10 (64-bit)
- Red Hat Enterprise Linux 7.x
- SUSE Linux Enterprise Desktop 15.x
- OpenSuse 15
- Fedora 31
- Ubuntu 18.04
- FreeBSD 11.x
- Solaris 11
MINIMUM SYSTEM HARDWARE REQUIREMENTS
- Intel Core i5, i7, i9, or Xeon processor or later
- AMD Ryzen or Epyc class processor or later
- PCI Express 4.0 x16 (preferred) expansion slot
- System memory greater than or equal to GPU memory, twice the GPU memory recommended
- Internet connection for driver installation
- DisplayPort 1.4a (preferred), HDMI, or DVI compatible display(s)
PACKAGE CONTAINS

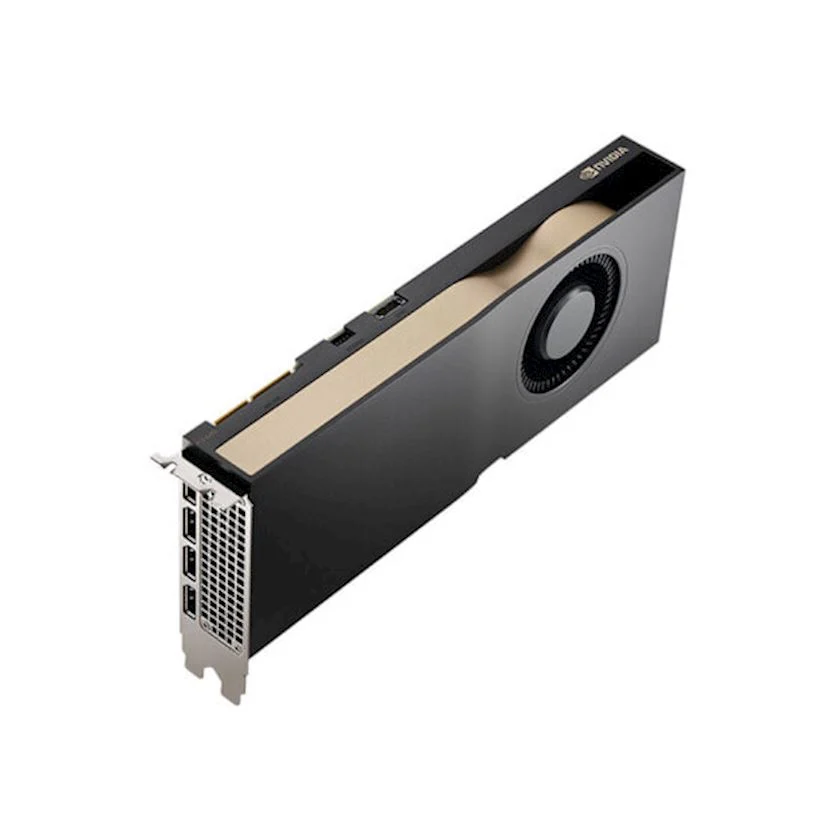

- NVIDIA RTX A4000 professional graphics card
- Auxiliary power cable
