SPECIFICATIONS

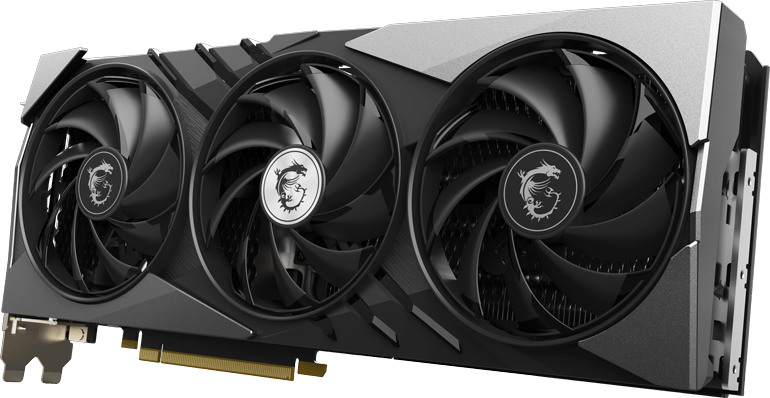

Model Name GeForce RTX™ 4070 Ti SUPER 16G GAMING X
SLIM
Graphics Processing Unit NVIDIA®
GeForce RTX™ 4070 Ti SUPER
Interface PCI Express®
Gen 4
Core Clocks
Extreme Performance: 2685 MHz (MSI
Center)
Boost: 2670 MHz
CUDA®
CORES 8448 Units
Memory Speed 21 Gbps
Memory 16GB GDDR6X
Memory Bus 256-bit
Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR and
8K@60Hz HDR and Variable Refresh Rate
(VRR) as specified in HDMI 2.1a)
HDCP Support Y
Power consumption 285 W
Power connectors 16-pin x 1
Recommended PSU 700 W
Card Dimension (mm) 307 x 125 x 51 mm
Weight (Card / Package) 1094 g / 1676 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC®
technology Y
Digital Maximum Resolution 7680 x 4320
FEATURES
TORX FAN 5.0
Fan blades linked by ring arcs and a fan cowl work together to
stabilize and maintain high-pressure airflow.
Airflow Control
Sections of different heatsink fins disrupt unwanted airflow
harmonics and reduce noise.
TRI FROZR 3
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances
heat dissipation all around the graphics card.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Metal Backplate
A sturdy backplate helps to strengthen the graphics card while a
flow-through design reduces trapped heat.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
Copper Baseplate
A solid nickel-plated copper baseplate transfers heat from the
GPU to all heat pipes for better cooling.
Core Pipe
Precision-machined heat pipes ensure max contact to the GPU
and spread heat along the full length of the heatsink.
