Patriot Signature Line 8GB DDR5 4800 UDIMM Desktop Memory
Patriot’s Signature Line DDR5 memory modules are designed to deliver an immense performance improvement for next generation Intel platforms. Requiring only 1.1V of power, Signature DDR5 modules consume less power and emit less heat despite the increased frequency and speed. Enhanced power improvements include an onboard Power Management IC (PMIC), which provides better control of local voltage regulation while delivering increased threshold protection, simultaneous monitoring, intelligent voltage, and power management. The Signature Line DDR5 series includes onboard thermal sensors to monitor and protect against thermal issues and better overall reporting. In addition, the latest on-die ECC (Error-Correcting Code) further enhances the accuracy of data-processing and your overall system’s stability. With limited lifetime warranty, Patriot’s Signature Line DDR5 RAM is the breakthrough choice for avid system integrators and those looking to expand their system’s memory performance. The Signature Line DDR5 memory modules offer a wide range of capacities and configurations, allowing users to get the most from the latest Intel platforms for the best compatibility
.
Patriot Signature Line 16GB DDR5 4800 UDIMM Desktop Memory Specification
Product Number | PSD58G480041 |
Description | Patriot Signature Series DDR5 8GB (1 x 8GB) 4800MHz UDIMM Single |
Certification | RoHS |
Product Warranty | Limited Lifetime Warranty |
EAN | 814914029176 |
Weight | 0.03 lbs / 17 gm |
Dimensions | 0.07”(L) x 5.24”(W) x 1.26”(H) 0.2 cm(L) x 13.3 cm(W) x 3.2 cm(H) |

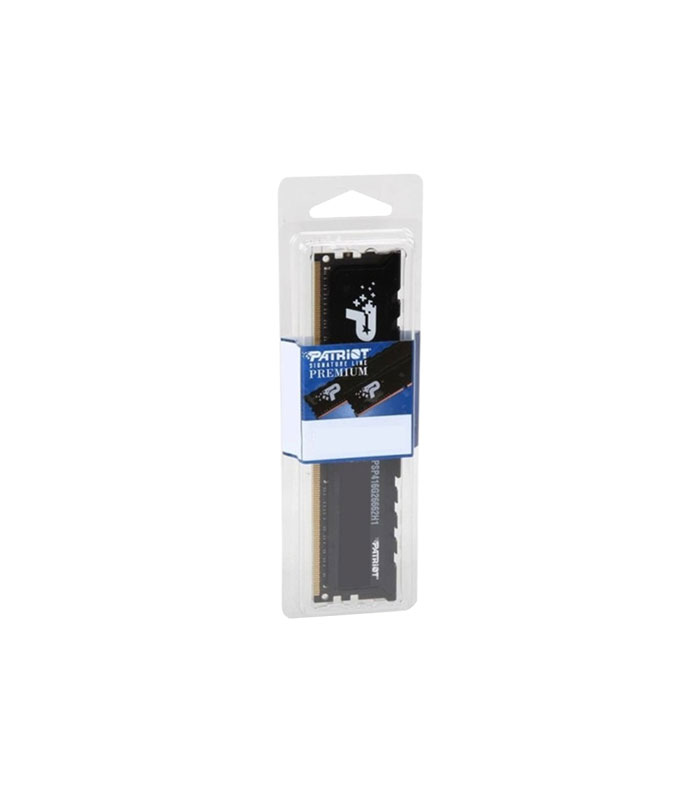

Package type | Blister |
FEATURES: • Product line: Signature Line
• Form Factor: 288-Pin Unbuffered Dual In-Line Memory
Module (UDIMM)
• Technology: DDR5 Non-ECC Unbuffered
• Capacity: 8GB (1x 8GB)
• Frequency: 4800MHz (PC5-38400)
• Timings: 40-40-40-77
• VDD Voltage: 1.1v
• On-Die ECC
• Single-sided Module
• RoHS Compliant
• Operating Temperature: 0°C – 85°C
• 100% Tested
• Limited Lifetime Warranty
