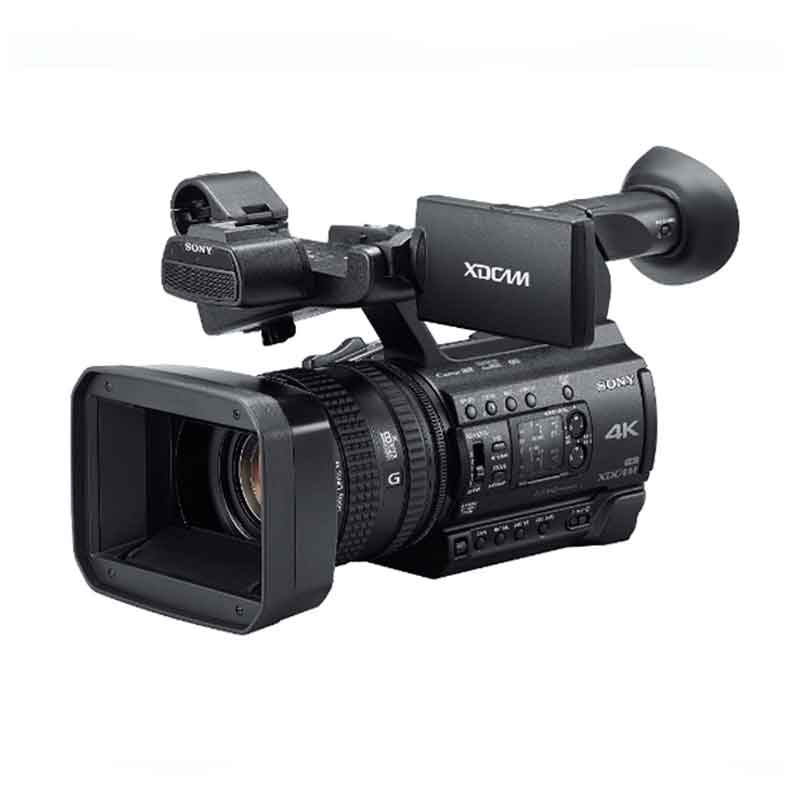

Sony PXW-Z150 4K XDCAM Camcorder
Specifications:
Imaging
| Sensor Resolution | Actual: 20 Megapixel |
| Effective: 14.2 Megapixel | |
| Sensor Type | 1″-Type CMOS Sensor |
| Image Stabilization | Optical in Integrated Lens |
| Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Capture Type | Video Only |
Exposure Control
| Shutter Speed | 1/10000 to 1/6 Second |
| Gain | -3 to 33 dB |
| Minimum Illumination | 1.7 Lux |
| White Balance | 2300 to 15,000K |
Lens
| Focal Length | 9.3 to 111.6mm (35mm Equivalent Focal Length: 29 to 348mm) |
| Optical Zoom Ratio | 12x |
| Max Digital Zoom | 48x |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | Not Specified by Manufacturer |
| Filter Size | 62 mm |
| Control Rings | Focus |
| Zoom | |
| Iris | |
| Focus Control | Autofocus |
| Manual Focus | |
| Internal Recording Modes | XAVC-L 4:2:0 8-Bit |
| 3840 x 2160 at 23.98/25/29.97 fps [60 to 100 Mb/s] | |
| 1920 x 1080i at 50/59.94 fps [25 to 50 Mb/s] | |
| 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [35 to 50 Mb/s] | |
| 1280 x 720 at 50/59.94 fps [50 Mb/s] | |
| MPEG-2 4:2:2 | |
| 1920 x 1080p at 23.98/25/29.97 fps [50 Mb/s] | |
| 1280 x 720 at 23.98/25/29.97/50/59.94 fps [50 Mb/s] | |
| AVCHD | |
| 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [24 to 28 Mb/s] | |
| Variable Frame Rates | 1080i: to 119.88 fps |
| 1080i: to 100 fps | |
| 1080i: 1 to 60 fps | |
| 1080i: 1 to 50 fps | |
| Recording Limit | Up to 750 Minutes |
| Built-In Microphone Type | Stereo |
| Audio Recording | 2-Channel 24-Bit 48 kHz |
| IP Streaming | None |
Interface
| Video I/O | 1 x RCA (Composite) Output |
| 1 x HDMI Output | |
| 1 x BNC (3G-SDI) Output | |
| Audio I/O | 1 x Stereo 2RCA Output |
| 1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output | |
| 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input | |
| Power I/O | 1 x Barrel Input |
| Other I/O | 1 x 2.5 mm Sub-Mini (LANC) Control |
| 1 x Micro-USB | |
| Wireless | 2.4 GHz Wi-Fi 4 (802.11n) |
| Global Positioning (GPS, GLONASS, etc.) | None |
Display
| Size | 3.5″ |
| Resolution | 1,560,000 Dot |
| Display Type | Articulating LCD |
Viewfinder
| Type | Built-In Electronic (OLED) |
| Size | 0.39″ |
| Resolution | 1,440,000 Dot |
Focus
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Manual Focus |
General
| Battery Type | Sony L-Series |
| Power Consumption | 6.6 W |
| Tripod Mounting Thread | 1/4″-20 Female |
| Accessory Mount | 1 x Intelligent Hot Shoe |
| Dimensions (W x H x D) | 6.7 x 7.4 x 14.6″ / 171.3 x 187.8 x 371.3Â mm |
| Weight | 5.1Â lb / 2.3Â kg |
