Innovative Mechanical Design | |
All-in-one design | The PowerBeam provides both the radio and antenna in the smallest possible footprint. |
Quick and easy installation | No fasteners are required for pole-mounting, and a single wall fastener (not included) |
Convenient alignment | The PowerBeam pivots on its ball joint for easy aiming |
Compact Form Factor | |
Efficient footprint | The radio and antenna are combined into a single body that takes up minimal space |
Versatile mounting | The PowerBeam can be mounted in almost any position needed for line of sight |
Aesthetics | The PowerBeam is small enough to blend discreetly into the background at a customer’s location |
Product Features | |
Innovative Mechanical Design | |
Superior RF Isolation | |
Advanced Software Technology | |
AirMAX Technology Included | |
Product Specifications | |
Processor | Atheros MIPS 74Kc, 560MHz |
Memory | 64MB DDR2, 8MB Flash |
Networking Interface | 1 x 10/100 Ethernet Port |
Power Supply | 24V, 0.5A PoE |
Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Supported Voltage Range | 20-26VDC |
Max. Power Consumption | 6W |
Operating Frequency | 5150-5250 MHz*, 5250-5350 Mhz*, 5470-5725 Mhz*, 5725-5850 Mhz |
Gain | 22 dBi |
Wind Loading | 210 N @ 200 km/h (47 lbf @ 125 mph) |
Wind Survivability | 200 km/h (125 mph) |
LEDs | (1) Power, (1) LAN, (4) WLAN |
Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
Channel Sizes | 5/8/10/20/30/40 MHz |
Polarization | Dual Linear |
Enclosure | Outdoor UV Stabilized Plastic |
Operating Temperature | -40 to 158deg F (-40 to 70deg C) |
Operating Humidity | 5 to 95% Non-Condensing |
Dimensions | 14.33 x 14.33 x 10.87″ / 364 x 364 x 276 mm |
Weight | 5.62 lb / 2.55 kg |
Product Includes | |
1 x Reflector | |
1 x Radome | |
1 x Antenna Feed | |
1 x Rear Housing | |
1 x Mounting Bracket | |
1 x Adjustment Bracket | |
1 x Pole Clamp | |
4 x Hex Bolts with Washer Set | |
2 x Flange Nuts | |
2 x Carriage Bolts | |
1 x PoE Adapter (24V, 0.5A) | |
1 x Power Cord | |
Quick Start Guide |

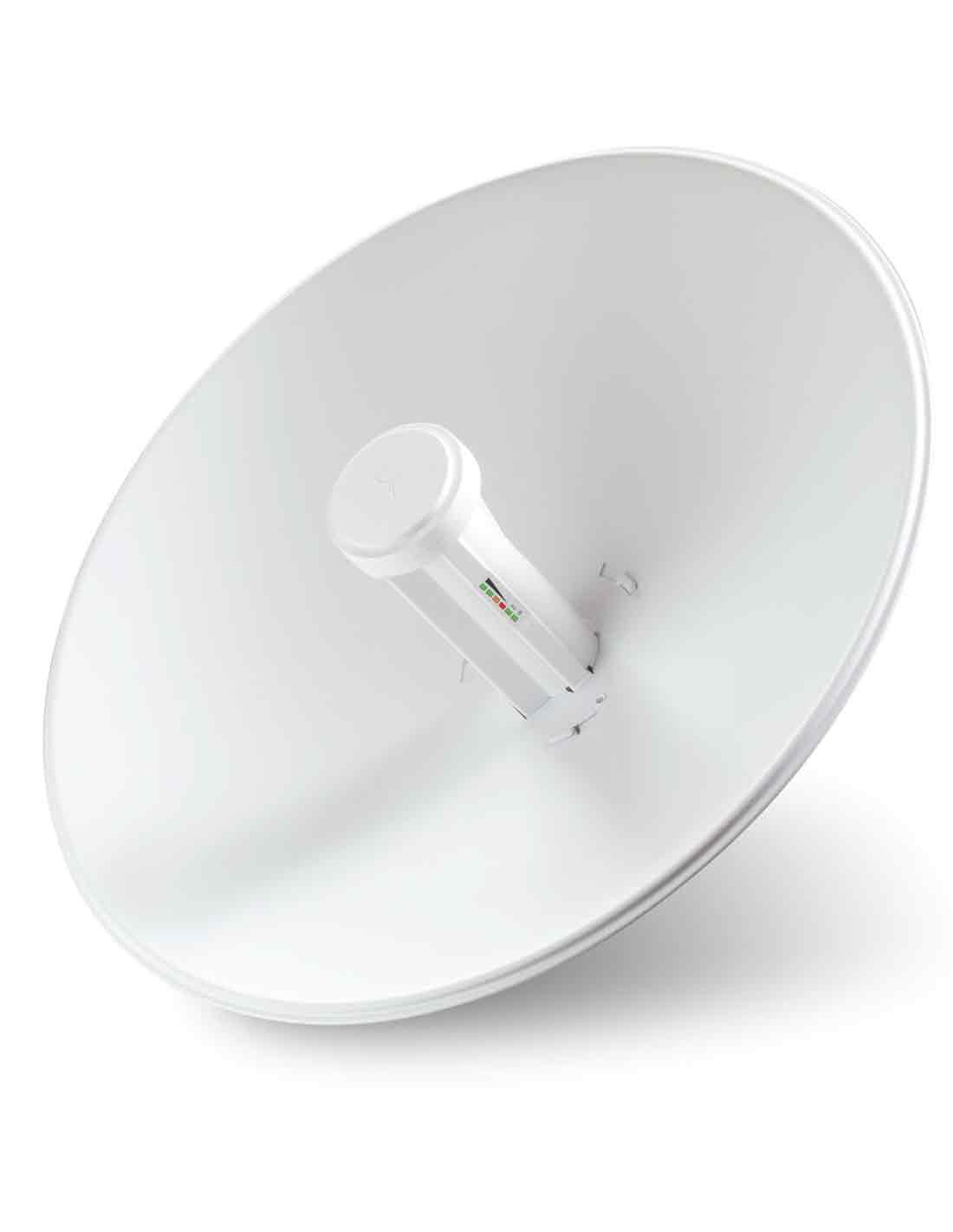

Ubiquiti PBE-M5-300 | PowerBeam M5
We offer Ubiquiti PBE-M5-300 which has high features.
In other words, specs are airMAX Technology, Atheros MIPS 74Kc, 560 MHz processor, 64MB DDR2, 8MB Flash memory, 10/100 Ethernet port, 5 GHz frequency, 150+ Mbps throughput, 20+ km range, etc.
Plus, we offer cheap so you will save money, if you order we will serve with free delivery in Dubai, by the way, our company is Ubiquiti distributor in UAE
