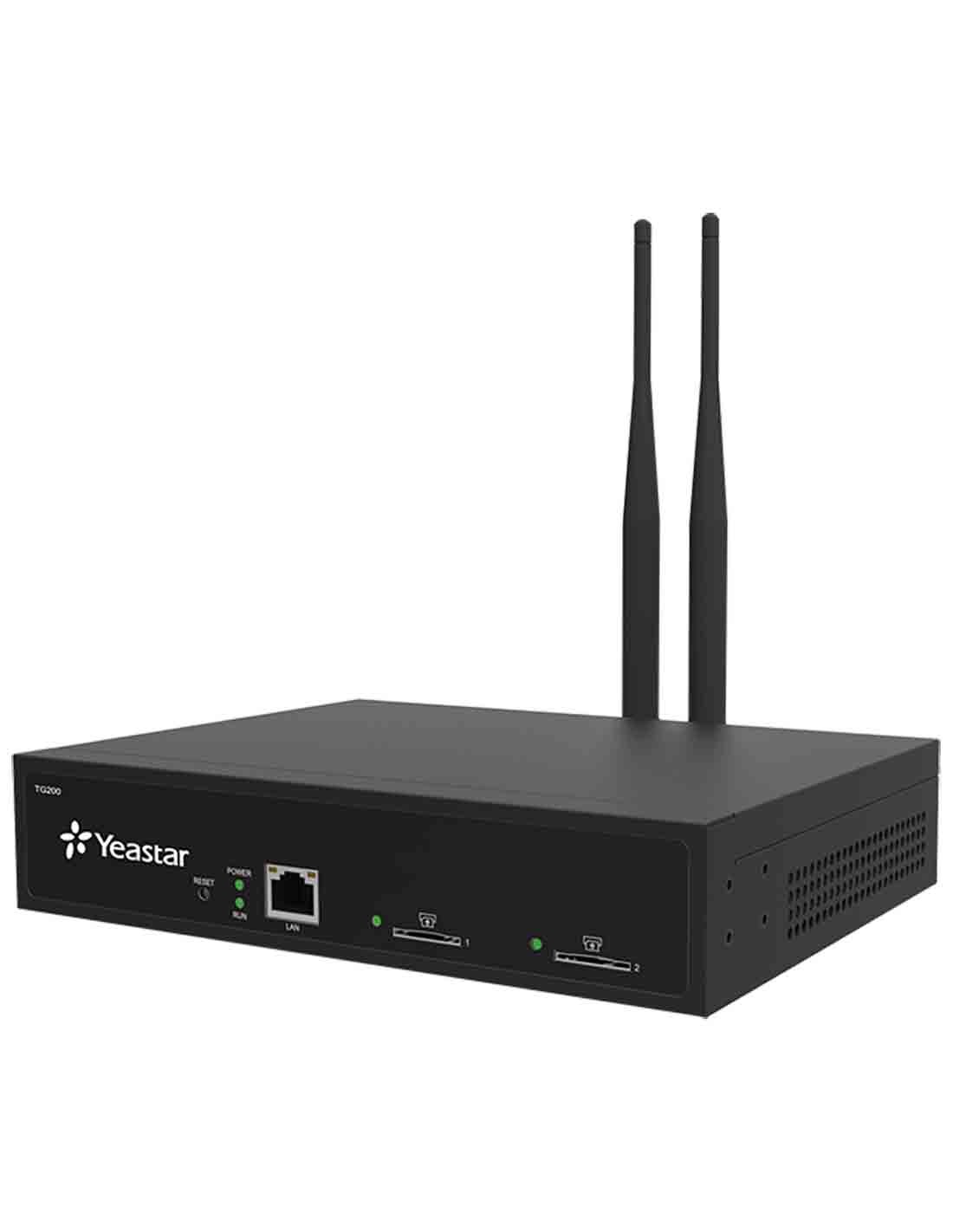

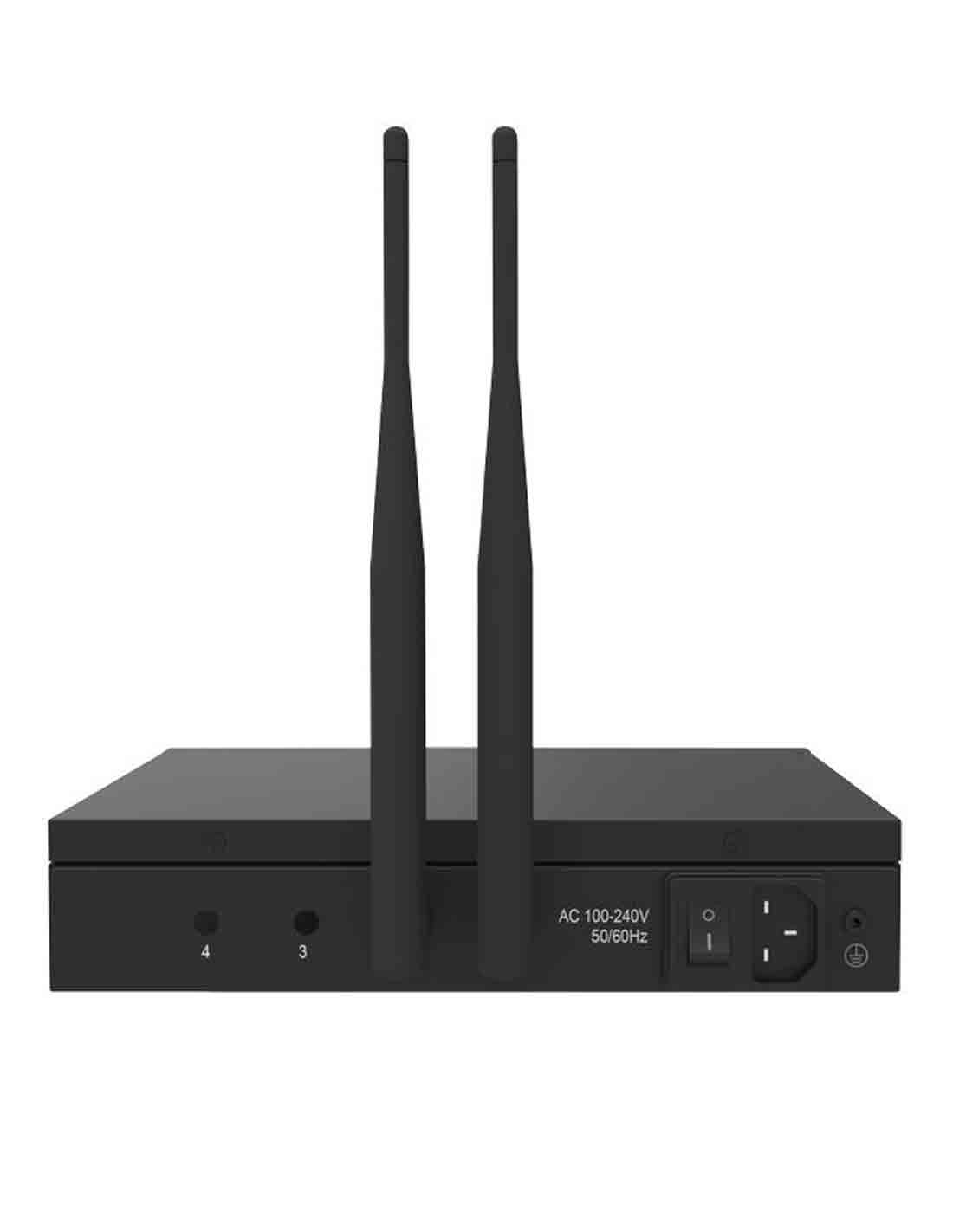

Yeastar TG200 VoIP GSM Gateway

Yeastar TG200 Series VoIP GSM Gateways

 Yeastar TG Series VoIP GSM Gateways connect GSM or WCDMA or 4G LTE to VoIP networks to provide two-way communication: GSM/3G/4G to VoIP and VoIP to GSM/3G/4G. This allows you to connect most IP-based telephone systems including Yeastar IP Phone Systems, and softswitches to a GSM or 3G WCDMA or 4G LTE; which can provide a sophisticated fallback solution when landlines go down, or be used to increase call traffic capacity by providing additional dial-tone.The Yeastar TG200 connects GSM to VoIP networks to provide two-way communication: GSM/3G/4G to VoIP and VoIP to GSM/3G/4G.

Yeastar TG200 Key Features:

• GSM Voice Calls
• VoLTE for HD Calls
• Maximum Cost Reduction
• Top Quality and Reliability
• Mobile Connectivity for SMB

It allows you to connect most IP-based telephone systems including Yeastar IP Phone Systems, and softswitches to a GSM or 3G WCDMA or 4G LTE; which can provide a sophisticated fallback solution when landlines go down, or be used to increase call traffic capacity by providing additional dial-tone.

Mobile Trunkings

Add GSM/WCDMA trunkings for business making high number of calls to mobile networks

Bulk SMS Service

Great tool for enterprises to manage customer relations and introduce special offers with a low cost

Interoperability

Interoperable with a broad list of softswitch, PBX, and IP-PBX like Elastix and Lync Server.

Yeastar TG200 Technical Specifications:

Interface:

• TG200: 2 GSM or 3G or 4G Channels
• TG100, TG200, TG400: 1 10/100 Mbps Ethernet Interface

Yeastar TG200 System Features:

• Mobile Ports Groups
• VoIP Trunk Group
• Incoming /Outgoing Routing rules
• Black List
• Hotline
• AutoCLIP
• Call Duration Limitation
• Call Transfer
• Call Back
• Call Detail Record (CDR
• Call Status Display
• NTP
• IP Blacklist
• Network Attack Alert
• Packet Capture
• System Logs

Mobile Features:

• GSM Frequency: 850/900/1800/1900MHz
• WCDMA Frequency: 850/1900MHz, 850/2100MHz, 900/2100MHz
• 4G LTE Band: depends on the module type
• VoLTE if the Carrier Supports
• SMS Sending and Receiving
• Send Bulk SMS
• SMS Center
• Gain Adjustment
• USSD
• PIN Modify
• Carrier Selection: Auto/Manual
• Talk Time Alarm
• Caller ID/CLIR
• Open API for SMS and USSD

Network & Management:

• Network Protocol: FTP, TFTP, HTTP, SSH
• NAT Traversal: Static NAT, STUN
• Static Route
• OpenVPN
• Firewall
• VLAN
• QoS/ToS
• DDNS
• Configure Backup/Restore
• Firmware Upgrade by HTTP/TFTP
• Web based Configuration
