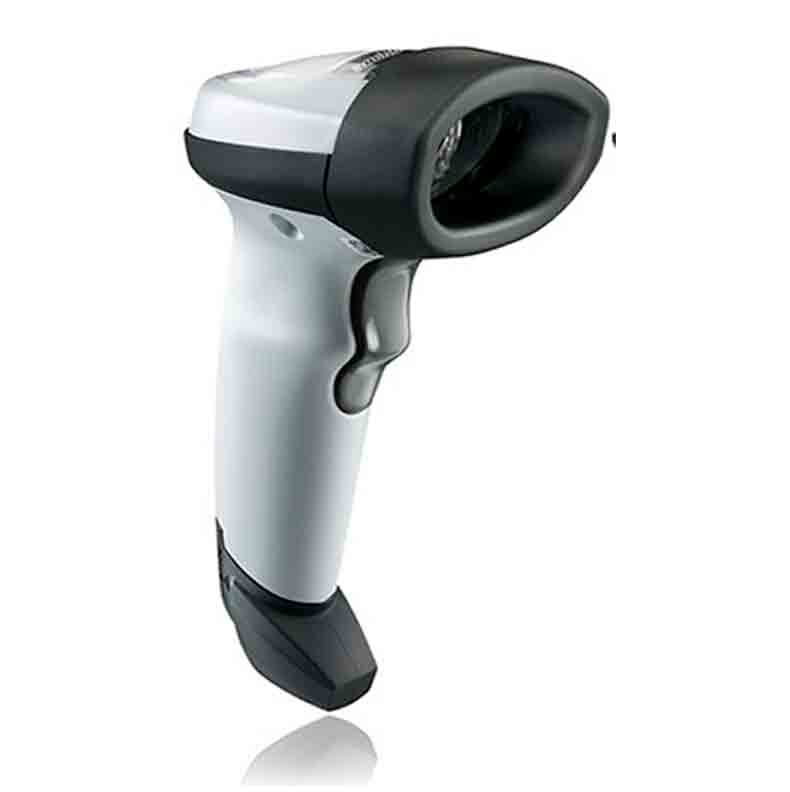

Zebra LI2208-SR7U2100SGW Imager 1D Barcode Scanner
Physical Characteristics
| Dimensions | 6.30 in. H x 2.64 in. W x 3.90 in. L 16 cm H x 6.7 cm W x 9.9 cm L |
| Weight | 4.95 oz./140 grams |
| Voltage and Current | 5VDC ± 10% <165 mA scanning <40 mA standby <2.5 mA USB suspend <4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only) |
| Power Source | Host power or external power supply |
| Color | Twilight Black; Nova White |
| Supported host interfaces | USB, RS232, Keyboard Wedge and IBM RS485 |
| Keyboard Support | Supports over 90 international keyboards |
Performance Characteristics
| Skew Tolerance | ±45° |
| Pitch Tolerance | ±45° |
| Roll Tolerance | ±45° |
| Scan Pattern | Single bright aiming line |
| Scan Angle | Horizontal 35° |
| Scan Speed | 547 scans per second |
| Motion Tolerance | 25 in./ 63.5 cm per second |
| Light Source | LED Class 1 device 617mm (amber) |
| Min. Print Contrast | 15% MRD |
User Environment
| Ambient Light Immunity | Max 108,000 lux |
| Operating Temp. | 32° F to 122° F/ 0° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specs | Over 100 drops at 5 ft./1.5 m at room temperature; survives 6 ft./1.8 m drops to concrete |
| Tumble Testing | 1,000 cycles (2000 drops) in 1/2 meter tumbler |
| Environmental Sealing | IP42 |
| Bar Code Symbologies | UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW – 7) MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded |
Decode Ranges (Typical Working Ranges*)
| 3 mil | Minimum resolution |
| 4 mil | 4-10 in./10.2-25.4 cm |
| 5 mil | 3-13 in./7.6-33 cm |
| 7.5 mil | 1.5-19 in./ 3.8-48.3 cm |
| 13 mil (100% UPC-A) | 1-31 in./2.5-78.7 cm |
| 20 mil | 1-42 in./2.5-106.7 cm |
| 26 mil (200% UPC-A) | 3-55 in./7.6-140 cm |
| 100 mil reflective |
>20 ft./6 m |
| * The working ranges were tested under 30 ft.-cd of ambient illumination; ranges are calculated on Code 39 unless otherwise noted |
Performance Characteristics
| Skew Tolerance | ±45° |
| Pitch Tolerance | ±45° |
| Roll Tolerance | ±45° |
| Scan Pattern | Single bright aiming line |
| Scan Angle | Horizontal 35° |
| Scan Speed | 547 scans per second |
| Motion Tolerance | 25 in./ 63.5 cm per second |
| Light Source | LED Class 1 device 617mm (amber) |
| Min. Print Contrast | 15% MRD |
Utilities and Management
| 123Scan(2) Scanner Management Services (SMS), Zebra Scanner SDK |
Accessories
| Hands-free (gooseneck) Intellistand; auto-host detect cables |
Regulatory
| Technical Requirements | EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1 |
| Environmental | RoHS Compliant |
