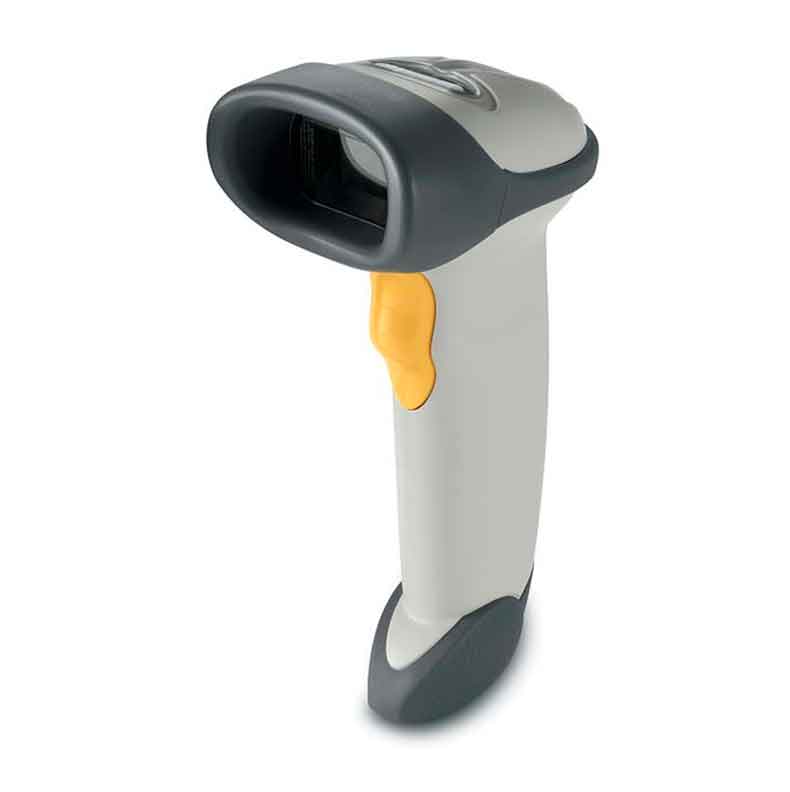

Zebra LS2208-SR20007R-UR 1D Barcode Scanner
Physical Characteristics
| Dimensions | 6.0 in. H x 2.5 in. W x 3.3 in. D 15.2 cm. H x 6.4 cm. W x 8.5 cm. D |
| Weight | 5.3 oz./150.0 g |
| Input Voltage Range | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Operating Current at Nominal Voltage (5.0V) | 175 mA (typical) |
| Standby Current (idle) at Nominal Voltage (5.0V) | 90 mA (typical) |
| Color | Cash Register White, Twilight Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| User Indicators | Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume) |
Performance Characteristics
| Light Source | 650 nm Laser Diode Class 2 |
| Scan Pattern | Single line |
| Scan Speed | 100 scans per second |
| Scan Angle | 35° |
| Minimum Print Contrast | 20% minimum reflective difference |
| Skew Tolerance | ± 10° |
| Pitch Tolerance | ± 65° |
| Roll Tolerance | ± 60° |
User Environment
| Operating Temperature | 32° to 122° F/0° to 50° C |
| Storage Temperature | -40° to 158° F/-40° to 70° C |
| Humidity | 5% – 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Tumble Specification | Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler |
| Environmental Sealing | IP30 |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 8,000 Foot Candles / 0 to 86,080 Lux; tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions; Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft. Candles (4,844 Lux) Sunlight: 8000 Ft. Candles (86,111 Lux) |
Symbol Decode Capability
| Scanning Technology | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies. |
| Minimum Element Resolution | Code 39: 3.0 mil |
Regulatory
| Electrical Safety | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07 |
| EMI/RFI | FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC |
| Laser Safety | CDRH Class II; IEC Class 2 |
| Environmental | Compliant with RoHS Directive 2011/65/EU; EN 50581: 2012 |
| Visit www.zebra.com/ls2208 for complete regulatory information. |
Accessories
| Gooseneck Intellistand |
