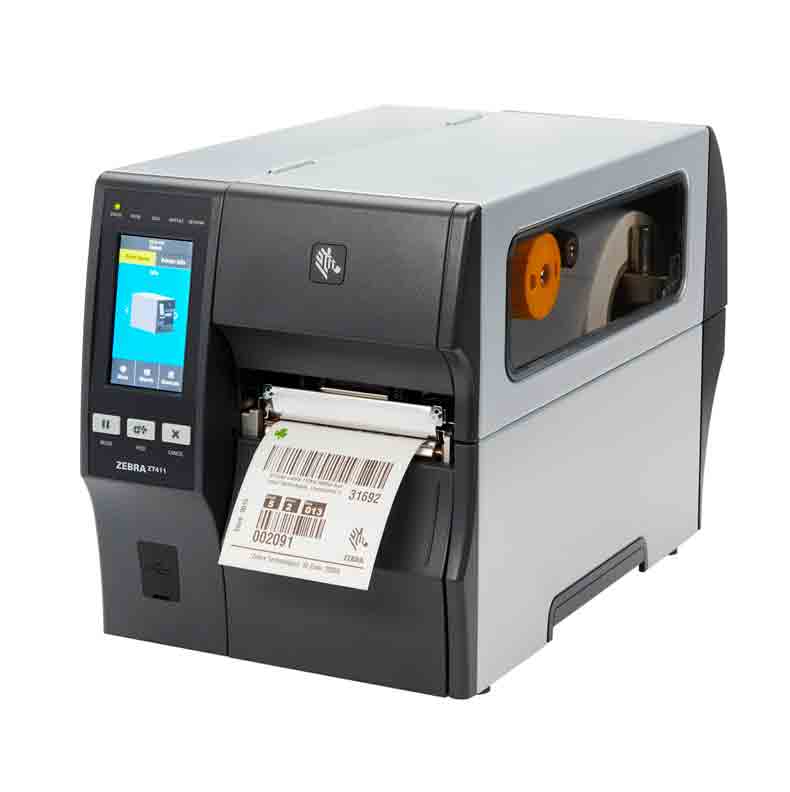

Zebra ZT411 TT 300dpi Ethernet Printer (ZT41143-T0E0000Z)
Standard Features:
• Print Methods: Thermal transfer and direct thermal printing
• Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet,
• Bluetooth 4.1, Dual USB Host
• 4.3-inch color touch display with an intuitive menu for quick operation and settings management
• Bi-colored status LEDs for quick printer status
• ENERGY STAR qualified
Physical Characteristics:
• Dimensions (closed):
ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H / 495 mm L x 269 mm W x 324 mm H
ZT421: 19.5 in. L x 13.25 in. W x 12.75 H / 495 mm L x 336 mm W x 324 mm H
• Weight
ZT411: 36 lbs./16.33 kg
ZT421: 40 lbs./18.14 kg
Zebra ZT411 TT 300dpi Ethernet Printer (ZT41143-T0E0000Z) Specifications:
• Resolution: 203 dpi/8 dots per mm / 300 dpi/12 dots per mm (optional)
• Memory: 256 MB SDRAM memory / 512 MB on-board linear Flash memory
• Maximum Print Width:
ZT411: 4.09 in./104 mm
ZT421: 6.6 in./168 mm
• Maximum Print Speed
ZT411: 14 ips/356 mm per second
ZT421: 12 ips/305 mm per second
• Media Sensors: Adjustable dual media sensors: transmissive and reflective
• Print Length:
ZT411
203 dpi: 157 in./3988 mm
300 dpi: 73 in./1854 mm
600 dpi: 39 in./991 mm
ZT421
203 dpi: 102 in./2591 mm
300 dpi: 45 in./1143 mm
Media Characteristics:
• Maximum Media Width:
ZT411
1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter
1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind
ZT421
2.00 in./51 mm to 7.0 in./178 mm tear/cutter
2.00 in./51 mm to 6.75 in./171 mm peel/rewind
• Maximum Media Roll Size: 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
• Thickness: 0.0023 in./0.058 mm to 0.010 in./0.25 mm
• Media Types: Continuous, die-cut, notch, black-mark
Ribbon Characteristics:
• Standard Length: 1476 ft./450 M
• Width:
ZT411: 2.00 in./51 mm to 4.33 in./110 mm
ZT421: 2.00 in./51 mm to 6.85 in./174 mm
• Core: 1.0 in./25 mm I.D.
Environmental:
• Operating Temperature:
Thermal transfer: 40º F to 104º F/5º C to 40º C
Direct thermal: 32º F to 104º F/0º C to 40º C
• Storage/Transportation Temperature: -40º F to 140º F/-40º C to 60º C
• Operating Humidity: 20% to 85% non-condensing
• Storage Humidity: 5% to 85% non-condensing
Firmware:
• ZBI 2.0™ — Optional powerful programming language that lets printers run standalone applications, connect to peripherals, and much more.
• ZPL and ZPL II® — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
• EPL and EPL2™— Eltron® Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)
Electrical:
• Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified
Options and Accessories:
• Communication Two open communication slots to add internal cards for:
– Dual band 802.11ac Wi-Fi and Bluetooth
– Parallel (bi-directional interface)
– 10/100 Ethernet
– Applicator interface
• Media Handling:
– Rewind: Internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (factory installed only)
– Peel: Front-mount, passive peel option
– Peel: Liner take-up — additional full-roll liner takeup spindle accommodates standard printer base
– Cutter: Front-mount guillotine cutter and catch tray
– 1 in. I.D. Core media supply hanger (ZT411 only)
– Ink-side in ribbon supply (ZT411 only)
• RFID:
– Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
– Integrated RFID system is user-upgradable in the field and available on both 4 in. and 6 in. models
– Adaptive Encoding Technology automatically selects optimum encode settings
– Field installable on-metal RFID kit available*
• Keyboard Display Unit: ZKDU™ keyboard display units for stand-alone printing applications
Fonts and Graphics:
• 16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts
Asian and other international scalable and smooth bitmapped fonts
Unicode™: For multi-language printing
Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
64 MB user-available non-volatile memory storage for downloadable objects
8 MB user-available SDRAM
Barcode Symbologies:
• Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
• Two Dimensional Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
Agency Approvals:
• Safety: IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
• Emissions: cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro
