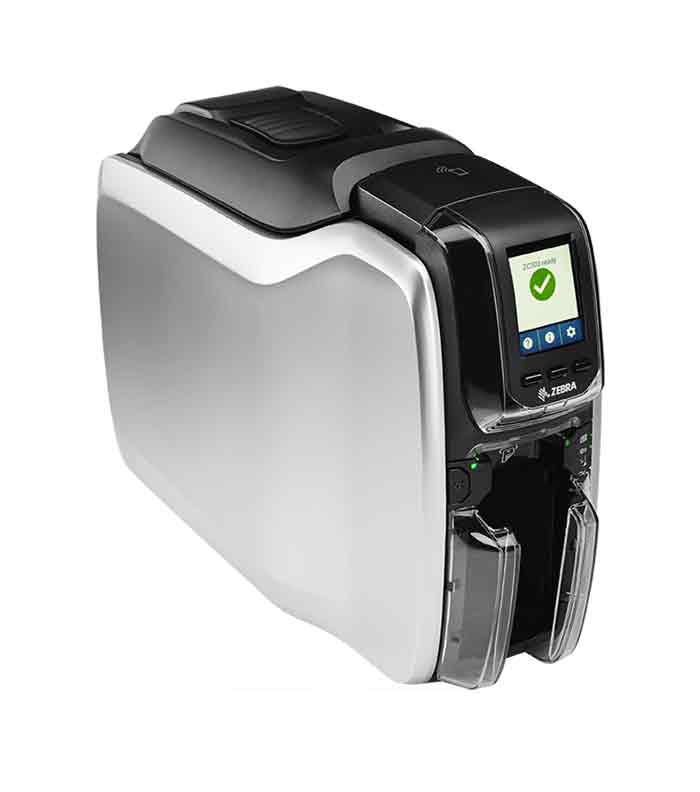

The Zebra Printer ZC300 Single Sided

Media Specifications of the Zebra Printer ZC300 Single Sided

The Zebra Printer ZC300 Single Sided is a simple-to-load recyclable cartridge that comes with ribbons.

Description of the Ribbon

Cartridge Count of Images

YMCKO* 200 YMCKO* 300 YMCKOK* 200 12 YMCKO* 400 12 YMCKOKO* 250 KrO* 700 KdO* YMCKOKO* 250 KrO* 700 KdO*

2000 Black Monochrome* 700 Black Monochrome Monochrome* 1500 Red Monochrome* 1500 White Monochrome 1500sBlue Monochrome 1500sGold Monochrome 1500sSilver Monochrome 1500

*Zebra clever technology recognizes and authenticates ribbons automatically.

Each ribbon comes with a cleaning roller.

Two cleaning kits are available: two (2) or five (5) isopropyl alcohol cleaning cards (1,000 pictures per card).

Operating Characteristics of the  Zebra Printer ZC300 Single Sided

Operating temperature: 59°F to 95°F/15°C to 35°C Storage temperature: 59°F to 95°F/15°C to 35°C Temperatures range from 23°F to 158°F/-5°C to 70°C.

Non-condensing operating humidity ranges from 20% to 80%.

Storage of media

— Humidity: 35 percent to 65 percent non-condensing — Temperature: 41o F to 77o F/5o C to 25o C

Single-phase AC power with auto-switching

90-132VAC and 190-264VAC RMS are the operating ranges.

FCC Class A frequency range: 47-63 Hz

 Physical Characteristics of the  Zebra Printer ZC300 Single Sided

Dimensions 10.2 inches single-sided 6.2 inches in height 15.1 in. width 258 mm in length 157 millimeters in height 383 x W millimeters Dimensions

10.2 inches on all sides. 6.2 inches in height 18.4 inches in width 258 millimeters in length 157 millimeters in height 468 millimeters in width Dimension

Weight 8.8 lbs. single-sided (4.0kg)

9.7 pounds Dual Sided (4.4 kg)

• NOTE: It is suggested that you use Genuine Zebra supplies for the best print quality and printer performance.

• The thickness of card: 10-40 mil*

• Card Format: CR80 ISO 7810 ID-1, CR79*

• PVC and PVC composites are used to make the cards.

• Cards with a sticky back and a written back

• Cards that are transparent*

• *Note: Spot color or monochrome printing is only advised for cards that are >20 mils thick, CR79 cards, or transparent cards.

Communications and Interface Capabilities

• Built-in 10/100 Ethernet is optional.

• USB 2.0 is standard.

• 802.11ac is an optional feature.

Encoding Options and Specifications

• ISO 7811 magnetic stripe encoder (new and pre-encoded; tracks 1, 2, and 3; high and low connectivity; stripe down and up with dual-sided printers)

• Integration kit for third-party contactless encoders (ZIP Pocket)*

• Options that can be upgraded in the field

Print DNA

The Zebra Printer ZC300 Single Sided Kit for developing cross-platform software (SDK)

Printer Software Development Kit for Windows, C#/.Net, and Java (SDK)

Android, Java, and Windows are all supported by a single SDK.

Create card-printing programs quickly and easily in Windows, Linux, Mac OS, and Android environments, with total control over print functions.

Android mobile devices may now print cards.

Encryption and host authentication should be included in the design (Windows only)

Examples of source code and documentation are included in the  Zebra Printer ZC300 Single Sided.

CardStudio is a feature-rich and easy-to-use card design program that makes it simple to create loyalty cards, gift cards, and ID cards.

The best solution for your business

Zebra Printer ZC300 Single Sided gives you the optionality of providing simple but effective centralized management and control for the Web interface. With only a few ‘clicks,’ you can easily go through all of the Card Printer options and rapidly establish your printer configurations. To secure sensitive data, update and control networked Enterprise Zebra Link-OS printers from a single console via a direct encrypted connection.

IRIX offer all kinds of pos systems for your business solutions.

About Print DNA

Print DNA elevates your Zebra Link-OS for Zebra Printer ZC300 Single Sided Card printers to a new level by giving simple but effective interacts with them, from printing to printer administration and application development.
