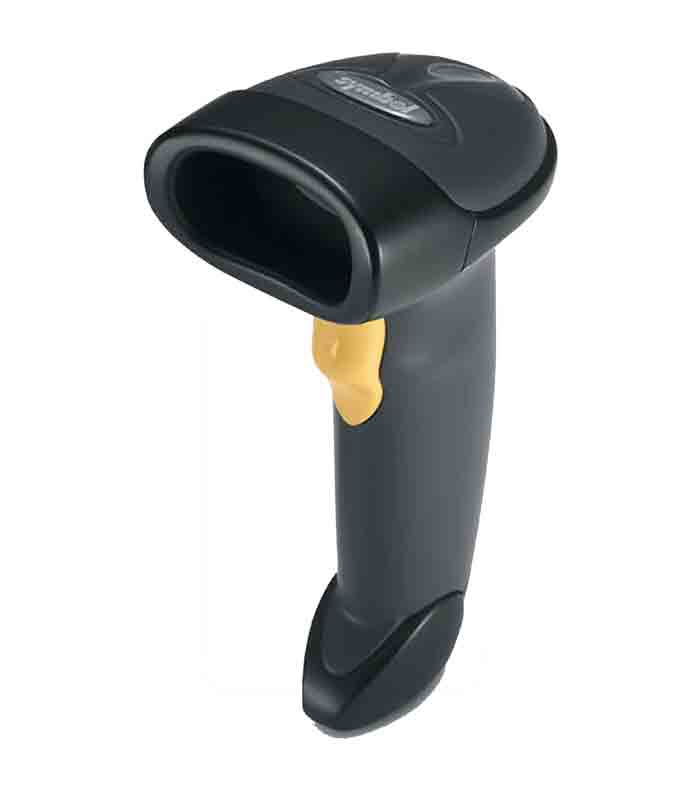

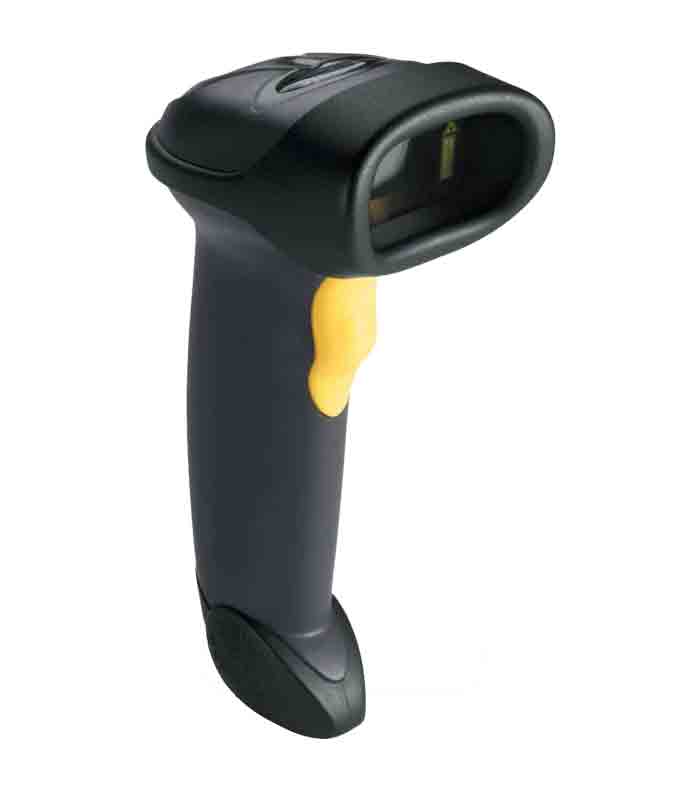

Zebra LS2278 -SR7U2100PRW
Through Zebra LS2278 for additional application flexibility, capture high-density bar codes.
You can capture the high-density barcodes seen on tiny goods with one scanner.
Distribute to every part of the globe.
The LS2208 is ready to use in your country straight out of the box, thanks to compatibility for 97 foreign keyboards.
A working range that is at the top of its class
Every day, workers may collect 13 mils UPC bar codes on more than 25 in/63.5 cm away, increasing productivity and enhancing the consumer checkout experience.
More choices for decoding feedback
To signal that a bar code has been successfully captured, choose between the Direct Decode Indication (a blinking laser line), a beep tone, or a red/green LED indicator. Your employees will be satisfied. Even in the most scan-intensive conditions, the practicality and lightweight, the calibrated design delivers superior comfort.
Why your employees will enjoy Zebra LS2278
What’s the end result?
User weariness is reduced, and worker productivity is significantly raised.
Constructed to last
The LS2278 provides consistent all-day, every-day operation because of its revolutionary single board structure, proprietary frictionless liquid polymer scan element, scratch-resistant tempered glass exit window, and strict drop and tumble specification.
Handheld or hands-free operating are also options.
In the time it takes to slip the LS2278 onto the stand, the optional Intellistand enables presentation scanning and allows employees to instantly transition between hands-free and handheld modes.
Multiple user interfaces are available.
The future-proof LS2208 is ready to connect to any host you need now or tomorrow.
The system is truly plug-and-play.
The universal connector connects to any computing environment, reducing setup and training time to a bare minimum.
Data Formatting for Advanced Users (ADF)
Data is formatted correctly before being transferred to your host computer, avoiding the need for costly host software modifications.
| Physical Characteristics | |
| Height Width dimensions | 6.0 inches. Height x 2.5 inches. Width x 3.3 inches. Dimension 15.2 cm. Height x 6.4 cm. Width x 8.5 cm. Dimension |
| Mass | 5.3 ounces. or 150.0 grams |
| Input Voltage Radius | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Operating Under Current at Normal Voltages (5.0V) | 175 mA at normal use |
| Standby Vulgate (idle) at Normal Voltage (5.0V) | 90 mA at normal use |
| Color | The register itself White or Twilight Black |
| Optional Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard assistance | You can choose over 90 international keyboards |
| User Signs | Able to tweak the tone and volume additionally direct decode indicator, good decode LEDs, beeper |
|
User Setting
|
|
| Temperatures it is supported | 32° to 122° F/0° to 50° C |
| Temperatures it can be stored upon | -40° to 158° F/-40° to 70° C |
| Moister it is supported | 5% – 95% RH, non-abridge |
| Under pressure specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Drop specifications | Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler |
| IP rating | IP30 |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Atmosphere Light Privilege | 0 to 8,000 Foot Candles / 0 to 86,080 Lux; able to work under typical indoor and outdoor light. Additionally, it is able to work under; Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft lighting conditions Candles (4,844 Lux) Sunlight: 8000 Ft. Candles (86,111 Lux) |
| Performance Characteristics | |
| Light Authority | 650 nanometer Laser Diode Class 2 |
| Scan standard | Single line |
| Scan Speed | 100 scans p/s |
| Scan Edge | 35 degree |
| Minimum Print Difference | 20 percent minimum cogitative difference |
| Distortion Tolerance | positive and negative 10 degree |
| Angle Tolerance | positive and negative 65 degree |
