Unique Feature
|
ASRock USB 3.2 Gen2 |
– ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) | |
ASRock Super Alloy | |
– XXL Aluminum Alloy Heatsink | |
– Premium Power Choke | |
– 50A Dr.MOS | |
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) | |
– I/O Armor | |
– Matte Black PCB | |
– High Density Glass Fabric PCB | |
– 2oz Copper PCB | |
2.5G LAN 802.11ax Wi-Fi 6E | |
ASRock Auto Driver Installer | |
ASRock Steel Slot | |
ASRock Full Coverage M.2 Heatsink | |
ASRock Hyper M.2 (PCIe Gen4x4) | |
ASRock Ultra USB Power | |
ASRock POST Status Checker (PSC) | |
ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
ASRock Live Update & APP Shop | |
CPU
|
– Supports 12th Gen Intel® Core™ Processors (LGA1700) |
– Digi Power design | |
– 13 Power Phase design | |
– Supports Intel® Hybrid Technology | |
– Supports Intel® Turbo Boost Max 3.0 Technology | |
Chipset | – Intel® Z690 |
Memory
|
– Dual Channel DDR4 Memory Technology |
– 4 x DDR4 DIMM Slots | |
– Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* | |
– Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
– Max. capacity of system memory: 128GB | |
– Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
– 15μ Gold Contact in DIMM Slots | |
*Supports DDR4 3200 natively. | |
BIOS
|
– 256Mb AMI UEFI Legal BIOS with multilingual GUI support |
– ACPI 6.0 Compliant wake up events | |
– SMBIOS 2.7 Support | |
– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment | |
Graphics
|
– Intel® Xe Graphics Architecture (Gen 12) |
– Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers | |
– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz | |
– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz | |
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports | |
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. | |
Audio
|
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
– Supports Surge Protection | |
– Gold Audio Jacks | |
– 15μ Gold Audio Connector | |
– Nahimic Audio | |
LAN
|
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
– Dragon RTL8125BG | |
– Supports Dragon 2.5G LAN Software | |
– Smart Auto Adjust Bandwidth Control | |
– Visual User Friendly UI | |
– Visual Network Usage Statistics | |
– Optimized Default Setting for Game, Browser, and Streaming Modes | |
– User Customized Priority Control | |
– Supports Wake-On-LAN | |
– Supports Lightning/ESD Protection | |
– Supports Energy Efficient Ethernet 802.3az | |
– Supports PXE | |
Wireless LAN
|
– 802.11ax Wi-Fi 6E Module |
– Supports IEEE 802.11a/b/g/n/ax | |
– Supports Dual-Band 2×2 160MHz with extended 6GHz band support* | |
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
– Supports Bluetooth + High speed class II | |
– Supports MU-MIMO | |
*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. | |
A 6GHz compatible router is required for 6E functionality. | |
Slots
|
– 3 x PCIe x16 Slots (PCIE2/PCIE3/PCIE5: single at Gen5x16 (PCIE2); dual at Gen5x16 (PCIE2) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE2) / Gen4x4 (PCIE3) / Gen3x4 (PCIE5))* |
– 2 x PCIe Gen3x1 Slots | |
– Supports AMD CrossFire™ | |
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) | |
– 15μ Gold Contact in VGA PCIe Slot (PCIE2) | |
*Supports NVMe SSD as boot disks | |
Storage
|
– 8 x SATA3 6.0 Gb/s Connectors* |
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode** | |
– 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes** | |
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode** | |
*If M2_2 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled. | |
**Supports Intel® Optane™ Technology (M2_2 and M2_3 only) | |
Supports Intel® Volume Management Device (VMD) | |
Supports NVMe SSD as boot disks | |
Supports ASRock U.2 Kit | |
RAID
|
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
Connector
|
– 1 x SPI TPM Header |
– 1 x Power LED and Speaker Header | |
– 1 x RGB LED Header* | |
– 3 x Addressable LED Headers** | |
– 1 x CPU Fan Connector (4-pin)*** | |
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
– 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector) | |
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) | |
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) | |
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) | |
*Supports in total up to 12V/3A, 36W LED Strip | |
**Support in total up to 5V/3A, 15W LED Strip | |
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. | |
Rear Panel I/O
|
– 2 x Antenna Ports |
– 1 x PS/2 Mouse/Keyboard Port | |
– 1 x HDMI Port | |
– 1 x DisplayPort 1.4 | |
– 1 x Optical SPDIF Out Port | |
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) | |
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) | |
– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
– 1 x BIOS Flashback Button | |
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) | |
*Ultra USB Power is supported on USB3_1_2 ports. | |
ACPI wake-up function is not supported on USB3_1_2 ports. | |
Software and UEFI
|
Software |
– ASRock Motherboard Utility (A-Tuning) | |
– ASRock Dragon 2.5G LAN Software | |
– ASRock Polychrome SYNC* | |
UEFI | |
– ASRock EZ Mode | |
– ASRock Full HD UEFI | |
– ASRock My Favorites in UEFI | |
– ASRock Auto Driver Installer | |
– ASRock Instant Flash | |
– ASRock Internet Flash | |
– ASRock Easy RAID Installer | |
*These utilities can be downloaded from ASRock Live Update & APP Shop. | |
Support CD | – Drivers, Utilities, AntiVirus Software (Trial Version) |
Accessories
|
– Quick Installation Guide, Support CD |
– 2 x SATA Data Cables | |
– 1 x ASRock WiFi 2.4/5/6 GHz Antenna | |
– 3 x Screws for M.2 Sockets | |
– 2 x Standoffs for M.2 Sockets | |
– 1 x Graphics Card Holder | |
Hardware Monitor
|
– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
– Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, +1.05V PROC, VCCSA, +1.8V PROC, +0.82V PCH, +12V, +5V, +3.3V | |
Form Factor
|
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
– 2oz Copper PCB | |
OS | – Microsoft® Windows® 10 64-bit / 11 64-bit |
Certifications
|
– FCC, CE |
– ErP/EuP ready (ErP/EuP ready power supply is required) | |
– CEC Tier II ready |

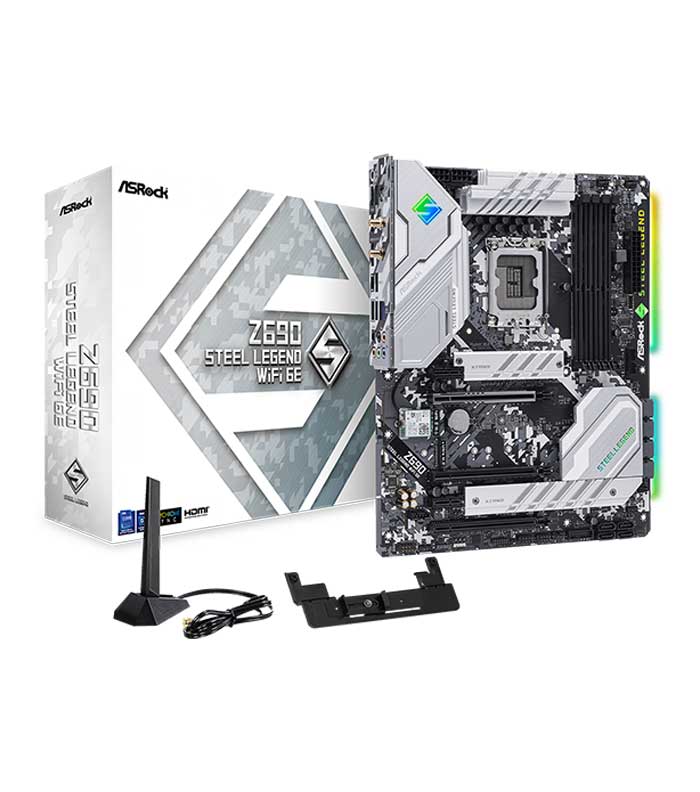

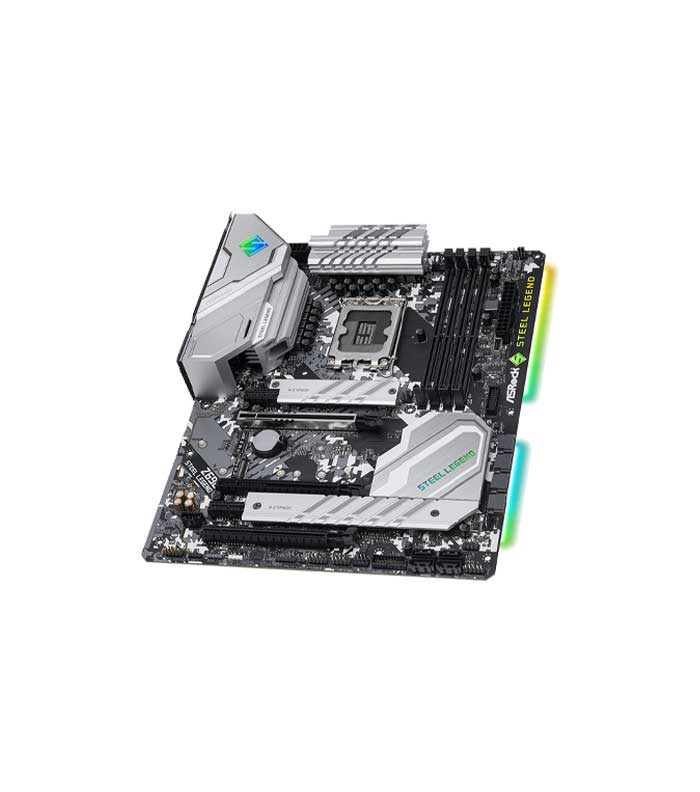

ASRock Z690 STEEL LEGEND WIFI 6E
