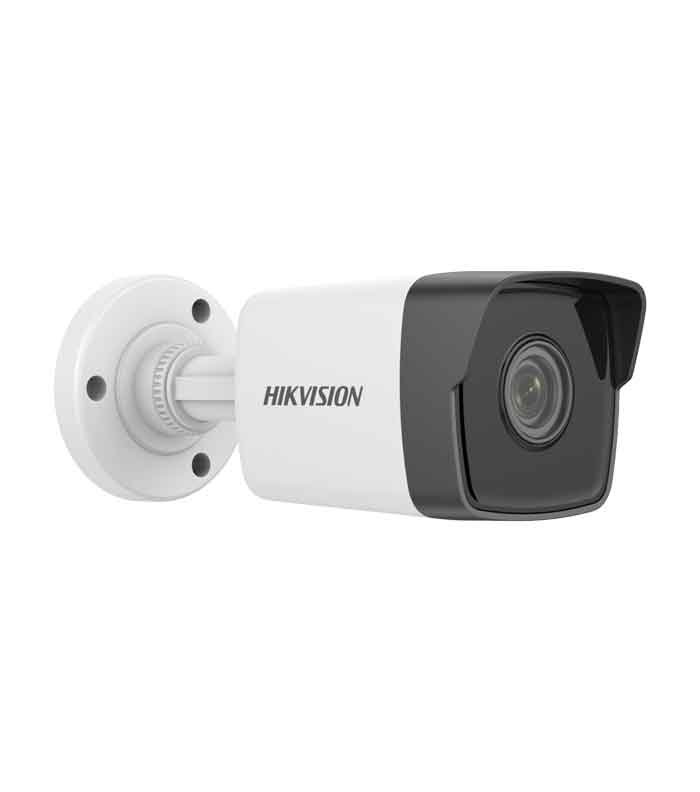

Hikvision Bullet Network Camera Specifications |
|
| Image Sensor 1/3″ progressive scan CMOS | |
| Max. Resolution 2560 × 1440 | |
| Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR | |
| Shutter Time1/3 s to 1/100,000 s | |
| Day & Night IR cut filter | |
| Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° | |
|
Lens
|
Lens Type Fixed focal length, 2.8 and 4 mm optional |
| Focal Length & FOV | |
| 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° | |
| 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° | |
| Lens Mount M12 | |
| Iris Type Fixed | |
| Aperture F2.0 | |
|
Illuminator
|
Supplement Light TypeIR |
| Supplement Light Range Up to 30 m | |
| Smart Supplement Light Yes | |
| IR Wavelength 850nm | |
|
Video
|
Mainstream |
| 50 Hz: 20 fps (2560 × 1440) | |
| 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) | |
| 60 Hz: 20 fps (2560 × 1440) | |
| 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) | |
| Sub-Stream | |
| 50 Hz: 25 fps (640 × 480, 640 × 360) | |
| 60 Hz: 30 fps (640 × 480, 640 × 360) | |
| Video Compression | |
| Mainstream: H.265/H.264/H.264+/H.265+ | |
| Sub-stream: H.265/H.264/MJPEG | |
| Video Bitrate 32 Kbps to 8 Mbps | |
| H.264 Type Baseline Profile/Main Profile/High Profile | |
| H.265 TypeMain Profile | |
| Region Of Interest (ROI)1 fixed region for main stream | |
|
Audio
|
Audio Compression-UF: G.711 ulaw/G.711 alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) | |
| Audio Sampling Rate-UF: 8 kHz/16 kHz | |
| Environment Noise Filtering-UF: Yes | |
|
Network
|
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View Up to 6 channels | |
| API Open Network Video Interface, ISAPI | |
| User/Host Up to 32 users. 3 levels: administrator, operator and user | |
| Client iVMS-4200, Hik-Connect | |
| Web Browser | |
| Plug-in required live view: IE 10+ | |
| Plug-in free live view: Chrome 57.0+, Firefox 52.0+ | |
| Local service: Chrome 57.0+, Firefox 52.0+ | |
|
|
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch Auto, Schedule, Day, Night | |
| Wide Dynamic Range (WDR)120 dB | |
| Image Enhancement LLC, 3D DNR | |
|
Interface
|
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB | |
| Built-In Microphone-UF: Yes | |
| Reset Key-UF: Yes | |
|
Event
|
|
| Basic Event Motion detection, video tampering, exception | |
| Linkage | |
| Upload to FTP, notify surveillance center, send email | |
| -UF also supports: upload to memory card, trigger recording, trigger capture | |
|
General
|
Power |
| 12V DC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug | |
| PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W | |
| Dimension 177.6 mm × 66.2 mm × 67.8 mm (7.0″ × 2.6″ × 2.7″) | |
| Package Dimensions 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″) | |
| Approx. 270 g (0.6 lb.) | |
| With Package Weight Approx. 490 g (1.1 lb.) | |
| Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
| Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
| General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter | |
|
Approval
|
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) approved for Hikvision Bullet Network Camera |
| Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) | |
| Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |
| Protection IP67 (IEC 60529-2013) approved for Hikvision Bullet Network Camera | |
The above specifications might not be 100% for the Hikvision Bullet Network Camera. Please contact us for wholesale prices and worldwide shipping details.
