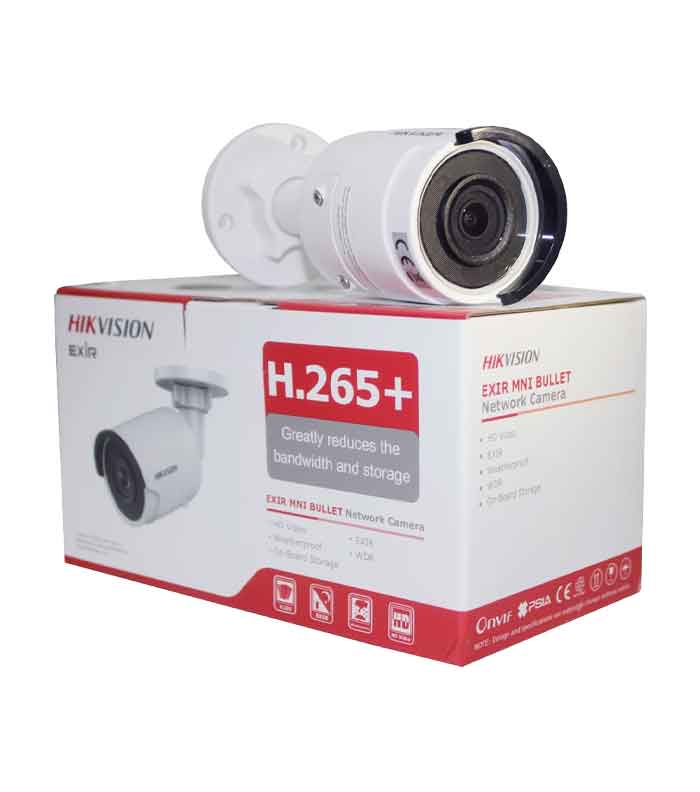

Hikvision 4K Outdoor WDR Fixed Bullet Network Camera |
|
|
Camera
|
Image Sensor 1/2.5″ Progressive Scan CMOS |
| Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR | |
| Shutter Speed 1/3 s to 1/100,000 s | |
| Slow Shutter Yes | |
| Wide Dynamic Range 120dB | |
| Day & Night IR Cut Filter | |
| Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
|
Lens
|
Focus Fixed |
| Lens Type 2.8/4/6/8 mm | |
| FOV 2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°,4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°,6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59°,8 mm, horizontal FOV: 40°, vertical FOV: 25°, diagonal FOV: 53° | |
| Aperture F2.0 | |
| Lens Mount M12 | |
| Aperture Type Fixed | |
|
Illuminator
|
IR Range Up to 30 m |
| Wavelength 850nm | |
|
Video
|
Max. Resolution 3840×2160 |
| MainStream 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) | |
| Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
| Video Compression Mainstream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 | |
| Video BitRate 32 Kbps to 16 Mbps | |
| H.264 Type Main Profile/High Profile | |
| H.265 Type Main Profile | |
| H.264+Main stream supports | |
| H.265+Main stream supports | |
| Scalable Video Coding (SVC)H.264 and H.265 encoding support | |
|
Network
|
Simultaneous Live View Up to 6 channels |
| API ONVIF (PROFILE S, PROFILE G), ISAPI | |
| Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS | |
| User/Host Up to 32 users,3 levels: Administrator, Operator and User | |
| Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 | |
| Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Clienti VMS-4200, Hik-Connect, Hik-Central | |
| Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ | |
| Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
|
|
Day/Night Switch Day/Night/Auto/Schedule |
| Target Cropping No | |
| DNR3D DNR | |
| Image Enhancement VLC/3D DNR/HLC | |
| Image Settings Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser | |
|
Interface
|
Video Output NO |
| On-Board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB | |
| Hardware Reset Yes | |
| Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port | |
|
Event
|
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart EventLine crossing detection, intrusion detection, face detection for the Hikvision 4K Outdoor WDR Fixed Bullet Network Camera | |
| Face Detection Yes | |
|
General
|
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email |
| Firmware Version 5.6.3 | |
| Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) | |
| General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter f0r the Hikvision 4K Outdoor WDR Fixed Bullet Network Camera | |
| Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) | |
| Power Supply 12 VDC ± 25%, Φ 5.5 mm ,PoE(802.3af, class 3) | |
| Power Consumption And Current 12V DC, 0.5 A, max. 6 W,PoE: (802.3af, 36V to 57 V), 0.2 A to 0.1 A, max. 7.5 W | |
| Camera Dimension Camera: Φ 70 mm × 155 mm (Φ 2.8″ × 6.1″),Package: 216 × 121 × 118 mm (8.5″ × 4.8″ × 4.7″) | |
| Camera Weight Camera: approx. 410 g (0.9 lb.) | |
| Approval | Protection IP67 for the Hikvision 4K Outdoor WDR Fixed Bullet Network Camera |
- The above specifications might not be 100% factual. Please contact us if you have any further questions or comments.
Buy the Hikvision 4K Outdoor WDR Fixed Bullet Network Camera from IRIX Computer Systems Trading LLC today. We offer fast shipping worldwide, wholesale prices, and customer satisfaction.
