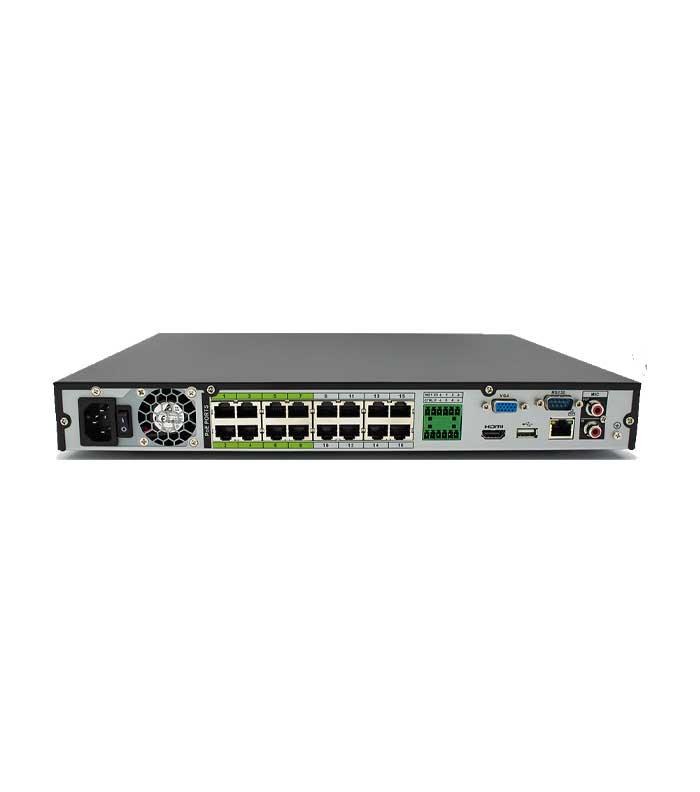

Specification of Hikvision DS-7616NI-K2 NVR 16-ch 1U |
|
|
Video And Audio
|
IP Video Input 16-ch |
| Incoming Bandwidth 160 Mbps | |
| HDMI Output 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920×1080/60Hz, 1600 × 1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024 × 768/60Hz | |
| Outgoing Bandwidth 160 Mbps | |
| VGA Output 1920 x × 1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024 × 768/60Hz | |
| Audio Output 1-ch, RCA (Linear, 1 KΩ) | |
| Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
|
Decoding
|
Decoding Format H.265/H.265+/H.264/H.264+/MPEG 4 |
| Decoding Capability 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps) | |
| Synchronous Playback 16-ch | |
| Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
|
Network
|
Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Network Protocol TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP,SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS | |
|
Auxiliary Interface
|
SATA2 SATA interfaces |
| Capacity Up to 6TB capacity for each HDD | |
| USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 | |
| Alarm In/Out 4/1 | |
|
General
|
Power Supply 12vdc |
| Consumption≤15 W | |
| Working Temperature-10 °C to 55 °C (14 °F to 131 °F) | |
| Working Humidity 10 to 90 % for the Hikvision DS-7616NI-K2 NVR 16-ch 1U | |
| Dimension (W × D × H)385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″) | |
| ≤ 1 kg (2.2 lb) | |
The above specifications for the Hikvision DS-7616NI-K2 NVR 16-ch 1U might vary from region to region. Please contact us to get exact details. We offer wholesale prices and worldwide shipping.
