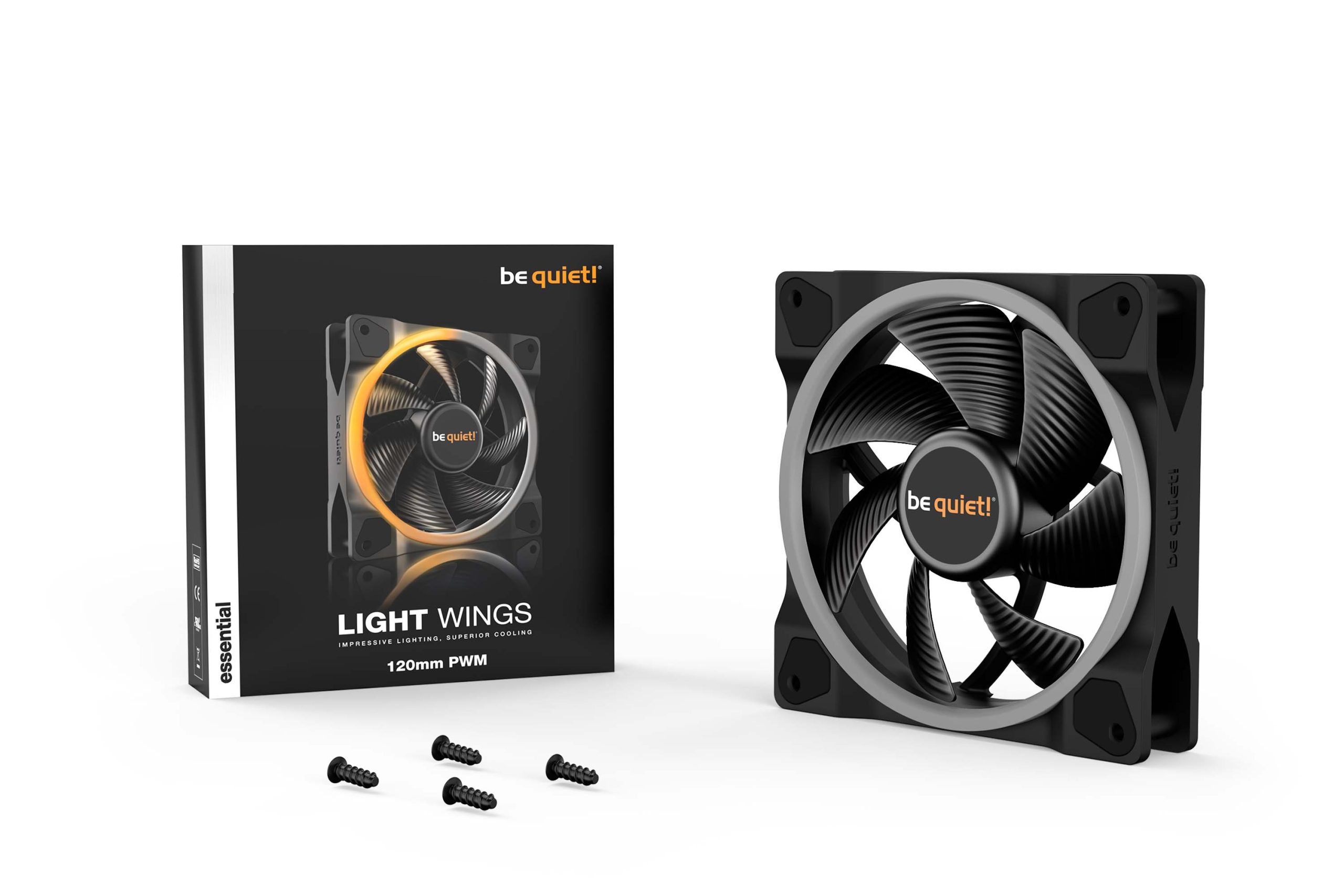

LIGHT WINGS
120mm PWM HS 3-Pack
Impressive lighting, superior cooling
3 Light Wings 120mm PWM high-speed offer impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
• 3 fans included
• ARGB lighting on front and rear
• Multiple colors and modes for an individual look thanks to 18 LEDs
• ARGB Hub allows synchronization of up to 6 ARGB components
• 9 silence optimized fan blades for high pressure reduce noise-generating turbulences
• Remarkable performance-to-noise ratio with 31dB(A) at 2,500rpm
If you are looking for quiet case fans with an impressive look from every angle, these three Light Wings 120mm PWM high-speed are your fans of choice.
General data
| Model | Light Wings 120mm PWM high-speed Triple Pack |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | ARGB LED |
| Fan speed at 100% PWM / 12V (rpm) | 2500 |
| Noise level at 100% PWM / 12V (dB(A)) | 31 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 52.3 / 88.86 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.6 |
Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Weight incl. fixed cables (g) | 210 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | – |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | ✓ |
| Lighting connector | 5V 3-pin ARGB |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | – |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 52.3 / 88.86 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.6 |
| Noise level at 100% PWM / 12V (dB(A)) | 31 |
| Lifespan (h / 25°C) | 60,000 |
| Zero RPM mode | – |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 – 13.2 |
| Current consumption (A) | 0.12 |
| Input current (A) | 0.12 |
| Safety current (A) | 0.45 |
| Input power (W) | 5.4 |
| Rated Current LED (A) | 0.6 |
Accessories
| 3-pin to 4-pin 12V-connector | – |
| 12V to 7V adapter | – |
| 12V to 5V adapter | – |
| Screws | 16 |
| Push pins | – |
| hard plastic washer | – |
| Others | ARGB Hub |
Safety certification
| Approvals | CE / UL |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Logistics data and RRP
| Article number | BL077 |
| EAN code | 4260052188811 |
| Dimensions, package (L x W x H), (mm) | 172 x 133 x 86.5 |
| Gross weight, package (kg) | 0.86 |
| Pieces per packaging unit | 10 |
| Dimensions, shipping box (L x W x H), (mm) | 454 x 283 x 200 |
| Gross weight, shipping box (kg) | 9.26 |
