LIGHT WINGS

140mm PWM HS 3-Pack

246,00 $

Guaranteed Safe Checkout

Features & Compatibility

LIGHT WINGS

140mm PWM HS 3-Pack

Impressive lighting, superior cooling

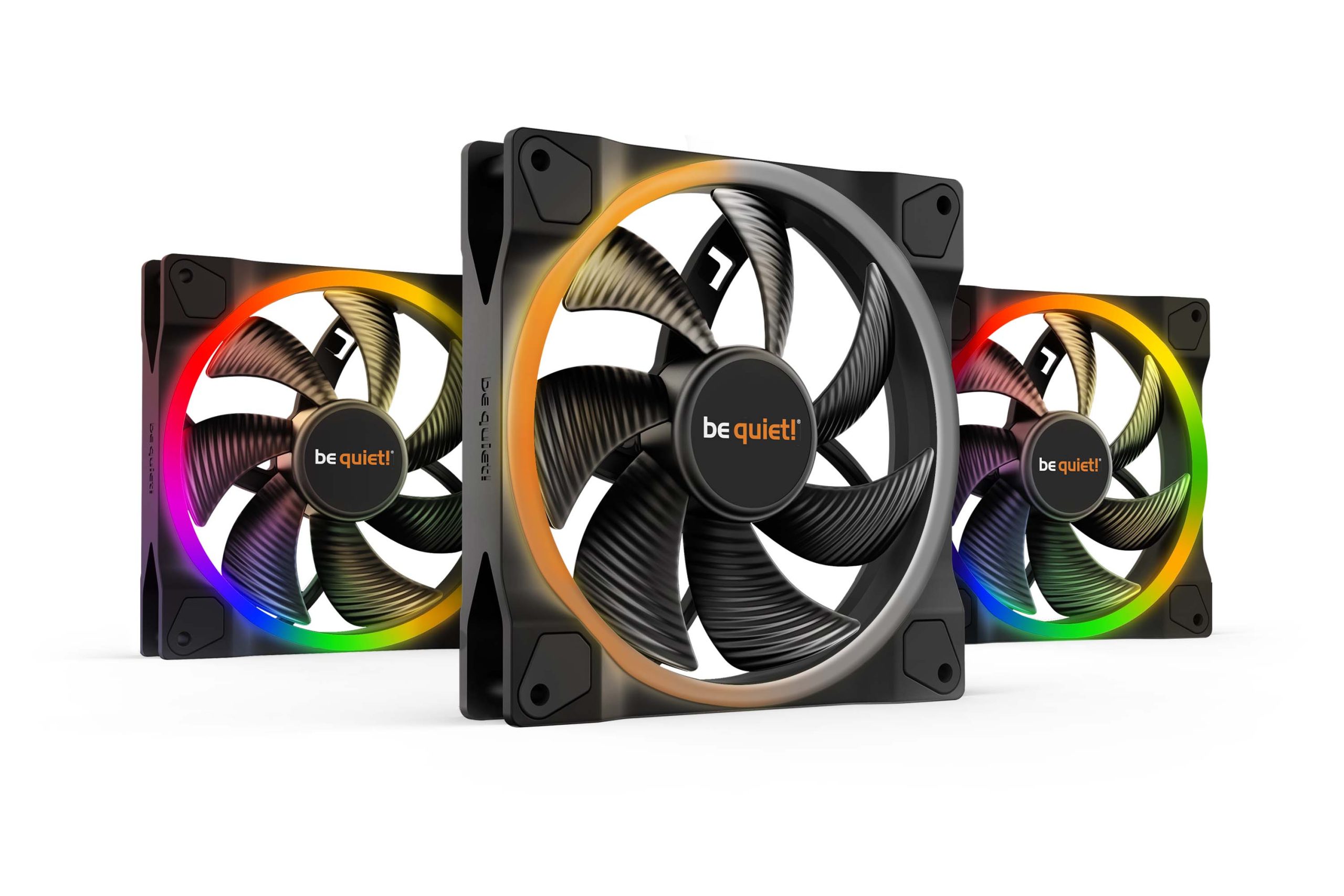

3 Light Wings 140mm PWM high-speed offer impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.

•    3 fans included
•    ARGB lighting on front and rear
•    Multiple colors and modes for an individual look thanks to 20 LEDs
•    ARGB Hub allows synchronization of up to 6 ARGB components
•    9 silence optimized fan blades for high pressure reduce noise-generating turbulences
•    Remarkable performance-to-noise ratio with 31dB(A) at 2,200rpm

If you are looking for high-performance fans with an impressive look from every angle, these 3 Light Wings 140mm PWM high-speed are your fans of choice.

IMPRESSIVE LIGHTING

Lots of illumination possibilities

Light Wings 140mm PWM high-speed offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 20 ARGB LEDs give you many opportunities to individualize your PC build.

THREE FANS, ONE HUB

Synchronize up to 6 Light Wings simultaneously

An ARGB Hub allows to use and synchronize up to 6 ARGB components at the same time. A user-friendly installation makes for an easy and convenient process, while the elegant all-black design of the ARGB Hub visually suits any PC case. It can be mounted like an SSD or anywhere else using the double-coated adhesive tape supplied.

FOR RADIATORS AND HEATSINKS

Fan blades optimized for high pressure

With a remarkably high air pressure of up to 2.3mm/H2O, Light Wings 140mm PWM high-speed is the best choice for water-cooled and air-cooled systems alike. The 9 airflow-optimized fan blades provide enough air pressure to make this fan perfect, even in demanding configurations.

QUIET OPERATION

Acclaimed be quiet! low noise level

A highly optimized fan frame and impeller achieve the silent operation be quiet! is famous for. With a noise level of just 31dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to silent and very powerful operation. All features combine to make Light Wings 140mm PWM high-speed the fan of choice for silent show cases and gaming systems alike.

VARIABLE FAN SPEED FUNCTION

Adjusts the fan speed and associated noise level

Pulse Width Modulation (PWM) allows compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not.



General data



Model Light Wings 140mm PWM high-speed Triple Pack
Dimensions (mm) 140
Color option Black
Lighting ARGB LED
Fan speed at 100% PWM / 12V (rpm) 2200
Noise level at 100% PWM / 12V (dB(A)) 31
Airflow at 100% PWM / 12V (CFM / m3/h) 71.7 / 121.82
Air Pressure at 100% PWM / 12V (mm H2O) 2.3



Infographics



Mechanical specifications



Dimensions (L x W x H), (mm) 140 x 140 x 25
Weight incl. fixed cables (g) 251
Bearing technology Rifle
Motor technology 4-pole fan motor
Push pin fixing
Screw fixing



Cables / Connectors



Daisy-chain compatible
Lighting connector 5V 3-pin ARGB
Connector 4-pin PWM
Cable length (mm) 500
Cable sleeve



Performance / Noise



Airflow at 100% PWM / 12V (CFM / m3/h) 71.7 / 121.86
Air Pressure at 100% PWM / 12V (mm H2O) 2.3
Noise level at 100% PWM / 12V (dB(A)) 31
Lifespan (h / 25°C) 60,000
Zero RPM mode



Electrical specifications



Rated Voltage DC (V) 12
Operating Voltage DC (V) 5 – 13.2
Current consumption (A) 0.16
Input current (A) 0.16
Safety current (A) 0.39
Input power (W) 4.68
Rated Current LED (A) 0.67



Accessories



3-pin to 4-pin 12V-connector
12V to 7V adapter
12V to 5V adapter
Screws 16
Push pins
hard plastic washer
Others ARGB Hub



Safety certification



Approvals CE / UL



Environmental directives



RoHS
WEEE
Triman



Logistics data and RRP



Article number BL079
EAN code 4260052188835
Dimensions, package (L x W x H), (mm) 192 x 133 x 86.5
Gross weight, package (kg) 1.03
Pieces per packaging unit 10
Dimensions, shipping box (L x W x H), (mm) 454 x 323 x 220
Gross weight, shipping box (kg) 10.92
