LIGHT WINGS WHITE
140mm PWM 3-Pack
Impressive lighting, superior cooling
The Light Wings White 140mm PWM Triple Pack offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling. If you are looking for quiet case fans with an impressive look from every angle, the Light Wings White 140mm PWM are your fans of choice.
- 3 fans included
- Amazing ARGB colors and effects for an individual look with 20 LEDs
- Additional illumination on the rear
- ARGB Hub allows synchronization of up to 6 ARGB components
- 7 silence-optimized fan blades for high airflow and reduced noise-generating turbulences
- Very quiet operation with max. 23.3dB(A)
TRULY COLORFUL
Time to let your system shine
Light Wings let systems shine bright and colorful ever since their launch. The strongly demanded white version now makes the popular fan series suitable for the taste of even more users. Light Wings White 140mm PWM comes with all parts in white, enabling all-white PC builds.
IMPRESSIVE LIGHTING
Lots of illumination possibilities
Light Wings White 140mm PWM offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 20 ARGB LEDs give you many opportunities to individualize your PC build.
THREE FANS, ONE HUB
Synchronize up to 6 Light Wings simultaneously

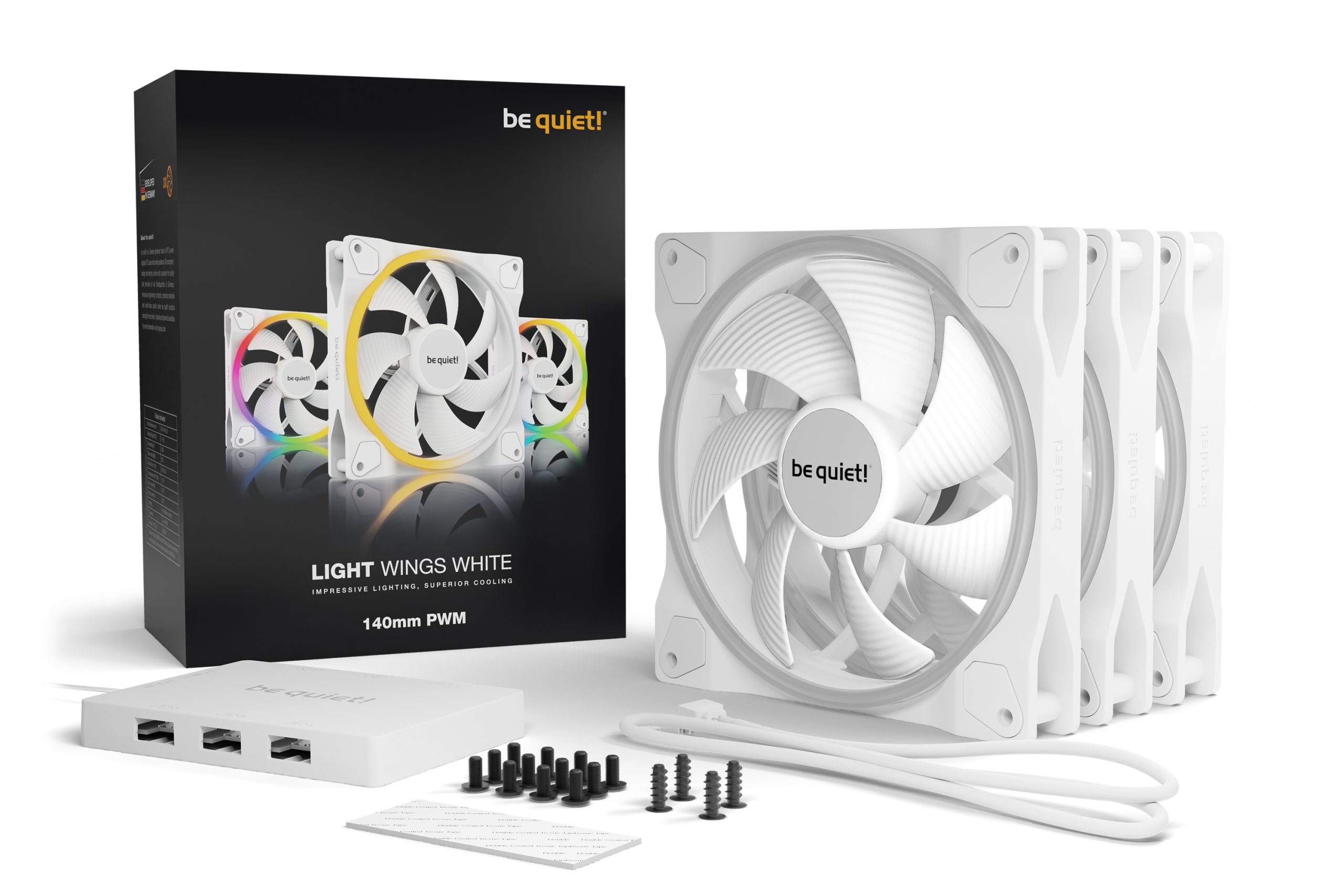

An ARGB Hub allows to synchronize up to 6 ARGB components. The installation is user-friendly, easy, and convenient, while the elegant all-white design of the ARGB Hub visually suits any PC case. It can be mounted like an SSD or anywhere else using the double-coated adhesive tape supplied. All Light Wings White come in triple packs and with the ARGB hub included, for your convenience.
PERFECT CASE FAN
Fan blades optimized for high airflow
With optimization for maximum airflow, Light Wings White 140mm PWM is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences, but also ensure the fan provides the performance that is needed, even in demanding configurations.
VERY QUIET OPERATION
Acclaimed be quiet! low noise level
A highly optimized fan frame and impeller achieve the silent operation be quiet! is famous for. With a noise level of just 23.3dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to very silent and powerful operation. All features combine to make Light Wings White 140mm PWM the fan of choice for silent show cases and gaming systems alike.
VARIABLE FAN SPEED FUNCTION
Adjusts the fan speed and associated noise level
Pulse Width Modulation (PWM) allows compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it’s needed or operate in maximum quiet mode when it’s not.
General data
Model | Light Wings White 140mm PWM |
Dimensions (mm) | 140 x 140 x 25 |
Color option | Black | White |
Lighting | ARGB LED |
Fan speed at 100% PWM / 12V (rpm) | 1500 |
Noise level at 100% PWM / 12V (dB(A)) | 23.3 |
Airflow at 100% PWM / 12V (CFM / m3/h) | 56 / 95.14 |
Air Pressure at 100% PWM / 12V (mm H2O) | 1.49 |
Infographics
Mechanical specifications
Dimensions (L x W x H), (mm) | 140 x 140 x 25 |
Weight incl. fixed cables (g) | 241 |
Bearing technology | Rifle |
Motor technology | 4-pole fan motor |
Push pin fixing | – |
Screw fixing | ✓ |
Cables / Connectors
Daisy-chain compatible | ✓ |
Lighting connector | 5V 3-pin ARGB |
Connector | 4-pin PWM |
Cable length (mm) | 500 |
Cable sleeve | – |
Performance / Noise
Airflow at 100% PWM / 12V (CFM / m3/h) | 56 / 95.14 |
Air Pressure at 100% PWM / 12V (mm H2O) | 1.49 |
Noise level at 100% PWM / 12V (dB(A)) | 23.3 |
Lifespan (h / 25°C) | 60.000 |
Zero RPM mode | – |
Electrical specifications
Rated Voltage DC (V) | 12 |
Operating Voltage DC (V) | 5 – 13.2 |
Current consumption (A) | 0.08 |
Input current (A) | 0.08 |
Safety current (A) | 0.32 |
Input power (W) | 3.84 |
Rated Current LED (A) | 0.67 |
Accessories
3-pin to 4-pin 12V-connector | – |
12V to 7V adapter | – |
12V to 5V adapter | – |
Screws | 16 |
Push pins | – |
hard plastic washer | – |
Others | ARGB Hub, ARGB Hub cable, double coated tissue tape, fastening screws for ARGB hub |
Safety certification
Approvals | CE / UL |
Environmental directives
RoHS | ✓ |
WEEE | ✓ |
Triman | ✓ |
Logistics data and RRP
Article number | BL102 |
EAN code | 4260052190258 |
Dimensions, package (L x W x H), (mm) | 192 x 133 x 86.5 |
Gross weight, package (kg) | 1.0 |
Pieces per packaging unit | 10 |
Dimensions, shipping box (L x W x H), (mm) | 454 x 323 x 220 |
Gross weight, shipping box (kg) | 10.75 |
