LIGHT WINGS

120mm PWM HS 3-Pack White

236,00 $

Guaranteed Safe Checkout

Features & Compatibility

LIGHT WINGS

120mm PWM HS 3-Pack White

Impressive lighting, superior cooling

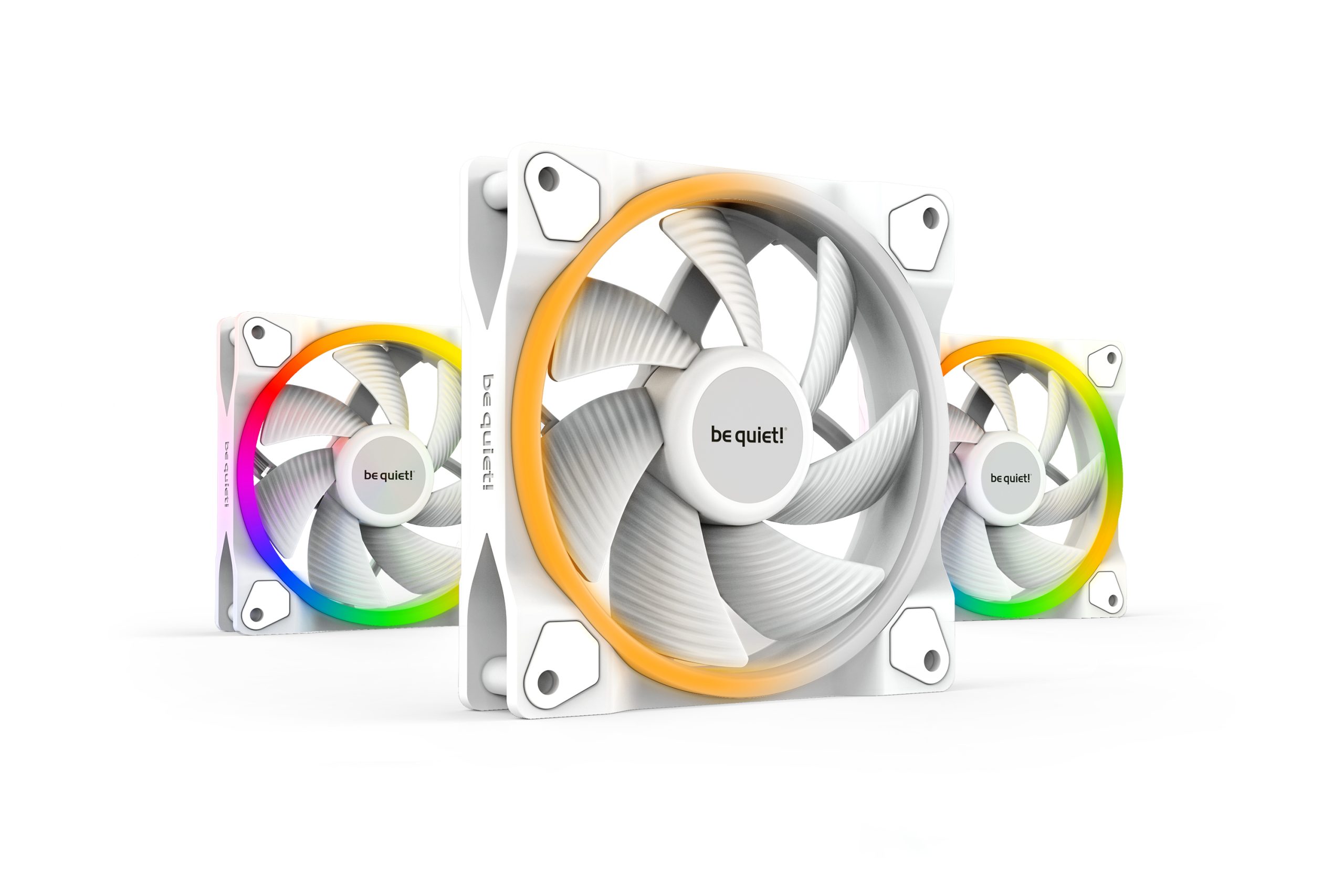

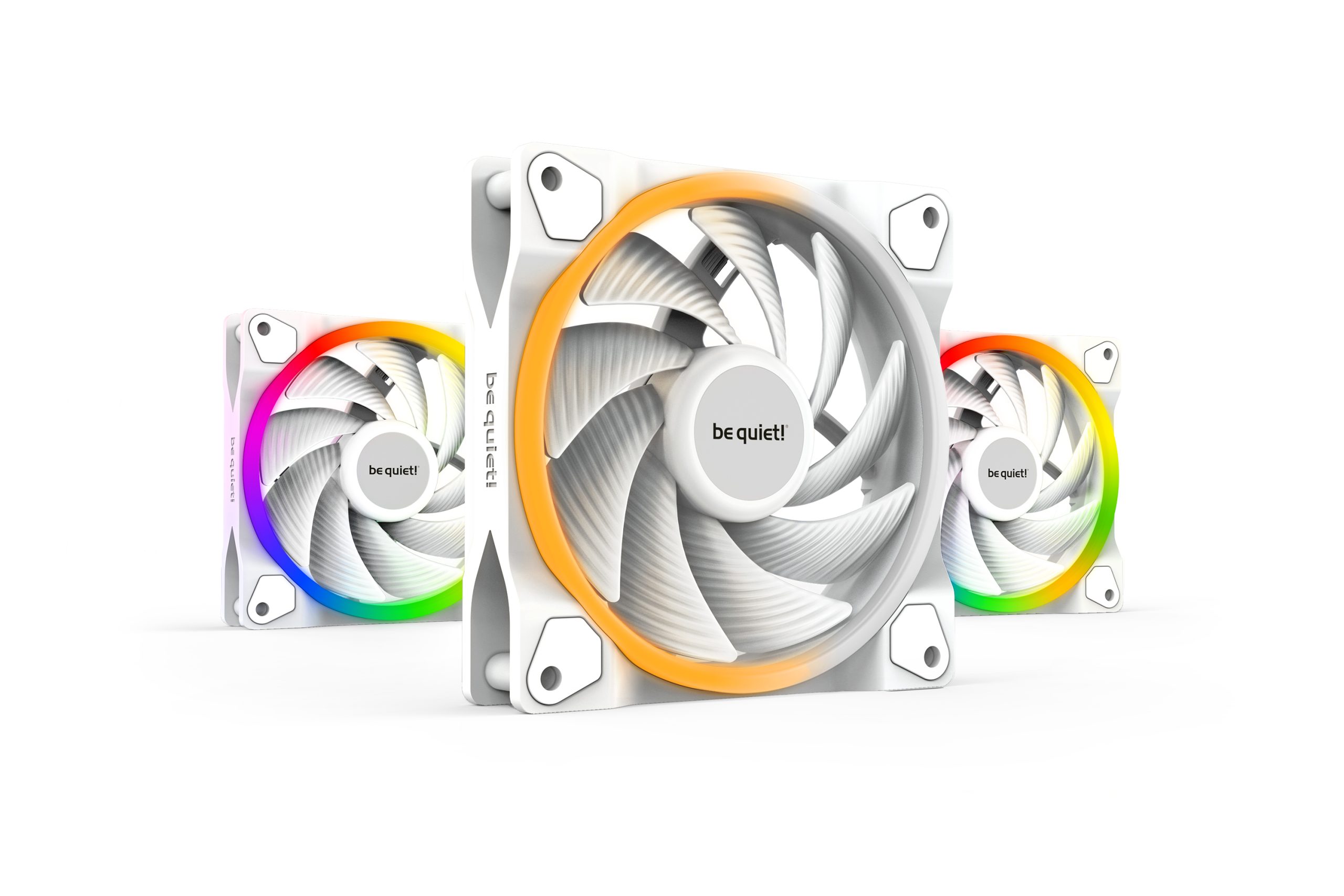

The Light Wings White 120mm PWM high-speed Triple Pack offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling. If you are looking for high performance fans with an impressive look from every angle, the Light Wings White 120mm PWM high-speed are your fans of choice.

  • 3 fans included
  • Amazing ARGB colors and effects for an individual look with 18 LEDs
  • Additional illumination on the rear
  • ARGB Hub allows synchronization of up to 6 ARGB components
  • 9 silence-optimized fan blades for high pressure and reduced noise-generating turbulences
  • Remarkable performance-to-noise ratio with 31dB(A) at 2,500rpm

TRULY COLORFUL

Time to let your system shine

Light Wings let systems shine bright and colorful ever since their launch. The strongly demanded white version now makes the popular fan series suitable for the taste of even more users. Light Wings White 120mm PWM high-speed comes with all parts in white, enabling all-white PC builds.

IMPRESSIVE LIGHTING

Lots of illumination possibilities

Light Wings White 120mm PWM high-speed offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 18 ARGB LEDs give you many opportunities to individualize your PC build.

THREE FANS, ONE HUB

Synchronize up to 6 Light Wings simultaneously

An ARGB Hub allows to synchronize up to 6 ARGB components. The installation is user-friendly, easy, and convenient, while the elegant all-white design of the ARGB Hub visually suits any PC case. It can be mounted like an SSD or anywhere else using the double-coated adhesive tape supplied. All Light Wings White come in triple packs and with the ARGB hub included, for your convenience.

FOR RADIATORS AND HEATSINKS

Fan blades optimized for high pressure

With a remarkably high air pressure of up to 2.6mm/H2O, Light Wings White 120mm PWM high-speed is the best choice for water- and air-cooled systems alike. The 9 airflow-optimized fan blades provide enough air pressure to make this fan perfect, even in demanding configurations.

QUIET OPERATION

Acclaimed be quiet! low noise level

A highly optimized fan frame and impeller achieve the silent operation be quiet! is famous for. With a noise level of just 31dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to silent and very powerful operation. All features combine to make Light Wings White 120mm PWM high-speed the fan of choice for silent show cases and gaming systems alike.

VARIABLE FAN SPEED FUNCTION

Adjusts the fan speed and associated noise level

Pulse Width Modulation (PWM) allows compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it’s needed or operate in maximum quiet mode when it’s not.



General data



Model Light Wings White 120mm PWM high-speed
Dimensions (mm) 120 x 120 x 25
Color option Black | White
Lighting ARGB LED
Fan speed at 100% PWM / 12V (rpm) 2500
Noise level at 100% PWM / 12V (dB(A)) 31
Airflow at 100% PWM / 12V (CFM / m3/h) 52.3 / 88.86
Air Pressure at 100% PWM / 12V (mm H2O) 2.6



Infographics



Mechanical specifications



Dimensions (L x W x H), (mm) 120 x 120 x 25
Weight incl. fixed cables (g) 210
Bearing technology Rifle
Motor technology 4-pole fan motor
Push pin fixing
Screw fixing



Cables / Connectors



Daisy-chain compatible
Lighting connector 5V 3-pin ARGB
Connector 4-pin PWM
Cable length (mm) 500
Cable sleeve



Performance / Noise



Airflow at 100% PWM / 12V (CFM / m3/h) 52.3 / 88.86
Air Pressure at 100% PWM / 12V (mm H2O) 2.6
Noise level at 100% PWM / 12V (dB(A)) 31
Lifespan (h / 25°C) 60.000
Zero RPM mode



Electrical specifications



Rated Voltage DC (V) 12
Operating Voltage DC (V) 5 – 13.2
Current consumption (A) 0.12
Input current (A) 0.12
Safety current (A) 0.45
Input power (W) 5.4
Rated Current LED (A) 0.60



Accessories



3-pin to 4-pin 12V-connector
12V to 7V adapter
12V to 5V adapter
Screws 16
Push pins
hard plastic washer
Others ARGB Hub, ARGB Hub cable, double coated tissue tape, fastening screws for ARGB hub



Safety certification



Approvals CE / UL



Environmental directives



RoHS
WEEE
Triman



Logistics data and RRP



Article number BL101
EAN code 4260052190234
Dimensions, package (L x W x H), (mm) 172 x 133 x 86.5
Gross weight, package (kg) 0.86
Pieces per packaging unit 10
Dimensions, shipping box (L x W x H), (mm) 454 x 283 x 200
Gross weight, shipping box (kg) 9.26
