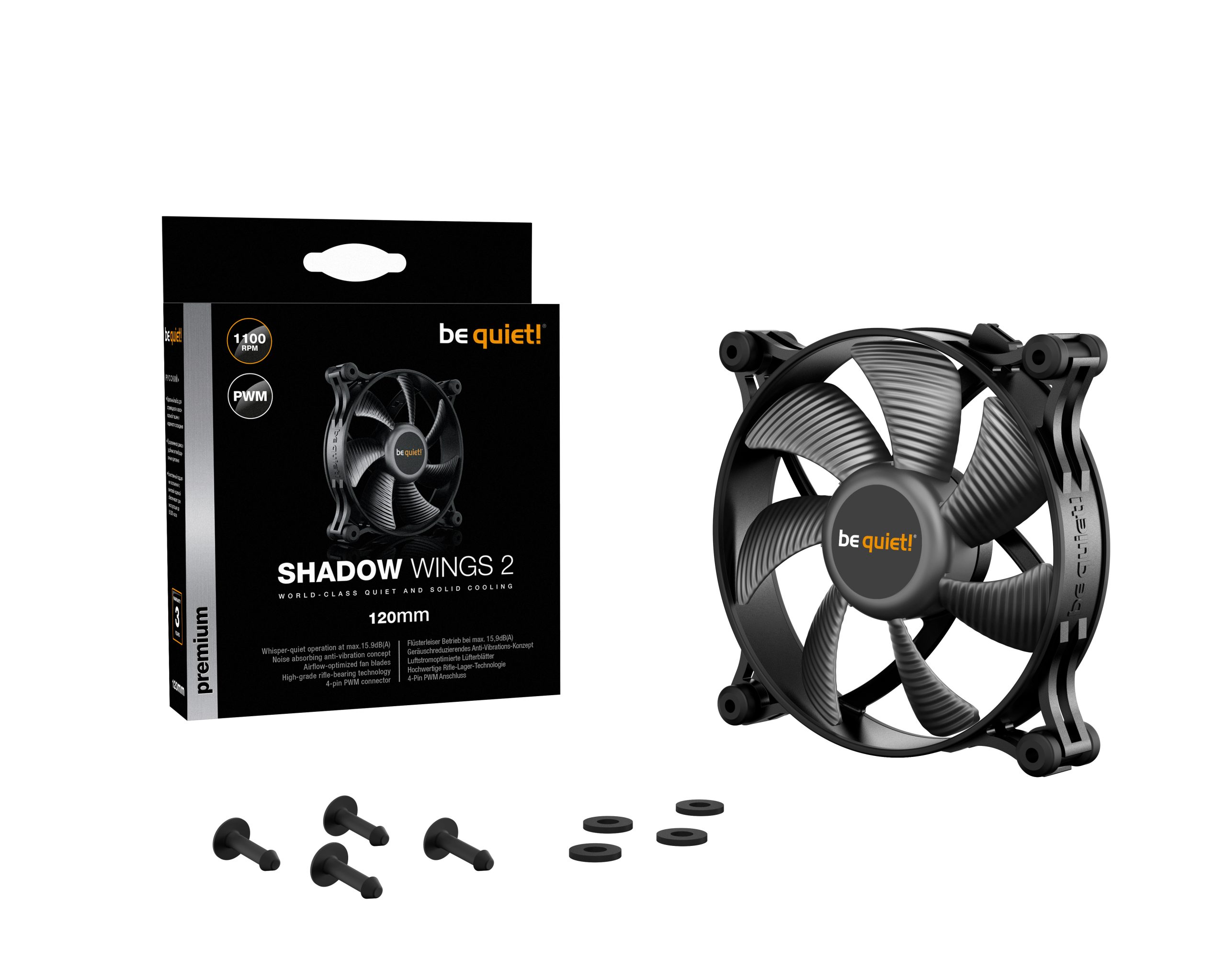

SHADOW WINGS 2
120mm PWM
World-class quiet and solid cooling
be quiet! Shadow Wings 2 120mm PWM offers whisper-quiet operation and reliable cooling at low revolutions per minute. Key features include:
- Low-noise operation of up to 15.9dB(A)
- Airflow-optimized fan blades
- Anti-vibration mounting system prevents transmission of vibrations
- Rubberized fan frame minimizes vibrations
- High-grade rifle-bearing technology
- Secure and easy installation with push-pins
- PWM controlled fan speed through the motherboard
- Product conception, design and quality control in Germany
- 3-year manufacturer’s warranty
Shadow Wings 2 fans are the perfect choice for all who appreciate maximum silence for their PC case.
WHISPER-QUIET OPERATION
Due to airflow-optimized fan blades
The Shadow Wings 2 120mm PWM fan blades have been optimized to ensure maximum airflow, resulting in a whisper-quiet operation yet solid cooling. They operate at only 15.9 dB(A) even at its maximum speed of 1,100 rpm. The perfect choice for all who appreciate maximum silence for their PC case.
ANTI-VIBRATION CONCEPT
Reducing vibrations to a minimum
Removable anti-vibration mountings on all four edges of the fan reduce vibrations transmitted to the PC case. In addition, the fan is equipped with a rubberized frame that reinforces the anti-vibration concept and ensures vibrations are reduced to an absolute minimum.
RIFLE BEARING TECHNOLOGY
Gives the fan a very long lifespan
The Shadow Wings 2 120mm PWM is the hallmark of outstanding reliability. This is achieved by its high-quality rifle bearing technology, which assures a very long lifespan of up to 80,000 hours.
PUSH-PIN MOUNTING
For user-friendly installation
With the Shadow Wings 2 anti-vibration mounting system the fan is simple to install. The push-pins ensure a very fast and secure installation without needing screws.
VARIABLE FAN SPEED FUNCTION
Varies the fan speed
Pulse Width Modulation (PWM) allows compatible 4-pin controllers to vary the speed intelligently and thus minimize the noise level of the fan. With PWM your system can ramp up the cooling when it’s needed, or operate at maximum quietness when it’s not.
General data
| Model | Shadow Wings 2 120mm PWM |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | – |
| Fan speed at 100% PWM / 12V (rpm) | 1100 |
| Noise level at 100% PWM / 12V (dB(A)) | 15.9 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 38.5 / 65 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 0.82 |
Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Weight incl. fixed cables (g) | 132 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | ✓ |
| Screw fixing | – |
Cables / Connectors
| Daisy-chain compatible | – |
| Lighting connector | – |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | – |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 38.5 / 65 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 0.82 |
| Noise level at 100% PWM / 12V (dB(A)) | 15.9 |
| Lifespan (h / 25°C) | 80,000 |
| Zero RPM mode | – |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 6 – 12 |
| Current consumption (A) | 0.12 |
| Input current (A) | 0.10 |
| Safety current (A) | 0.12 |
| Input power (W) | 1.44 |
| Rated Current LED (A) | – |
Accessories
| 3-pin to 4-pin 12V-connector | – |
| 12V to 7V adapter | – |
| 12V to 5V adapter | – |
| Screws | – |
| Push pins | 4 |
| hard plastic washer | 4 |
| Others | – |
Safety certification
| Approvals | CE / UL / TÜV |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Logistics data and RRP
| Article number | BL085 |
| EAN code | 4260052186879 |
| Dimensions, package (L x W x H), (mm) | 155 x 120 x 28 |
| Gross weight, package (kg) | 0.156 |
| Pieces per packaging unit | 60 |
| Dimensions, shipping box (L x W x H), (mm) | 410 x 320 x 290 |
| Gross weight, shipping box (kg) | 10.69 |
