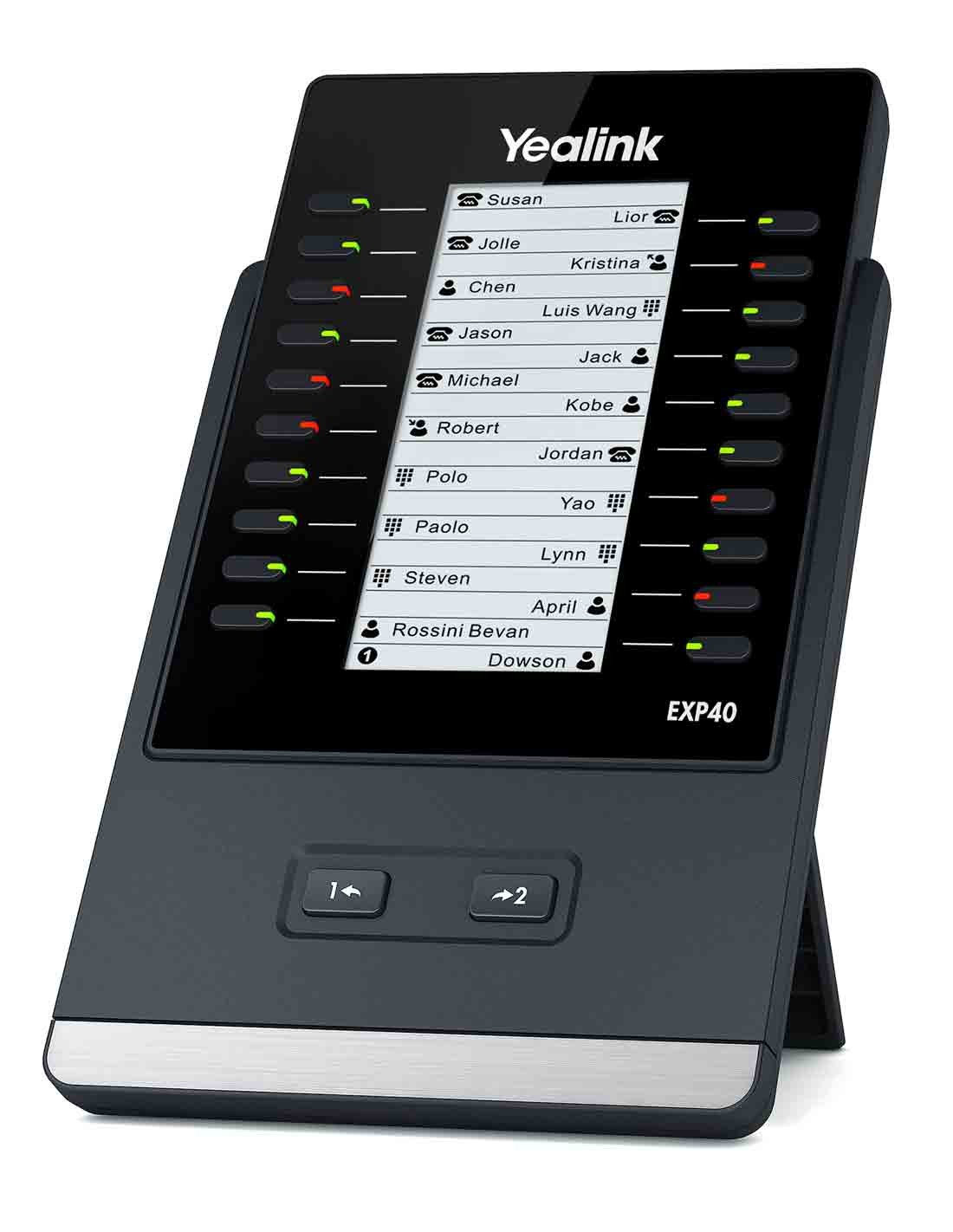

Yealink EXP40 LCD Expansion Module for T46/48GN

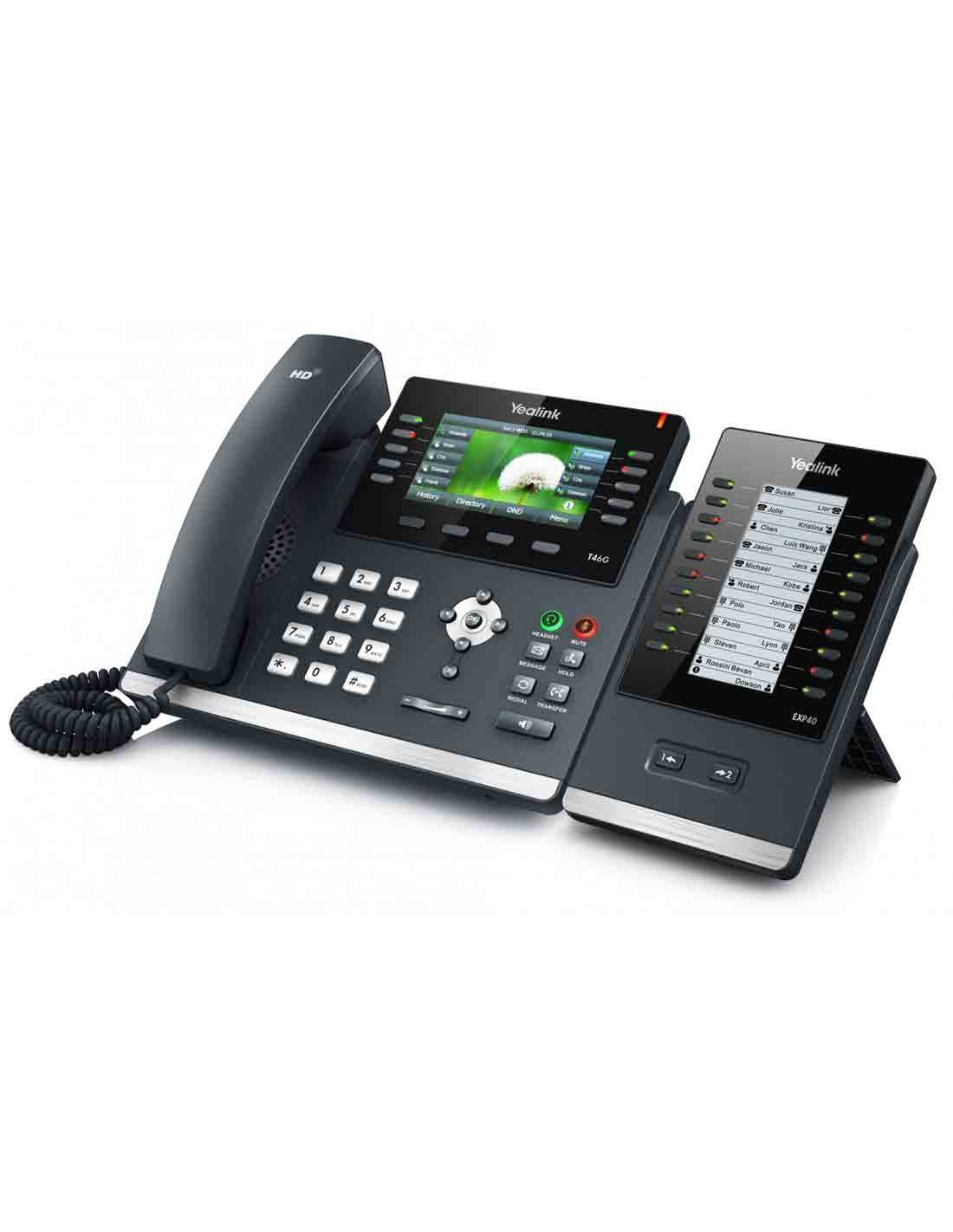

Yealink EXP40 expansion module is for T46G and T48G VoIP phones.

It has features like 160×320 graphic LCD, 20 physical keys each with a dual-color LED, 2 independent control keys are used for fast switch pages, stand with 2 adjustable angles, etc.

Most important, our online shop sells Yealink EXP40 with best deal options – affordable price, cheap international shipping, and free delivery in Dubai.

25,14 $

Guaranteed Safe Checkout

Features & Compatibility

LCD Expansion Module

The EXP40 Expansion Module for the SIP-T46S, SIP-T46G, SIP-T48S, and SIP-T48G, expanding the functional capability of your sip phone to a whole new level. It features a large graphic LCD. Two pages of 20 flexible buttons are shown on the display can be programmed up to 40 various features, the productivity-enhancing features include BLF/BLA, speed dialing, call forward, transfer, park, pickup, etc.

Features

– An exclusive collection which quality and detailed designs

– Rich visual experience with 160×320 graphic LCD

– 20 physical keys each with a dual-color LED

– 2 independent control keys are used for fast switch pages

– Stand with 2 adjustable angles

– Wall mountable

Specification



Display

– 160×320 graphic LCD with 16-level grayscales

– LCD Backlight

– Two page views are possible

– Different icons for each function shown on the LCD

Features Keys and Indicator

– 20 physical keys each with a dual-color LED

– 20 additional keys through page switch

– 2 independent control keys are used for fast

switch pages

– Programmable for Shared Line, BLF List, BroadSoft Group, Call Park, Conference, Forward, Group pickup Group listening, LDAP, Pick UP, XML Browser, Zero-SP-Touch……

Physical Feature

– Wall mountable

– Stand with 2 adjustable angles

– Expansion module (≤2) is powered by the host phone

– Supports up to 6 modules daisy-chain

– 2xRJ12(6P6C)ports for data in and out

– Dimension (W*D*H*T): 127mm x 213mm x 167mm x 45mm

– Applies to Yealink SIP-T46S/G and SIP-T48S/G IP Phone

– Operating temperature: -10~50°C

– Operating humidity: 10-95%

Package Features

– Qty/CTN: 10 PCS

– N.W/CTN: 6.7 kg

– G.W/CTN: 7.6 kg

– Giftbox size: 237mm x 154mm x 100mm

– Carton Meas: 520mm x 317mm x 247mm
