Ada Lovelace architecture
The new NVIDIA® Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics.
Double Ball Bearing Fan
Adopts with 3 x 100mm double ball bearing round fans. Compare to traditional 90mm fans, offer 40% more airflow and gain 55% air pressure. In addition the round fan blade converge the airs to enhance thermal performance.
Thermal Module
- Fans
3x 100mm double ball bearing offers 70,000+hours lifespan - Giant Heatsink
Dense fins greatly increase the heat dissipation area - 7x Heatpipes
Adopts 7 x Φ=6mm heatpipes to conduct heat to the fin - Copper Base
Direct contact with GPU to efficiently transfer heat
Stamping Backplate
- Metal Backplate
Strength the graphics card structure to prevent sag. Aluminum to accelerate heat transformation
- Air Vents
To allow airflow to heat dissipation
-
VGA Support Kits Included
- Anti-Graphics Card sag
- Simple to set up and effective
- Invisible Design
-
Optimized Size & Chassis compatibility

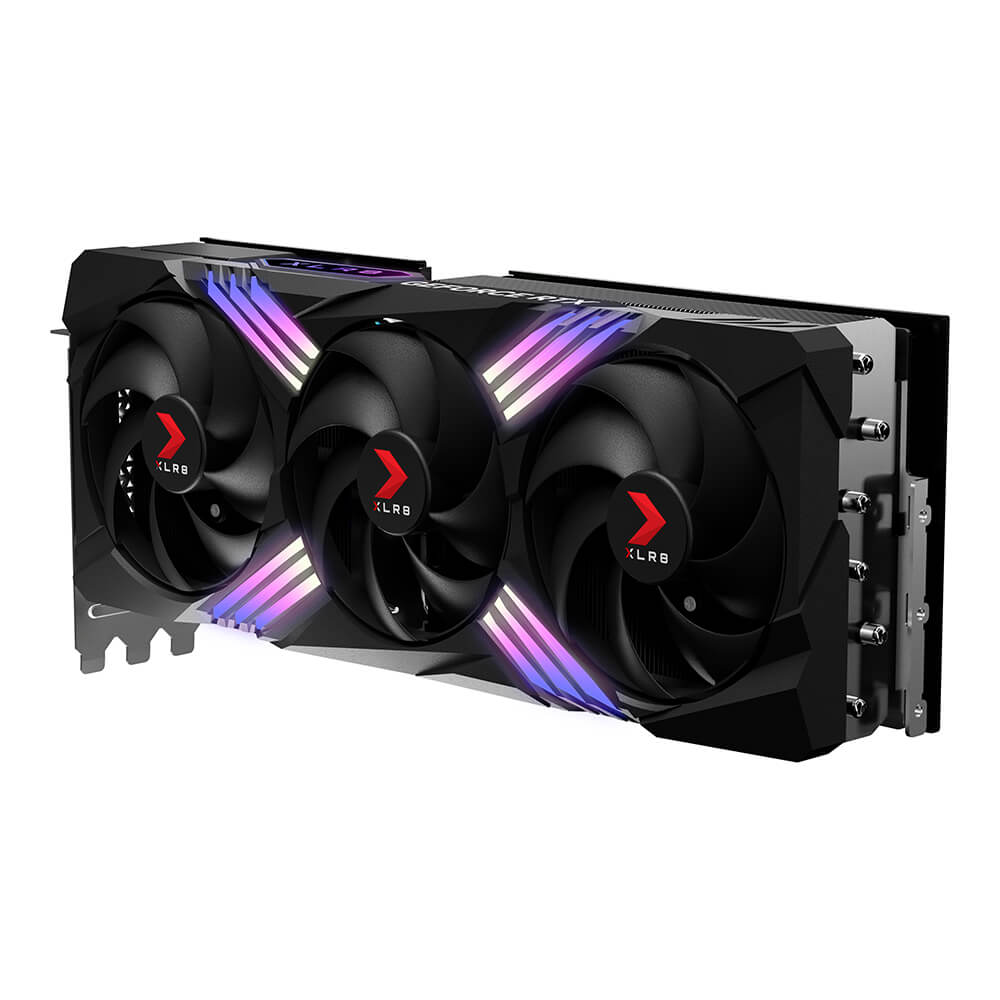

PNY GeForce RTX 4070 Ti compatibles with the main steam ATX full tower chassis in the market by decent size.
VelocityX Overclocking Software
PNY’s VelocityX Overclocking Software allows you to monitor critical stats, like Core Clock, Memory Clock, Core Temperature, Fan Speed, Core Voltage, Power Usage, Core Usage, and Memory Usage in real time, generating invaluable intel that you can leverage to further fine-tune and customize your settings to master your system and take your gaming to the next level.Utilizes NVIDIA reference design
for superior component quality, signal compatibility, and PCB compliance.
- Superior component quality with NVIDIA-approved components
- Guaranteed signal compatibility with original standard circuit design
- Fully compliant with NVIDIA PCB specifications for optimal performance
Specification
-
NVIDIA® CUDA Cores7680
-
Clock Speed2310 MHz
-
Boost Speed2670 MHz
-
Memory Speed (Gbps)21 Gbps
-
Memory Size12GB GDDR6X
-
Memory Interface192-bit
-
Memory Bandwidth(GB/sec)504 Gbps
-
TDP285 W
-
NVLinkNot Supported
-
Outputs3x DisplayPort 1.4, HDMI 2.1
-
Multi-ScreenUp to 4
-
Resolution7680 x 4320 @120Hz (Digital)
-
Power InputOne 16-Pin (One 16-pin to Two 8-pin)
-
Bus TypePCI-Express 4.0 x16
-
Card Dimensions332.8 x 136.4 x 66.5 mm; 3.3 Slot
-
Box Dimensions405 x 199 x 103mm
-
Warranty3 Years
-
NoteAccessories: PCIe5 12VHPWR Adapter & VGA Support Kits
