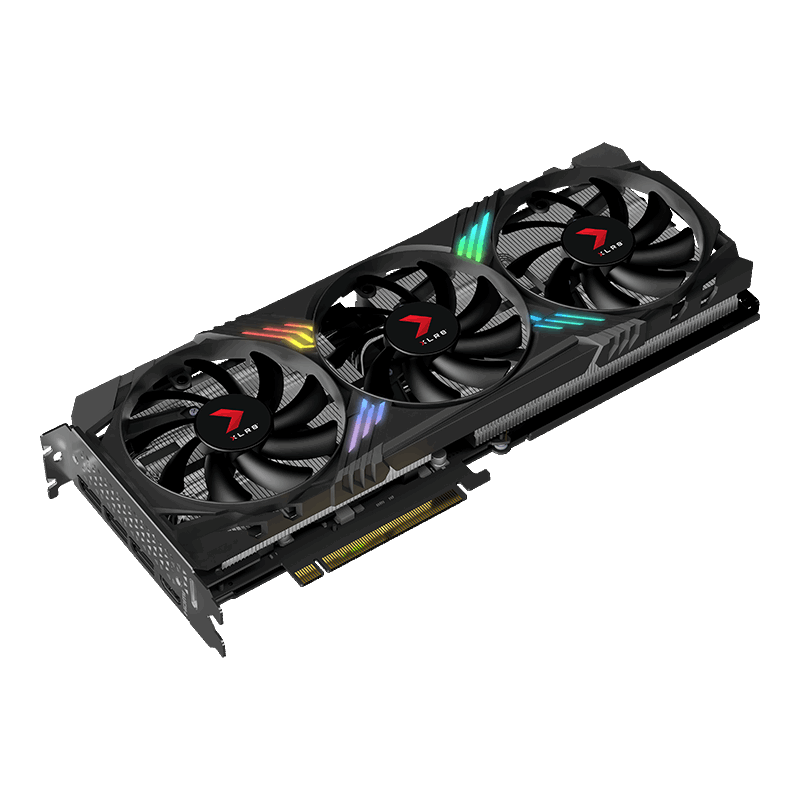

PNY GeForce RTX 4070™ SUPER 12GB XLR8 Gaming VERTO™ EPIC-X RGB™ Overclocked Triple Fan DLSS 3
Further With AI,
Faster on RTX
Get next-level AI performance on GeForce RTX
Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and revolutionary capabilites. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.
Overview
NVIDIA®️ GeForce RTX™️ 40 Series GPUs are beyond fast for gamers and creators. They’re powered by the ultra-efficient NVIDIA Ada Lovelace architecture which delivers a quantum leap in both performance and AI-powered graphics. Experience lifelike virtual worlds with ray tracing and ultra-high FPS gaming with the lowest latency. Discover revolutionary new ways to create and unprecedented workflow acceleration.
Supercharge your PC with the NVIDIA®️ GeForce RTX™️ 4070 SUPER, built with the ultra-efficient ADA Lovelace architecture and up to 12GB of superfast G6X memory. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create and much more.
The new NVIDIA®️ Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics. It has new Streaming Multiprocessors, 3rd generation Ray Tracing Cores, and 4th generation Tensor Cores. It’s built on a new custom TSMC 4N process, runs with blazing fast clocks, and features a large L2 cache. It enables fast ray tracing, new ways to create, and much more. Featuring electrifying EPIC-X RGB™️ lighting, for the ultimate controllable lighting experience with endless ARGB lighting possibilities.
KEY FEATURES
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- Dedicated Ray Tracing Cores
- Dedicated Tensor Cores
- NVIDIA DLSS 3
- SFF-Ready Enthusiast GeForce Card
- Game Ready and NVIDIA Studio Drivers
- NVIDIA® GeForce Experience™
- NVIDIA Broadcast
- NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- PCI Express® Gen 4
- Microsoft DirectX® 12 Ultimate
- Vulkan RT APIs, Vulkan 1.3, OpenGL 4.6
- HDCP 2.3
- DisplayPort 1.4a, up to 4K at 240Hz or 8K at 60Hz with DSC, HDR
- As specified in HDMI 2.1a: up to 4K 240Hz or 8K 60Hz with DSC, Gaming VRR, HDR
- One 16-pin to Two 8-pin Power Cable Included
MINIMUM SYSTEM REQUIREMENTS
- PCI Express-compliant motherboard with one dual-width x16 graphics slot
- Two 8-pin supplementary power connectors
- 700 W or greater system power supply
- Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
- Internet connection
PNY Part Number |
VCG4070S12TFXXPB1-O |
---|---|
UPC Code |
751492786407 |
CUDA Cores |
7168 |
Clock Speed |
1980 MHz |
Boost Speed |
2505 MHz |
Memory Speed (Gbps) |
21 |
Memory Size |
12GB GDDR6X |
Memory Interface |
192-bit |
Memory Bandwidth (GB/sec) |
504 |
TDP |
220 W |
NVLink |
Not Supported |
Outputs |
DisplayPort 1.4a (x3), HDMI 2.1 |
Multi-Screen |
4 |
Resolution |
7680 x 4320 @120Hz (Digital)3 |
Power Input |
16-pin (One 16-pin to Two 8-pin) |
Bus Type |
PCI-Express 4.0 x16 |
Card Dimensions |
12.01″ x 4.7″ x 1.57″; 2 Slot |
Box Dimensions |
14.96″ x 7.48″ x 2.56″ |
